| ₹ 59750.0 includes GST and import duties. | |
| B2B customers can avail ₹ 9111.88 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Wooden Camera 12G-SDI Distribution Amplifier ... Overview

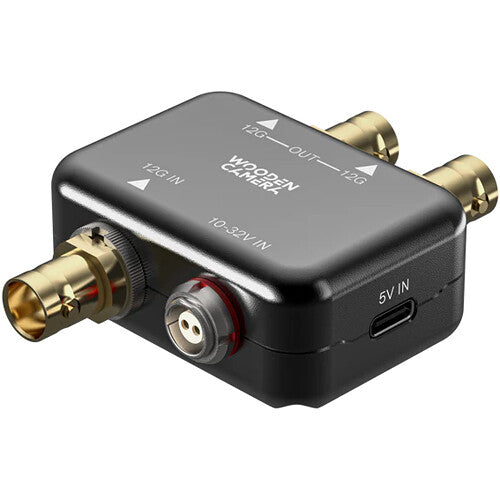

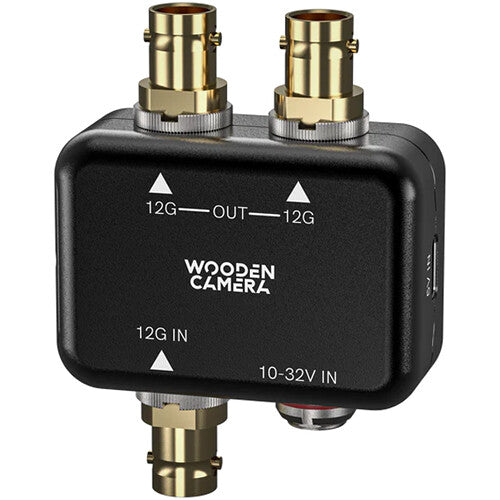

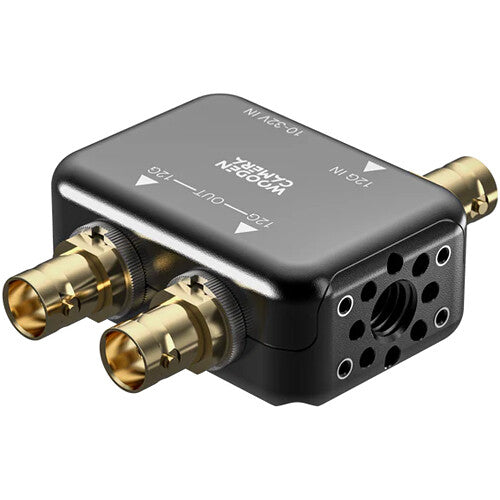

The 4K 12G-SDI Distribution Amplifier from Wooden Camera is designed for broadcast, live events, and professional productions that need to split and extend 12G-SDI signals with zero signal loss. The compact unit features one 12G-SDI input and two 12G-SDI outputs that support up to UHD 4K60 10-bit HDR video, and it provides reclocking and equalization, so there is no loss or jitter over long cable extensions.

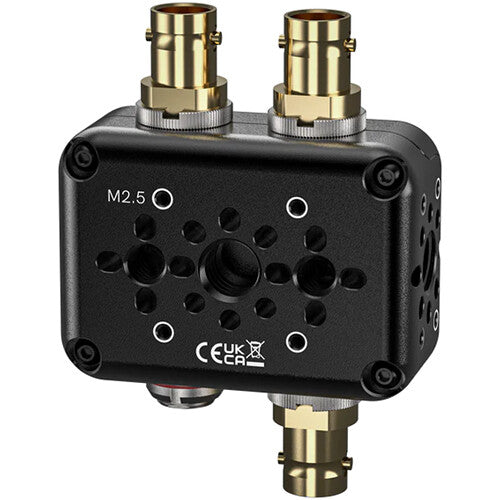

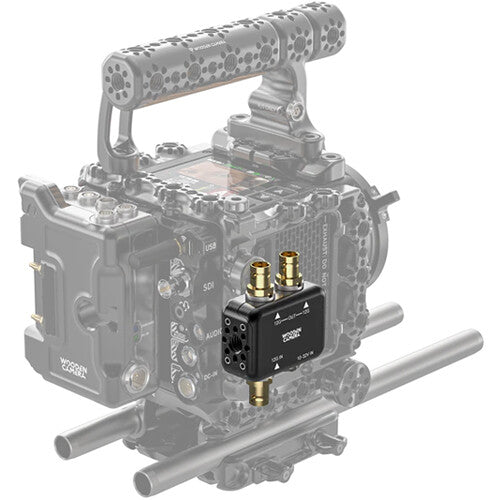

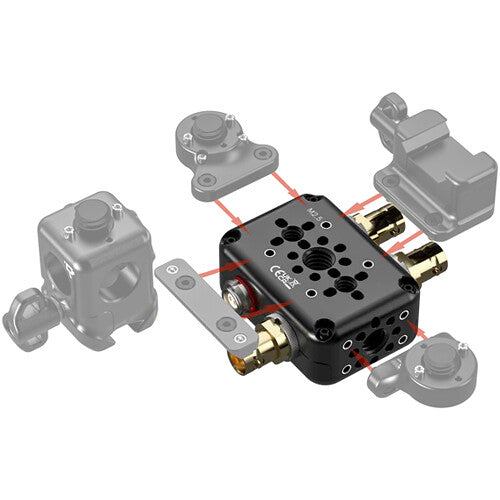

The unit is powered using a separately available power source and cable, and options include a 2-pin 10-32 VDC LEMO-type input and a 5 VDC USB-C input. You can mount the unit onto a variety of brackets, mounts, rails, or adapters using the 1/4"-20, 3/8"-16, or M12 anti-twist threads around the sides.

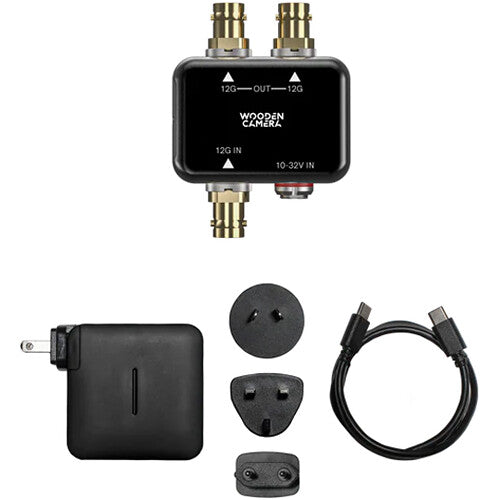

Items Included
- Wooden Camera 4K 12G-SDI Distribution Amplifier (1x2)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera 12G-SDI Distribution Amplifier ... Specs
| Inputs |
1 x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
|
| Embedded Audio |
SDI Input
|
| Outputs |
2x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
|
| Video Format |
SDI (10-Bit)
4096 x 2160: 60 fps 3840 x 2160: 60 fps |
| Inputs |
1 x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
|
| Embedded Audio |
SDI Input
|
| Outputs |
2x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
|
| Other I/O |
1x USB-C Input
|
| Reclocking |
Yes
|
| HDR Support |
Yes
|
| HDCP Support |
No
|
| EDID Support |
No
|
| Video Format |
SDI (10-Bit)
4096 x 2160: 60 fps 3840 x 2160: 60 fps |
| Power I/O |
1x LEMO 2-Pin (10 to 32 VDC) Input
|
| ESD Protection |
Yes
|
| Certifications |
CE, UKCA
|
| Material of Construction |
Metal
|
| Dimensions |
2.8 x 2.1 x 0.9" / 71.7 x 54.0 x 23.0 mm
|
| Weight |
1.87 oz / 53.07 g
|
| Package Weight |
0.335 lb
|
| Box Dimensions (LxWxH) |
5 x 4.6 x 2.3"
|
