Description

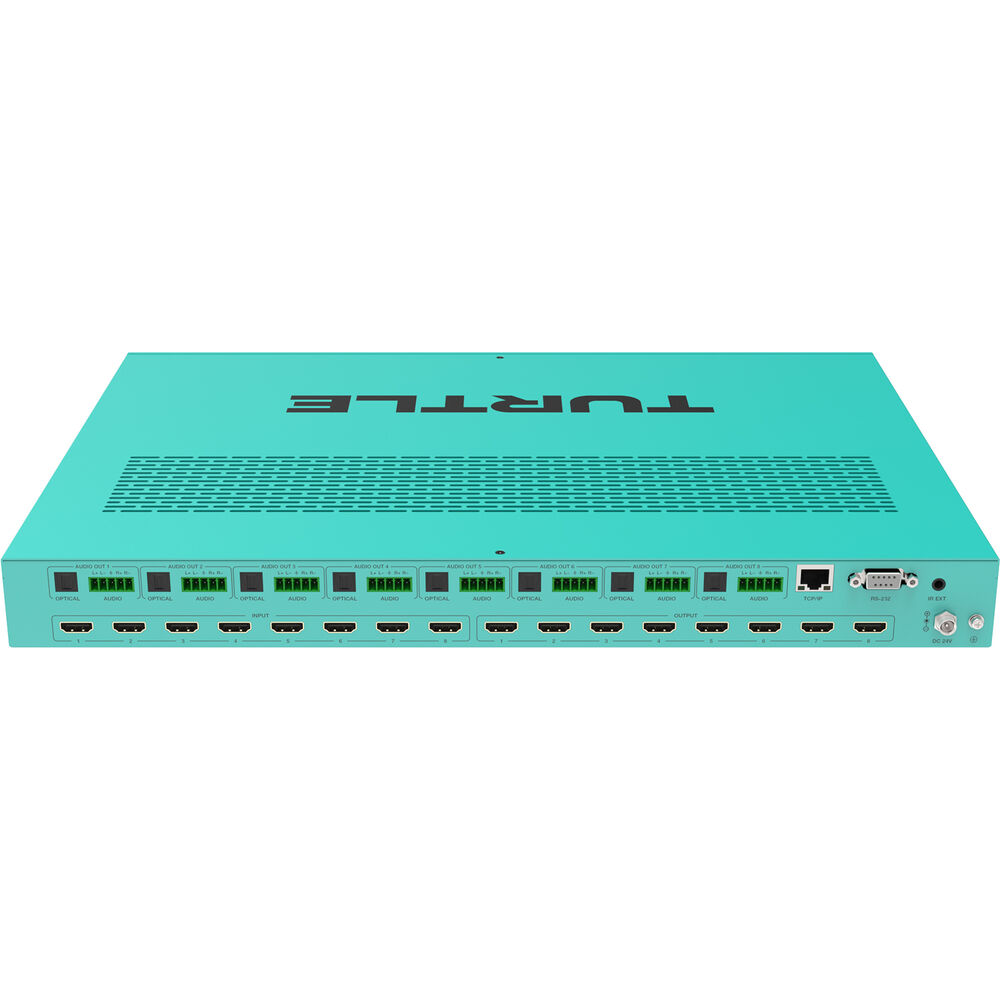

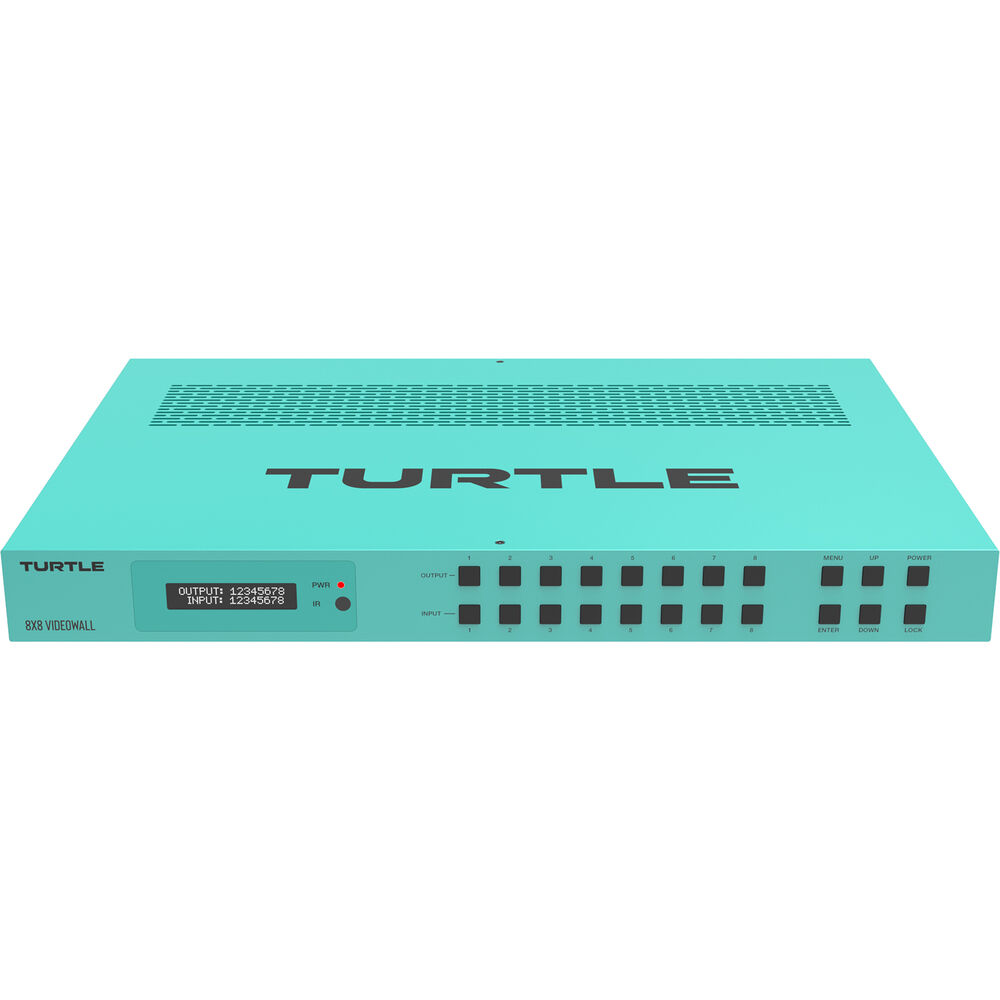

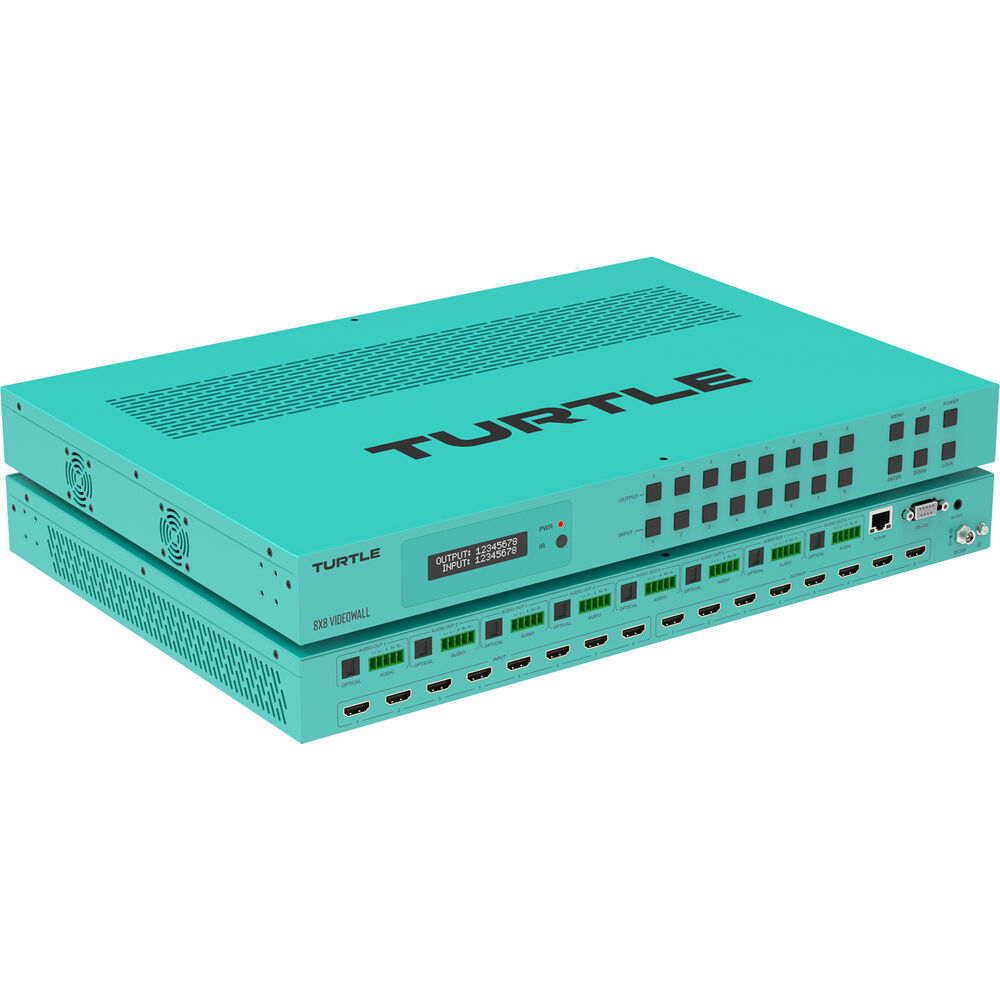

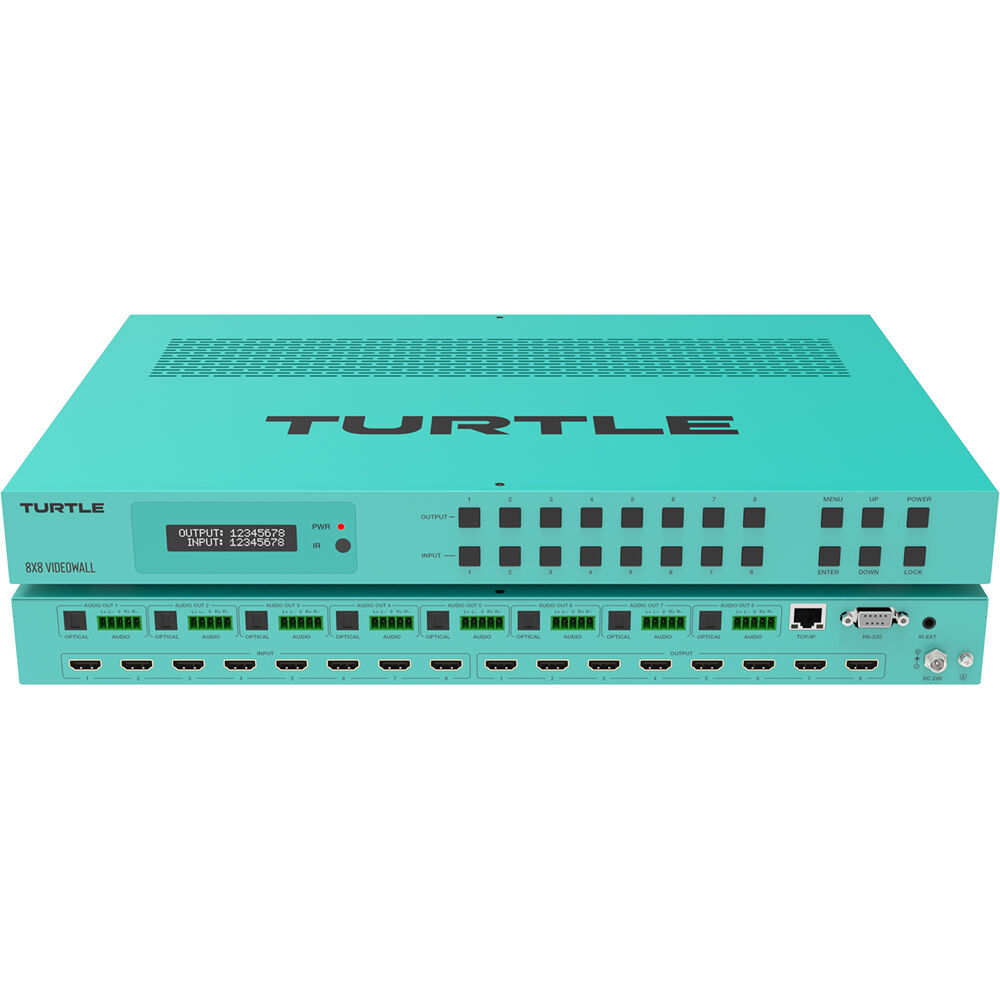

Turtle AV TAV-MX88VW Overview
The 8x8 4K60 Video Wall, Matrix & Multiviewer from Turtle AV is a versatile all-in-one solution providing seamless switching, multichannel audio, and CEC control with preset layouts. Each of the eight HDMI 2.0 inputs and outputs can handle resolutions up to 4K60 with a 4:4:4 color space and 8-, 10-, and 12-bit color depth at 18 Gb/s. Audio can be easily embedded and de-embedded, and eight L/R audio outputs provide analog connectivity for sending audio to other devices that support analog audio if needed. The TAA-compliant device offers a sleek and elegant aqua-blue design housed in a metal enclosure.
All-in-One Performance
Switch effortlessly between Video Wall, 8x8 Matrix, or Multiview configurations, all in a single, powerful device tailored to your needs.
Powerful Video Wall
Build impressive video walls with dynamic grids, or create unique layouts like panoramas and combined zones for mixed displays. With support for a variety of modes, this system provides the flexibility you need for command centers, public spaces, live events, and more, all in stunning 4K60 resolution.
8x8 Matrix Functionality
Route any input to any output or create multiple simultaneous configurations with robust 8x8 matrix functionality.
Audio Embedding & De-Embedding
Seamlessly embed or de-embed audio via the optical or Phoenix connectors for total flexibility in any A/V setup.
Seamless Switching
Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.
Scaling Flexibility
Individually scale each source with precision, supporting resolutions up to 4K60 with 4:4:4 color, each output having individual downscaling control.
Easy Setup via WebGUI or Front Buttons
Set up and manage configurations effortlessly using the intuitive WebGUI, or go fully hands-on with the front panel controls.
API Support
Integrate easily with third-party systems via robust API support for advanced control and automation.
HDCP 2.2 Compatibility & Advanced EDID Management
Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices. Manage EDID with ease using 12 factory-defined settings, two user-defined modes, and four copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.
All-Metal Chassis Construction
Housed in an all-metal chassis for maximum ruggedness, the aqua-blue device is sleek and elegant enough to mount in full view with all your other production gear.
TAA Compliant
The TAA-compliant device meets U.S. government standards for procurement. This ensures that it can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Items Included
- Turtle AV 8x8 4K60 Video Wall, Matrix & Multiviewer
- Power Adapter
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Turtle AV TAV-MX88VW Specs
Key Specs
| Inputs |
8 x HDMI (HDMI 2.0) Female
|
| Embedded Audio |
HDMI Input: 8-Channel
HDMI Output: 8-Channel |
| Outputs |
8x HDMI (HDMI 2.0) Female
8x Block 5-Pin (Stereo Analog) 8x TOSLINK (S/PDIF) Female |
| Video Format |
HDMI
3840 x 2160: 24/30/60 fps 1920 x 1080p: 60/50 fps 1280 x 720p: 60/50 fps 720 x 480p: 60/50 fps 720 x 480i: 60/50 fps |
Interfaces
| Inputs |
8 x HDMI (HDMI 2.0) Female
|
| Embedded Audio |
HDMI Input: 8-Channel
HDMI Output: 8-Channel |
| Outputs |
8x HDMI (HDMI 2.0) Female
8x Block 5-Pin (Stereo Analog) 8x TOSLINK (S/PDIF) Female |
| Other I/O |
1x RJ45 (Gigabit Ethernet) Input/Output
1x DE-9/DB-9 (RS-232) Input/Output 1x 1/8" / 3.5 mm (IR) |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Manual Control
|
| Audio Decoding |
DTS Digital Surround, DTS-HD High-Resolution, DTS-HD Master Audio, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, LPCM
|
Transmission
| Video Format |
HDMI
3840 x 2160: 24/30/60 fps 1920 x 1080p: 60/50 fps 1280 x 720p: 60/50 fps 720 x 480p: 60/50 fps 720 x 480i: 60/50 fps |
| Audio Format |
Analog
S/PDIF |
| Audio Channels |
2.0-Channel
7.1-Channel |
Power
| Power I/O |
1x Barrel (24 VDC at 3.75 A) Output
|
| Power Consumption |
Power Supply: 100 to 240 VAC (70 W)
|
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Material of Construction |
Metal
|
| Dimensions |
17.3 x 11.8 x 1.8" / 440.0 x 300.0 x 44.5 mm
|
| Weight |
8.71 lb / 3.95 kg
|
Packaging Info
| Package Weight |
14.7 lb
|
| Box Dimensions (LxWxH) |
20.4 x 13.1 x 5.1"
|
