Description
Turtle AV USB-C 4K60 Extender Kit Overview

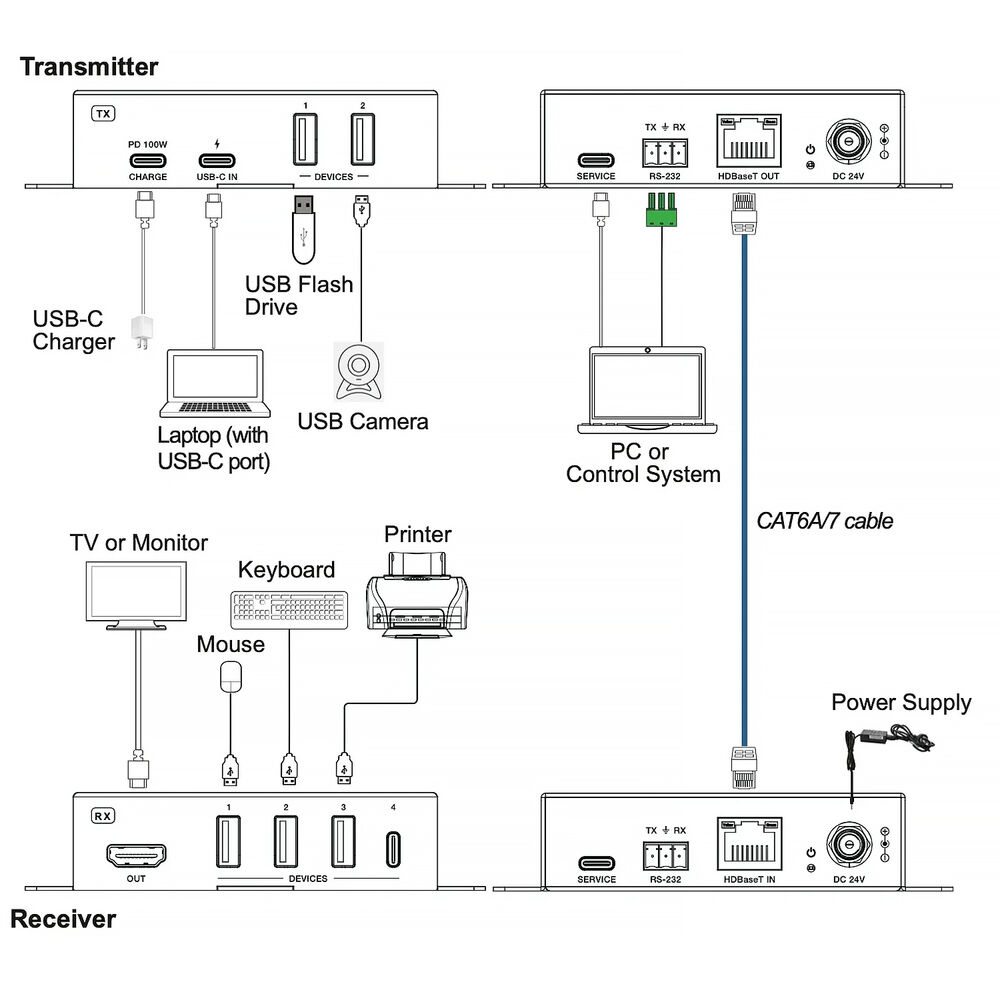

The USB-C 4K60 Video and USB 2.0 Extender Kit from Turtle AV equips you with transmitter and receiver units to deliver high-speed USB and uncompressed video to the destination of your choice. The kit supports up to 4K60 video and USB 2.0 signals, which can be delivered up to 130' away, or 4K30 video and USB 2.0 signals up to 230' away. USB-C and USB-A ports allow you to integrate your laptop, mobile device, keyboard, and other peripheral devices into a BYOD conference room setup. There is a 100W PD charging port that allows you to integrate an external USB power brick and pass-through power to the USB-C device connection. Power to the system itself is delivered via PoC protocol.
Items Included
- Turtle AV USB-C 4K60 Video and USB 2.0 Extender Kit

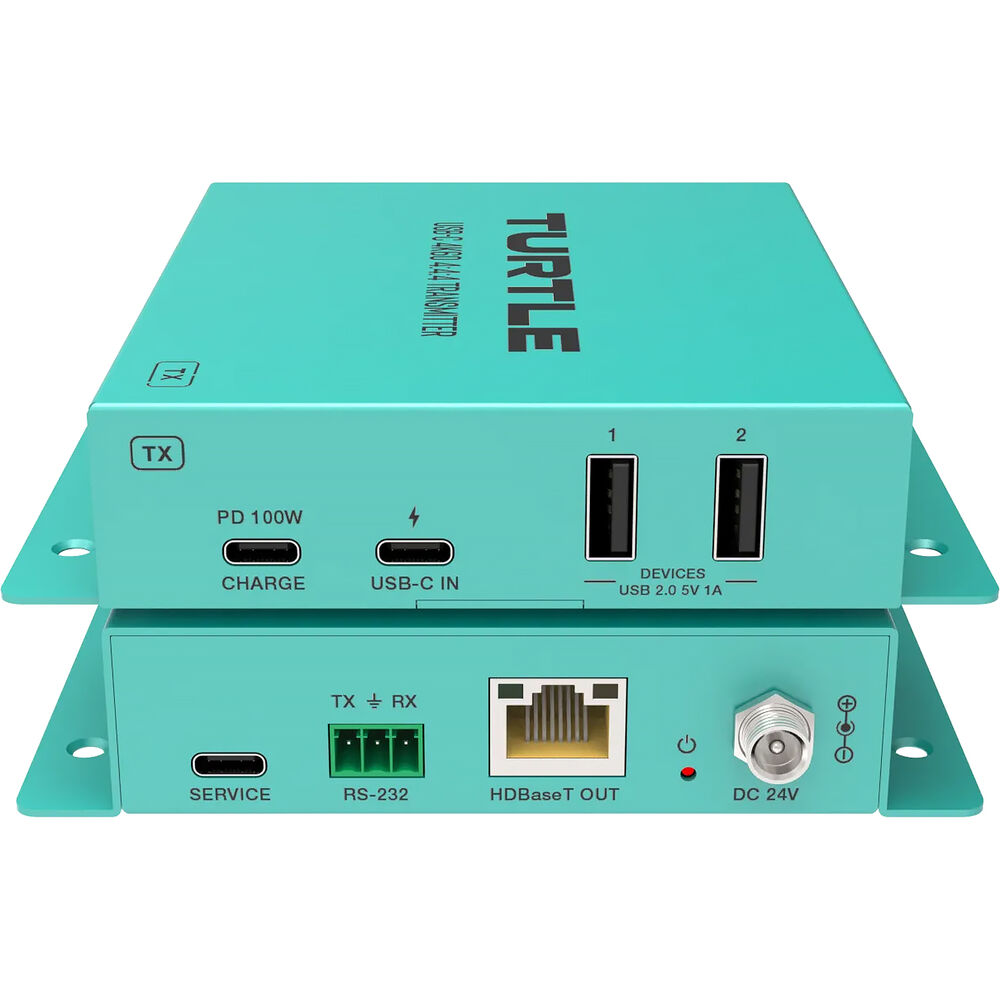

- Transmitter

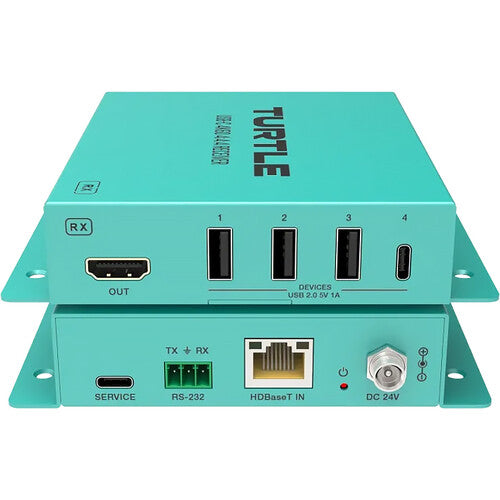

- Receiver
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Turtle AV USB-C 4K60 Extender Kit Specs
| Inputs |
1x USB-C
|
| Embedded Audio Input |
USB-C
|
| Outputs |
1x RJ45 (HDBaseT)
|
| Transmitter Other I/O |
2x USB-A Device
1x USB-C Update 1x Block 3-Pin RS-232 |
| Inputs |
1x RJ45 (HDBaseT)
|
| Outputs |
1x HDMI (HDMI 2.0b)
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x USB-C Device
3x USB-A Device 1x USB-C Update 1x Block 3-Pin RS-232 |
| HDR Support |
Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
| HDCP Support |
Yes: Version 2.3
|
| Max Transmission Distance |
DCI 4K at 60 Hz:
131.2' / 40 m DCI 4K at 30 Hz: 229.7' / 70 m (via Cat 6a/7) |
| Video Format |
HDMI (8-Bit 4:4:4):
4096 x 2160: 60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS-HD High Resolution, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
|
| Supported Cable Types |
Cat 6 or higher
|
| Transmitter Power I/O |
1x Barrel (24 VDC at 2.7 A) Input
|
| Receiver Power I/O |
1x Barrel (24 VDC at 2.7 A) Input
|
| PoE Support |
PoE Proprietary
|
| Transmitter Power Consumption |
100 to 240 VAC (51.36 W)
|
| Receiver Power Consumption |
100 to 240 VAC (51.36 W)
|
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 10 to 90% Humidity
|
| Transmitter Dimensions |
4.7 x 4.4 x 1" / 120 x 113 x 25.5 mm
|
| Receiver Dimensions |
4.7 x 4.4 x 1" / 120 x 113 x 25.5 mm
|
| Transmitter Weight |
12.5 oz / 353 g
|
| Receiver Weight |
12.4 oz / 352 g
|
| Package Weight |
4.195 lb
|
| Box Dimensions (LxWxH) |
12.3 x 6.7 x 3.1"
|
