Description
BZBGEAR BG-4K-88MA Overview
Smart Switching, Stunning 4K - Meet Your HDMI Matrix Switcher BG-4K-88MA
Smarter AV Routing - BZBGEAR's NEW 4K HDMI Matrix Line | ISE 2025
Equipped with eight HDMI 2.0 inputs and eight HDMI 2.0 outputs, the BG-4K-88MA 8x8 UHD 4K HDMI 2.0 Matrix Switcher from BZBGear offers seamless matrix switching with the press of a button. Supporting resolutions up to UHD 4K60 with 4:4:4 color space, the versatile independent routing and IR matrixing device uses HDMI 2.0 connectivity with solid 18 Gb/s performance.
The unit can downscale video to 1080p on all outputs, offering HDCP 2.2 compliance, as well as EDID management. It features WebGUI management for working with IP signals and comes with an IR remote control that allows you to quickly access frequent functions when the unit is not within manual reach. It comes with a set of mounting ears for easy and quick installation.
Enhanced Front-Panel Control

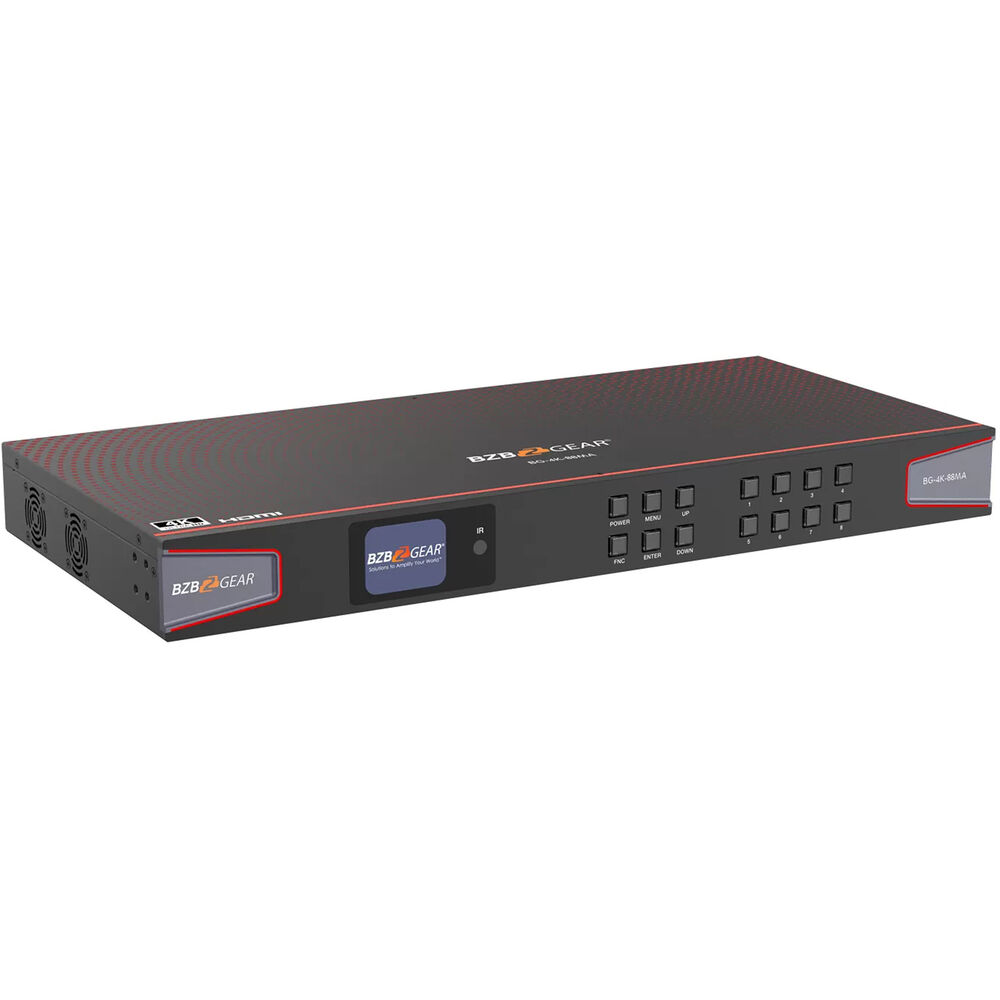

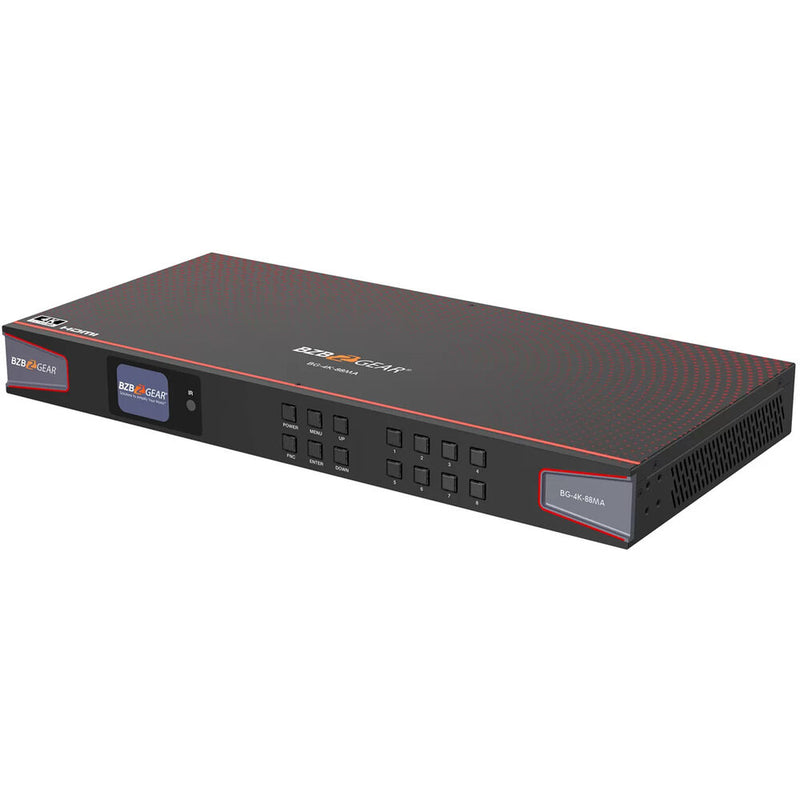

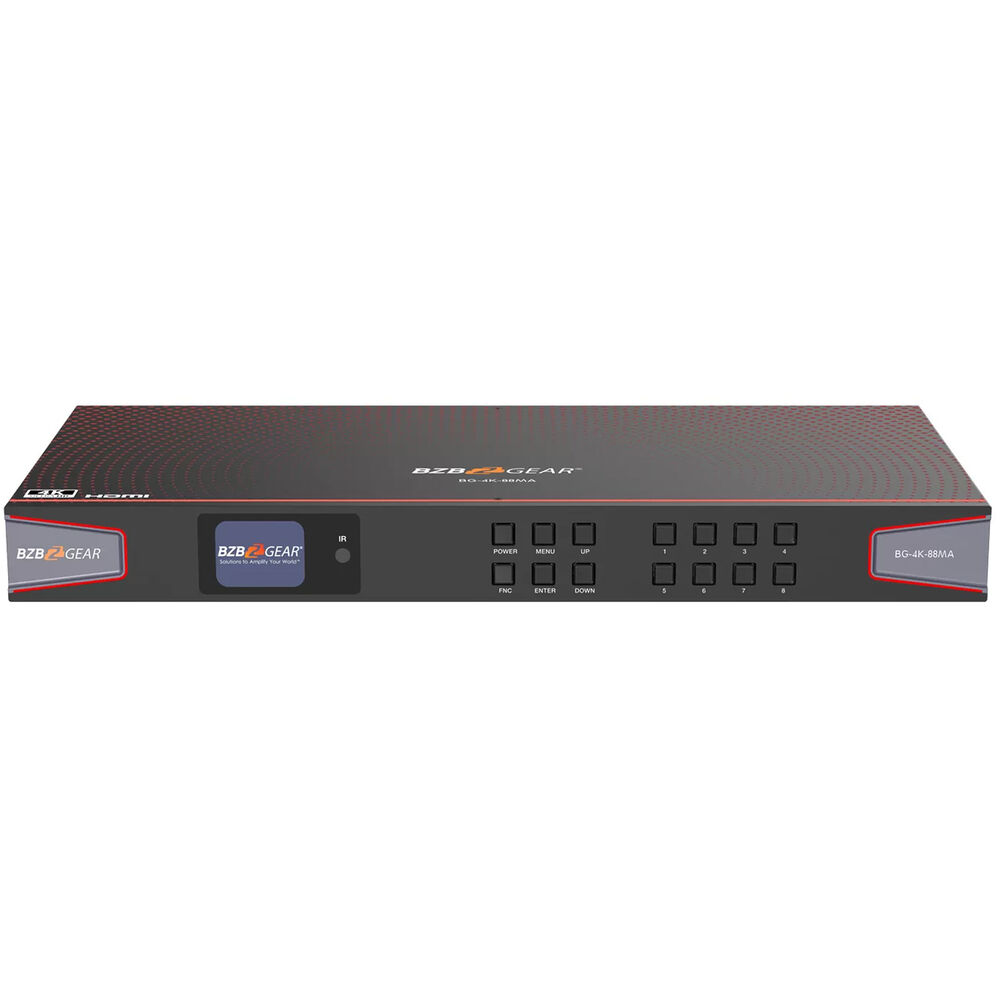

Featuring a vibrant full-color LCD screen, it offers a crisp and detailed view of the system's menu. Navigation is both seamless and intuitive, enhanced by strategically placed backlit buttons conveniently located to the right of the display.
Intuitive HDMI Configuration

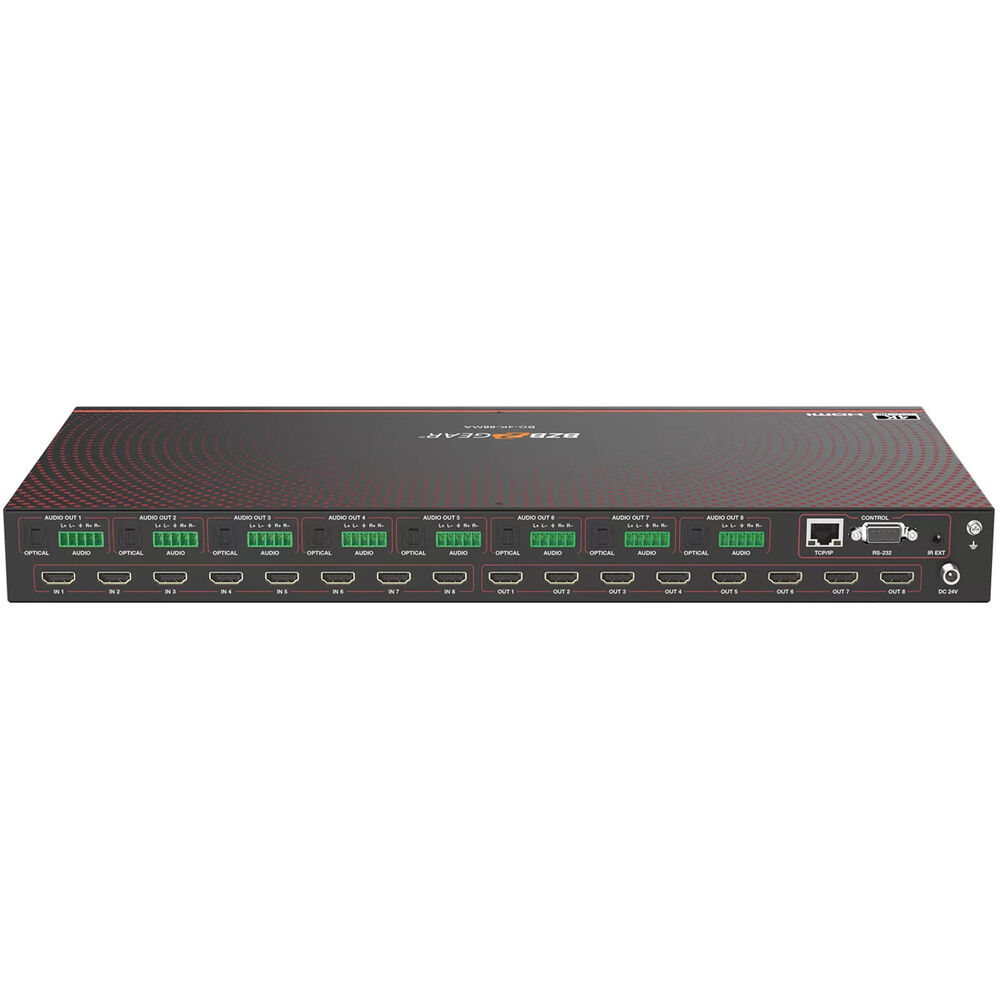

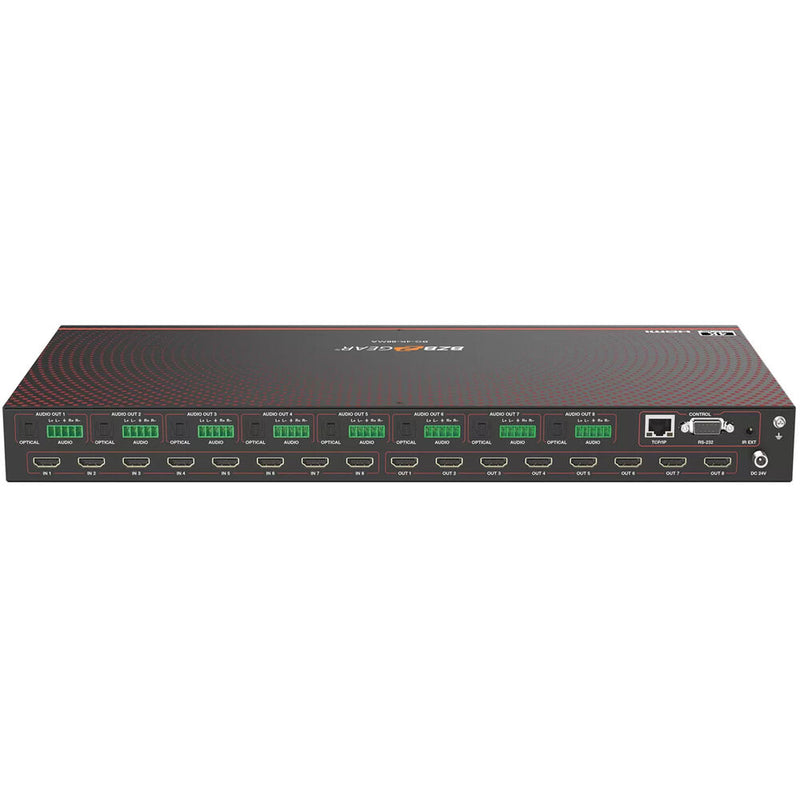

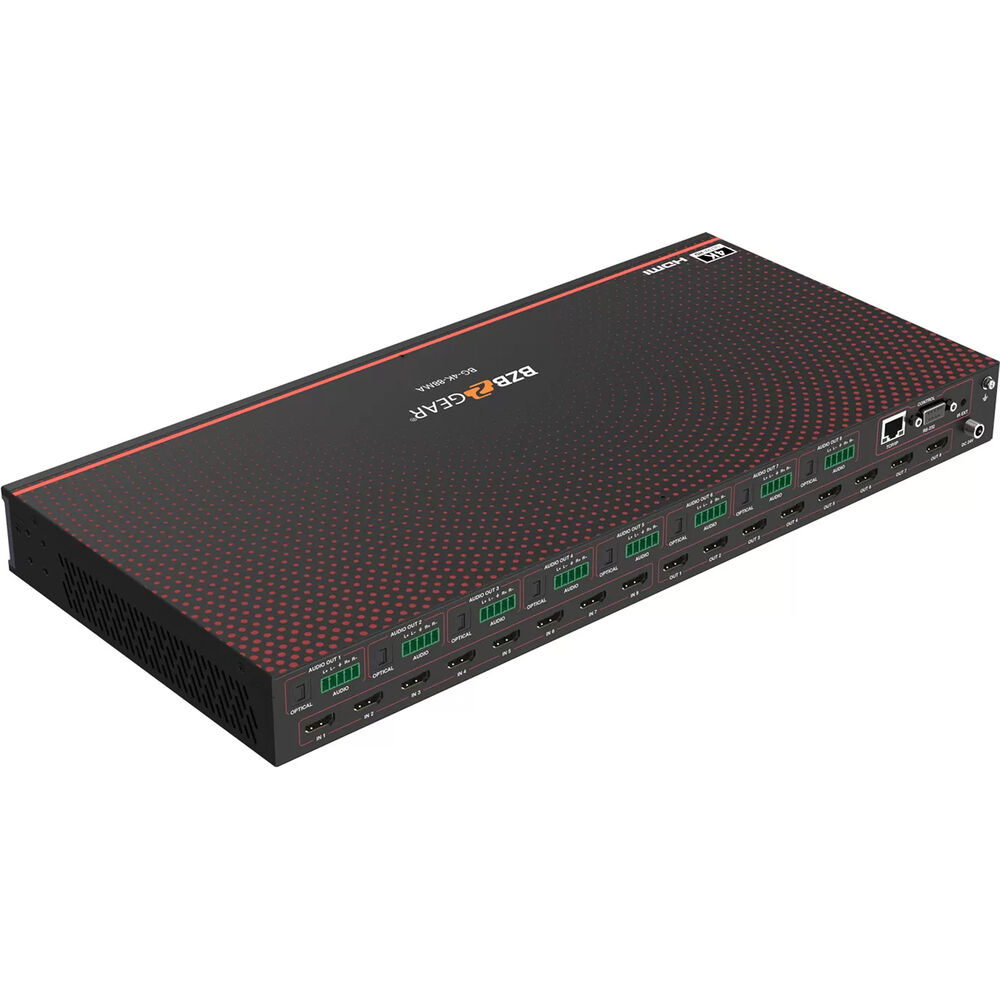

The back panel is equipped with eight HDMI input ports and eight HDMI output ports, all clearly labeled and numbered for easy identification. These HDMI ports are also readily accessible within the WebGUI and control software. Each port supports scalable resolutions, with a maximum capability of 4K60 with 4:4:4 color space support.
Streamlined Audio Support
Seamless integration with devices like amplifiers in professional AV setups enables support with a wide range of audio formats, ensuring compatibility with diverse systems. The HDMI audio pass-through further enhances performance by delivering high-quality sound in advanced formats, including LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS.
Advanced Audio Matrixing
Advanced audio matrixing offers unparalleled flexibility in routing and managing audio signals. With the ability to independently route and control each audio channel, you can tailor your setup to meet your exact requirements. This ensures seamless integration and optimal audio performance in any professional AV environment.
Serial & Advanced IR Control with API
The switcher allows you to send commands via RS-232 and IP, complemented by an intuitive API and third-party drivers for additional control options. The included IR remote is pre-programmed for a user-friendly experience when employing IR control options.
UPC: 850050134794
Items Included
- BZBGEAR BG-4K-88MA 8x8 UHD 4K HDMI 2.0 Matrix Switcher
- 24V, 3.75A Locking Power Adapter
- AC Power Cord (4.9')
- IR Remote
- 12V IR Wideband Receiver Cable (4.9')
- RS-232 Serial Cable (4.9', Male to Female Connectors)
- 4 x 5-pin 3.81mm Phoenix Connector
- 4 x Machine Screw
- 2 x Mounting Ear
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
BZBGEAR BG-4K-88MA Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
4:4:4
|
Input
| Video Inputs |
8x HDMI (2.0) Female
|
| Input Video Format |
HDMI
UHD 4K up to 60 fps |
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
|
Output
| Video Outputs |
8x HDMI (2.0) Female
|
| Output Video Format |
HDMI / RJ45
UHD 4K up to 60 fps |
| Audio Outputs |
8x TOSLINK S/PDIF Female
8x Block 5-Pin S/PDIF Female |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
S/PDIF Analog |
| Embedded Audio Output |
HDMI: 8-Channel (per Output)
RJ45: 8-Channel |
Connectivity
| Other I/O |
1x RJ45 Control, LAN Input/Output
1x 1/8" / 3.5 mm IR Output |
| Digital Audio Decoding |
DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital / AC3, Dolby Atmos, DTS, LPCM, Dolby TrueHD
|
| HDCP Support |
Yes, Version 2.2
|
| HDR Support |
Yes, HDR10/HDR10+/Dolby Vision
|
| DTS Compatibility |
DTS, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Display
| Wireless |
No
|
