Description
BZBGEAR 4K-VP1616PRO Overview

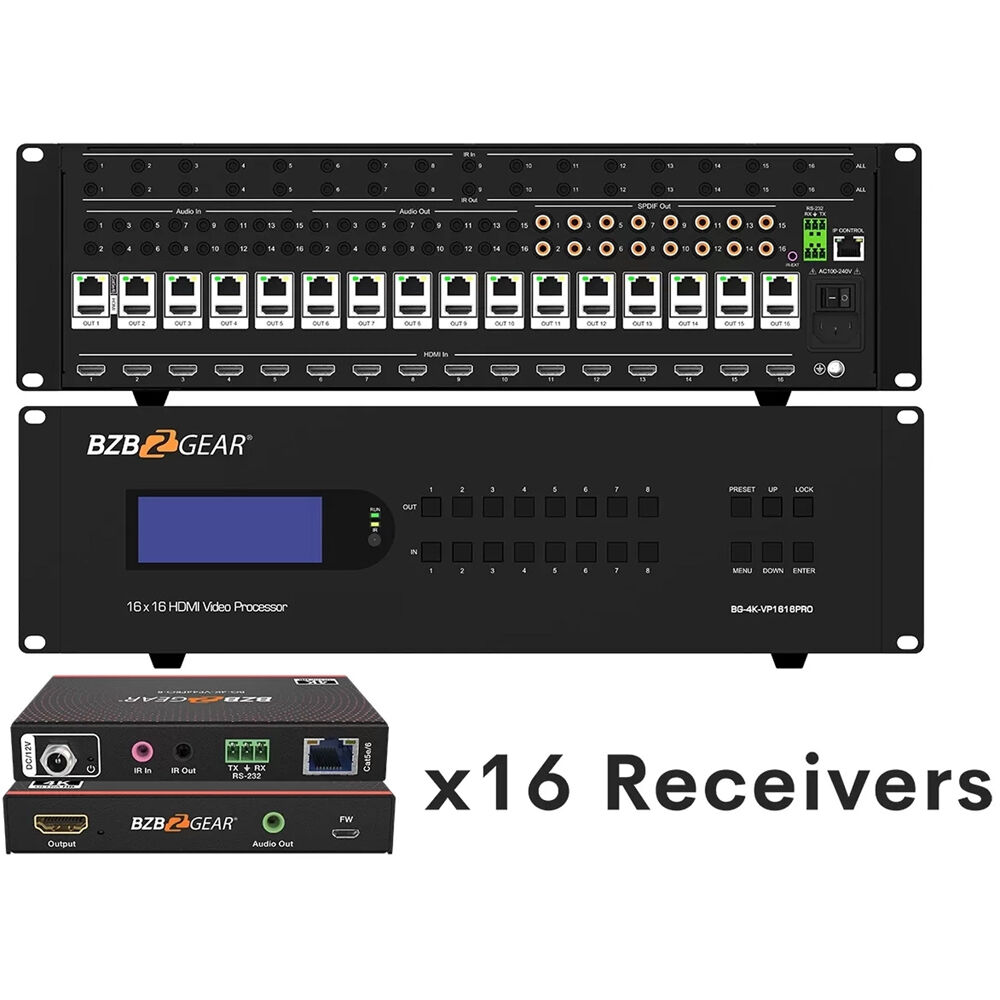

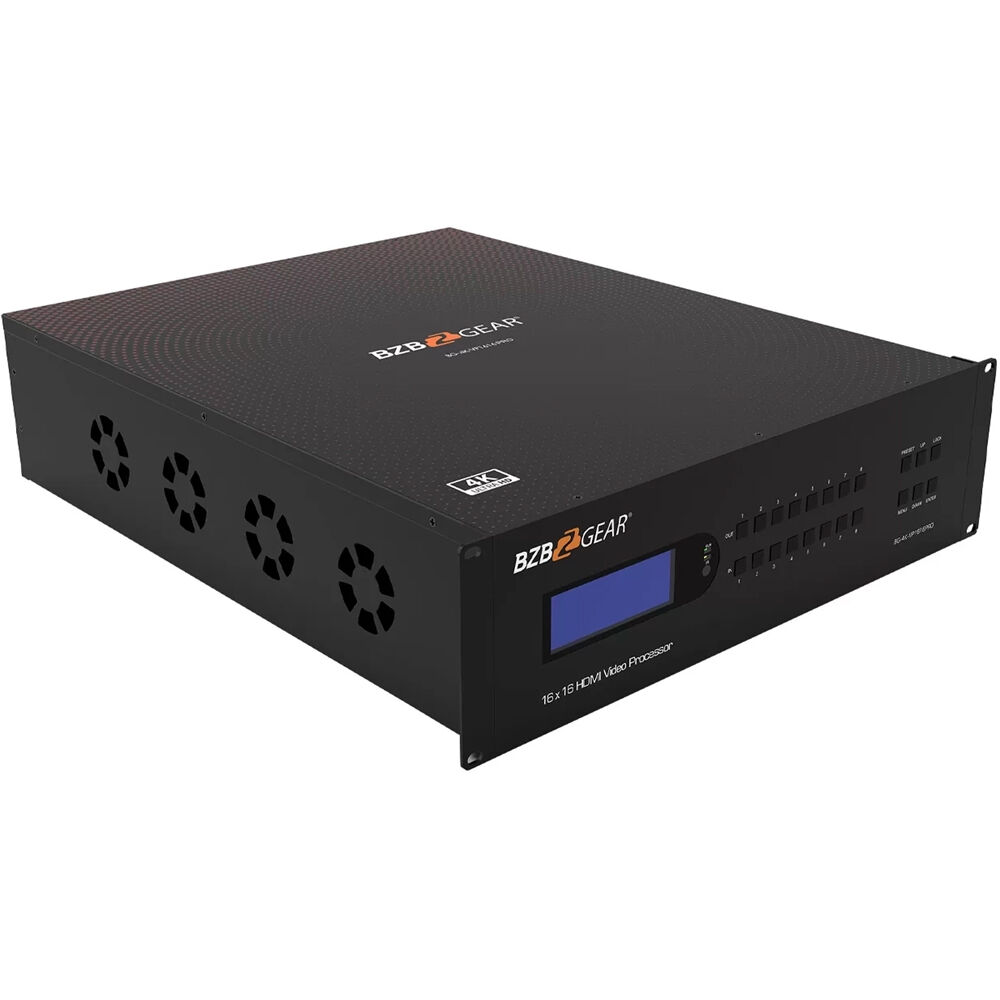

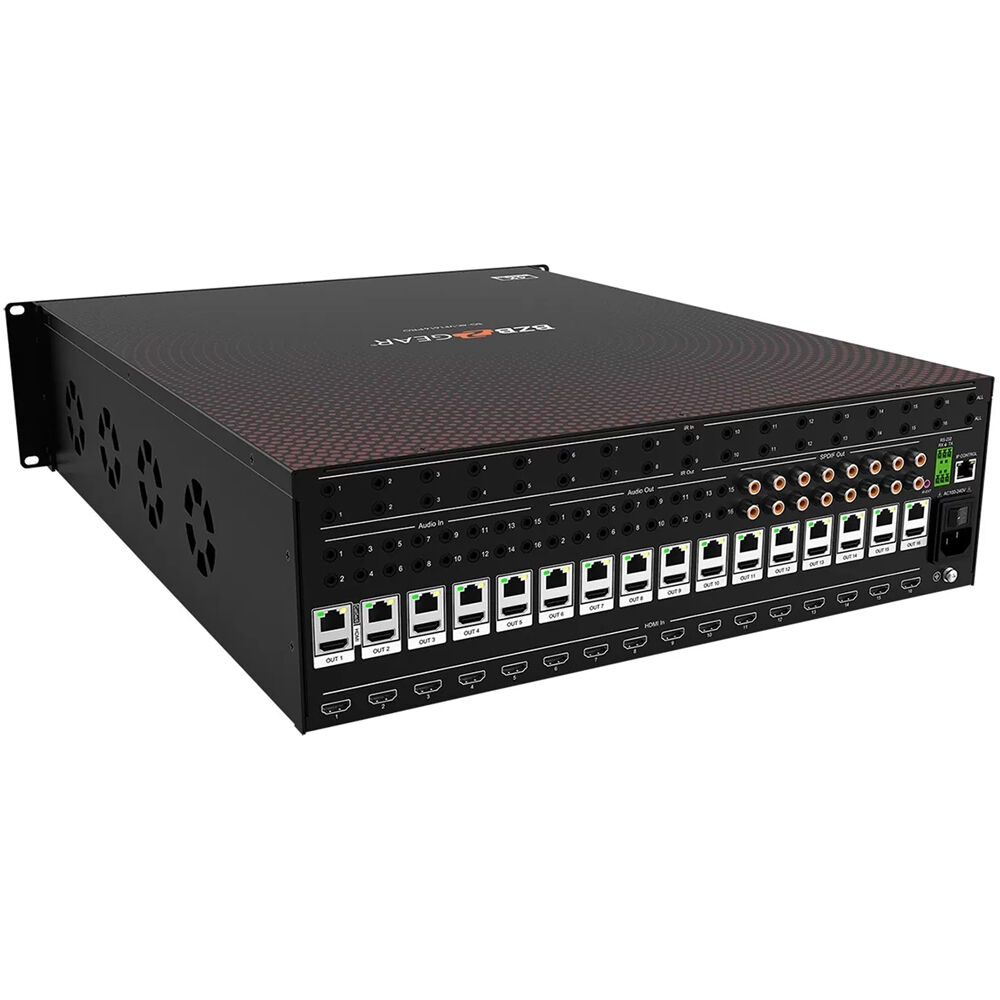

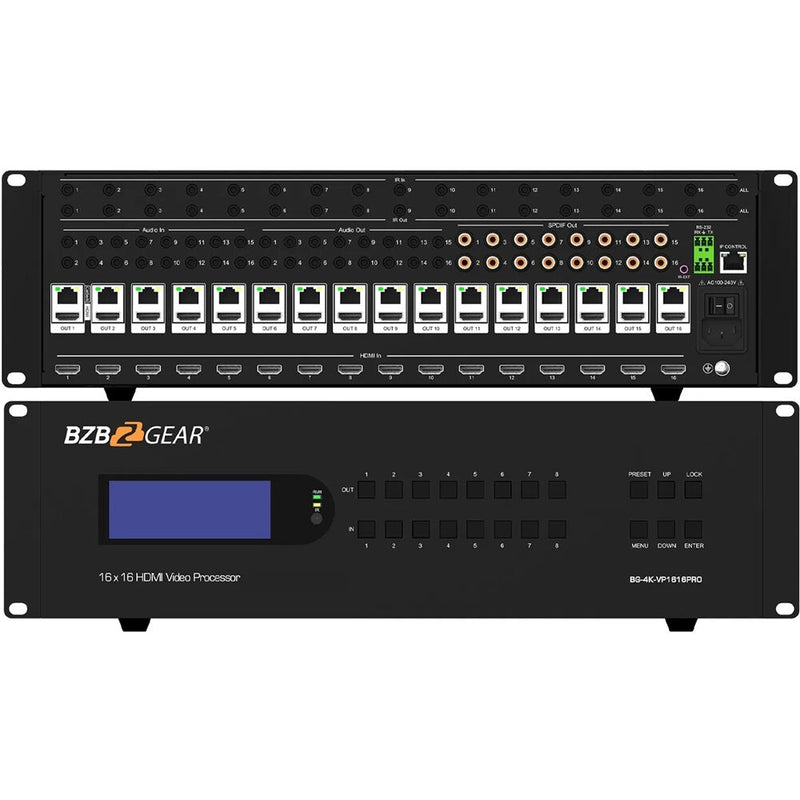

This 16x16 4K Seamless HDMI Matrix Switcher/Video Wall Processor Kit with 16 Receivers from BZBGear stands as a highly adaptable HDMI matrix switcher, video wall processor, and multiviewer, tailored for professional AV setups. Boasting extensive connectivity, it features 16 HDMI inputs, 16 HDMI outputs, and HDMI loop outputs as well as the ability to extend HDMI signals up to 230' via Cat 5 cable to the 16 included receivers. Supporting resolutions up to 4K60 4:4:4 and advanced video processing, it facilitates smooth switching between video sources, creation of 16 x 16 video walls, and simultaneous display of up to 16 sources on a single screen.
With balanced audio extraction and diverse control options, it ensures an immersive experience, ideal for presentations and conferences. A future-proof design, boasting HDCP 2.2 and 1.4 compliance and firmware updates via a micro-USB port, serve as a comprehensive solution for professional AV installations. The unit offers advanced EDID management and has no switching delay or signal loss.
- 16 HDMI inputs, which can be independently routed to 16 HDMI outputs
- Supports multiple video walls at the same time
- Up to 16 sources can be displayed on each output in different layouts
- Supports video wall configurations of up to 7 different modes with each monitor
- HDCP 2.2 compliancy ensures copyright protection
- Control via panel button, remote control, RS-232 control, TCP/IP control
- Supports resolution up to 4K60 4:4:4
- No switching delay or picture loss during transitions
- EDID management: Seamless scaling for the best results
- Supports HDMI audio formats including Dolby-5.1 and DTS-5.1
- Analog audio extraction; the audio can be independently switched
- Control and management application available for Windows, iOS, Mac, and Android platforms
Items Included
- BZBGEAR 16x16 4K Seamless HDMI Matrix Switcher/Video Wall Processor Kit with 16 Receivers

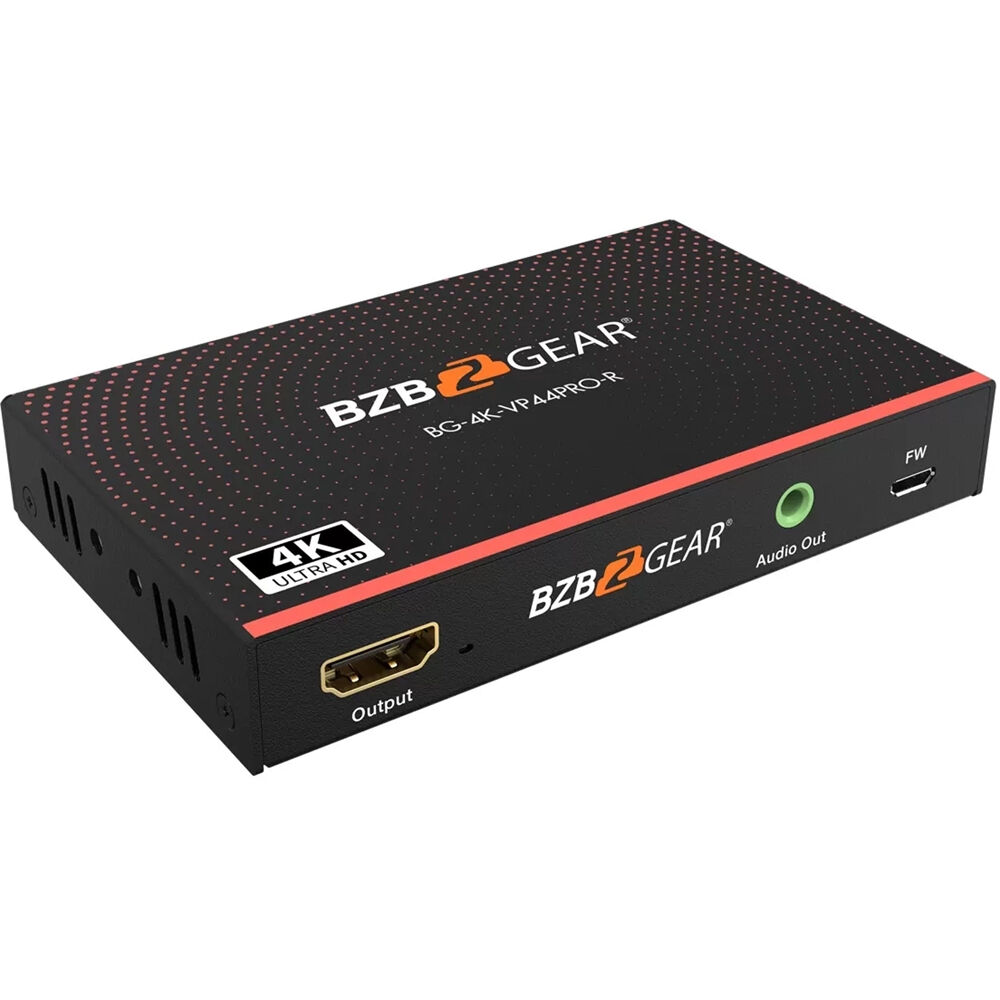

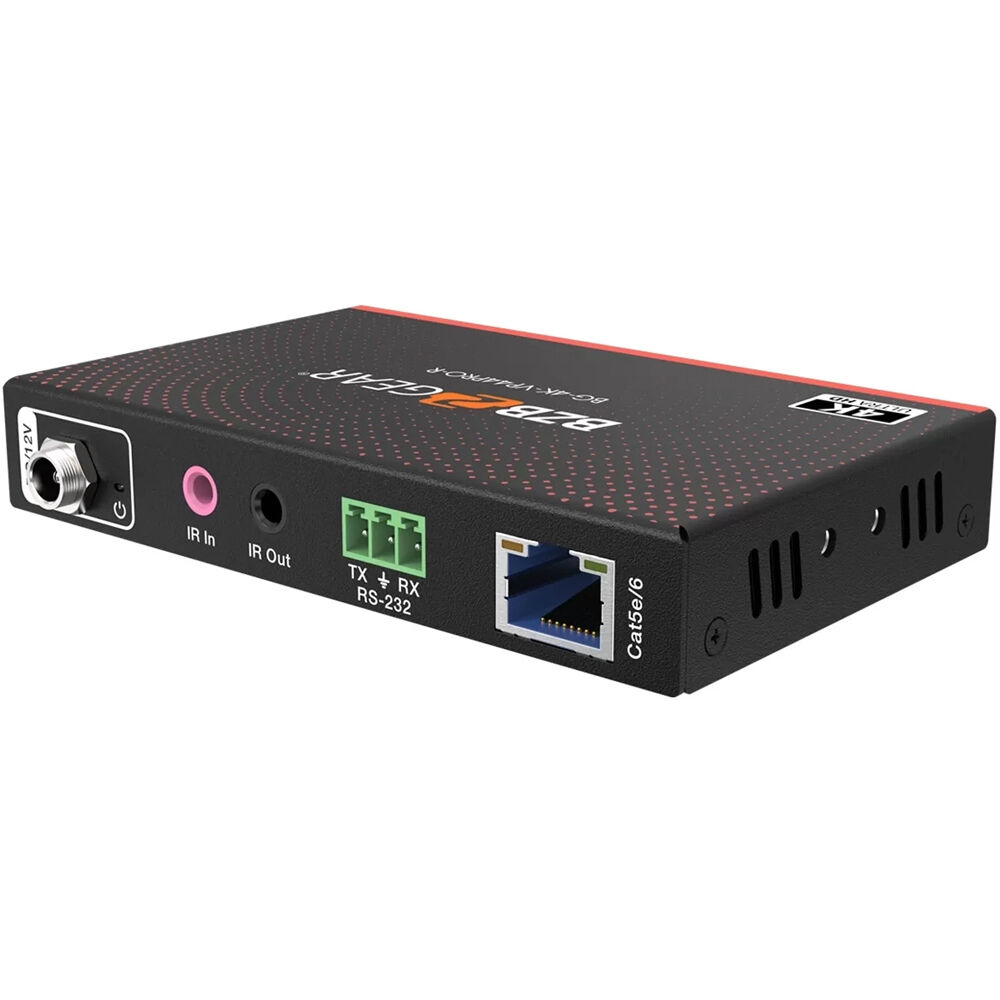

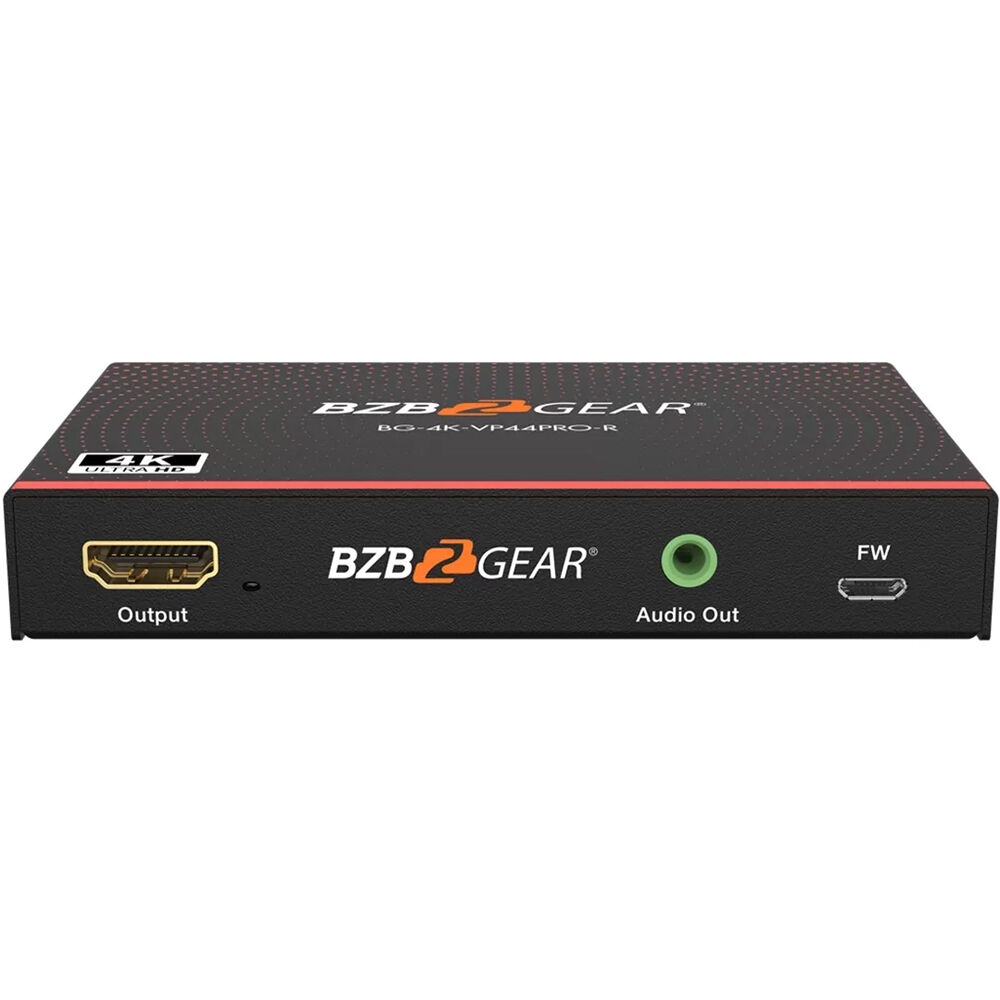

- 16 x Receiver
- Power Cable
- Remote Control
- IR Transmitter & Receiver Kit
- 3-Pin Terminal Plug
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
BZBGEAR 4K-VP1616PRO Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 30
|
| Video Inputs |
16x HDMI Female
|
| Input Video Format |
HDMI
UHD 4K up to 60 fps |
| Audio Inputs |
16x 1/8" / 3.5 mm TRS Analog Female
|
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Input |
HDMI
|
| Video Outputs |
16x HDMI Female (Program)
16x HDMI Female (Loop Output) |
| Output Video Format |
HDMI
UHD 4K up to 30 fps |
| Audio Outputs |
16x 1/8" / 3.5 mm TRS Stereo Analog Female
16x RCA Stereo S/PDIF Female |
| Output Audio Format |
S/PDIF
Analog |
| Embedded Audio Output |
HDMI
|
| Multiview Output |
16-Way Multiview via HDMI
|
| Other I/O |
16x RJ45 LAN Output
17x 1/8" / 3.5 mm IR Input 17x 1/8" / 3.5 mm IR Output 1x Micro-USB Firmware Input 1x Block 3-Pin RS-232 Input/Output 1x RJ45 LAN Output |
| Digital Audio Decoding |
Dolby Digital / AC3, DTS, LPCM
|
| HDCP Support |
Yes, Version 1.4/2.2
|
| HDR Support |
Yes
|
| DTS Compatibility |
DTS
|
| Dolby Compatibility |
Dolby Digital
|
| Wireless |
Bluetooth / Wi-Fi
|
| Power I/O |
1x Barrel (12 VDC at 3 A) Input
1x Barrel (24 VDC at 5 A) Input |
| Operating Conditions |
23 to 104°F / -5 to 40°C at 5 to 90% Humidity
|
| Storage Conditions |
-14 to 140°F / -25 to 60°C at 5 to 90% Humidity
|
