BZBGEAR 4x1 UHD 8K HDMI 2.1 Switcher with Audio De-Embedder

The switcher features extensive compatibility, effortlessly supporting HD, 4K, 4K120, and 8K60 resolutions to connect gaming consoles, PCs, or 8K TVs, ensuring seamless integration and optimal performance across all your devices. The EDID dip switches also enable users to set the image and audio formats.

The switcher supports video resolutions up to 8K60 YCbCr 4:2:0 12-bit and 4K120 RGB/YCbCr 4:4:4 12-bit as specified in HDMI 2.1. It is also compatible with HDR video, including support for HDR, HDR10, HDR10+, Dolby Vision, ALLM, and VRR pass-through for vivid image quality.

This unit features an audio de-embedding function that extracts audio from HDMI sources and outputs through optical and analog ports. It is compatible with numerous HDMI audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD.

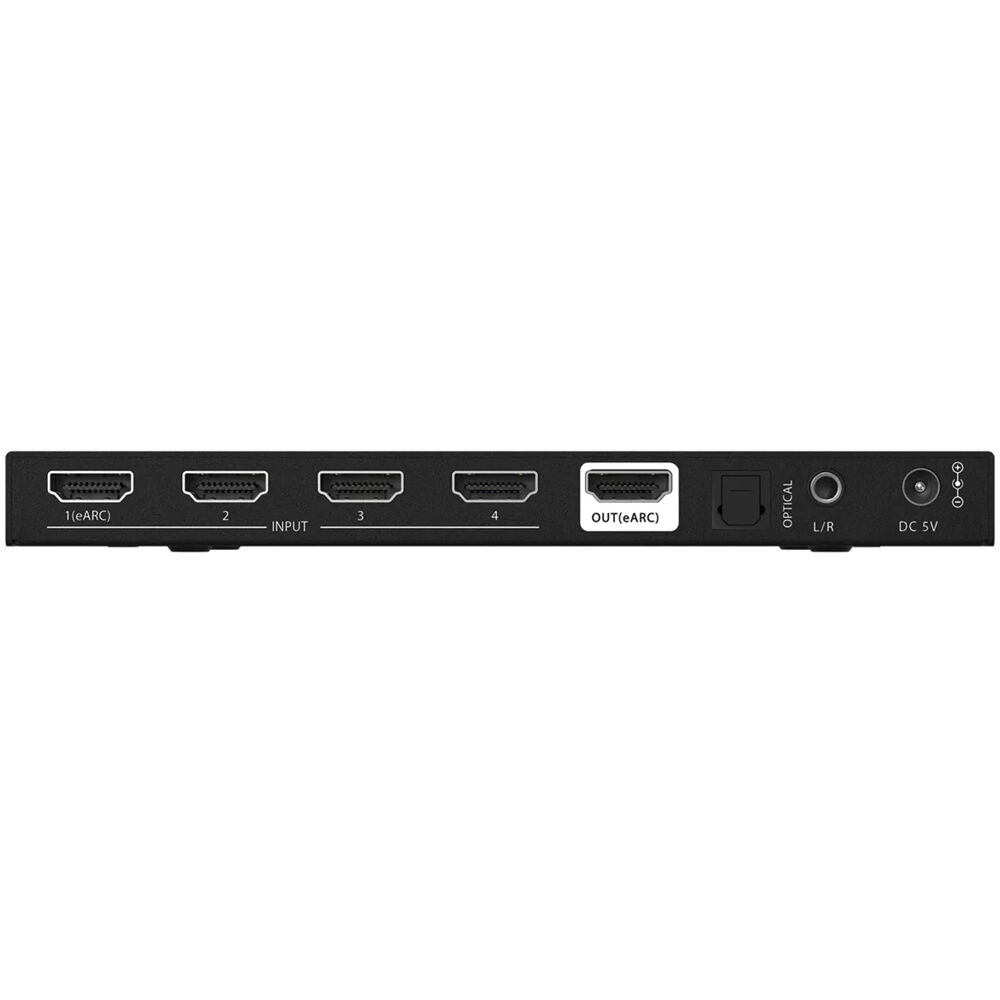

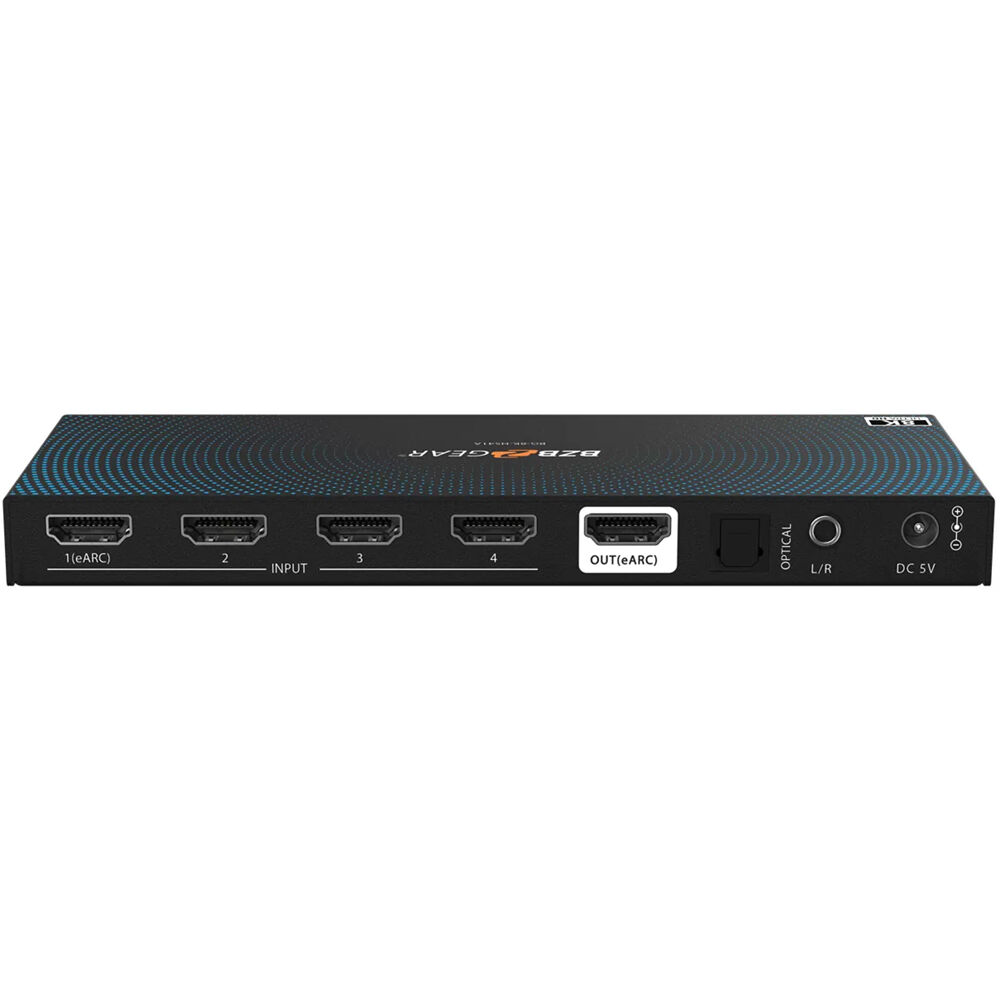

It can route four HDMI inputs to a single HDMI output, supporting TV eARC audio de-embedding to SPDIF and L/R analog outputs. It also accommodates audio output to SONOS ARC and Beam or any eARC-compatible soundbar.

• Advanced EDID management simplifies setup and ensures compatibility with a wide range of display devices
• HDCP 2.3 compliance ensures secure and uninterrupted signal transmission
• Supports VRR (Variable Refresh Rate)
• Quick Frame Transport (QFT)
• Source-Based Tone Mapping (SBTM)
• ALLM (Auto Low-Latency Mode) for smooth and responsive video playback
• 48 Gb/s FRL and 18 Gb/s TMDS video bandwidth support delivers superior video quality and performance
• Built-in equalizer, retiming, and driver for optimal signal quality and stability

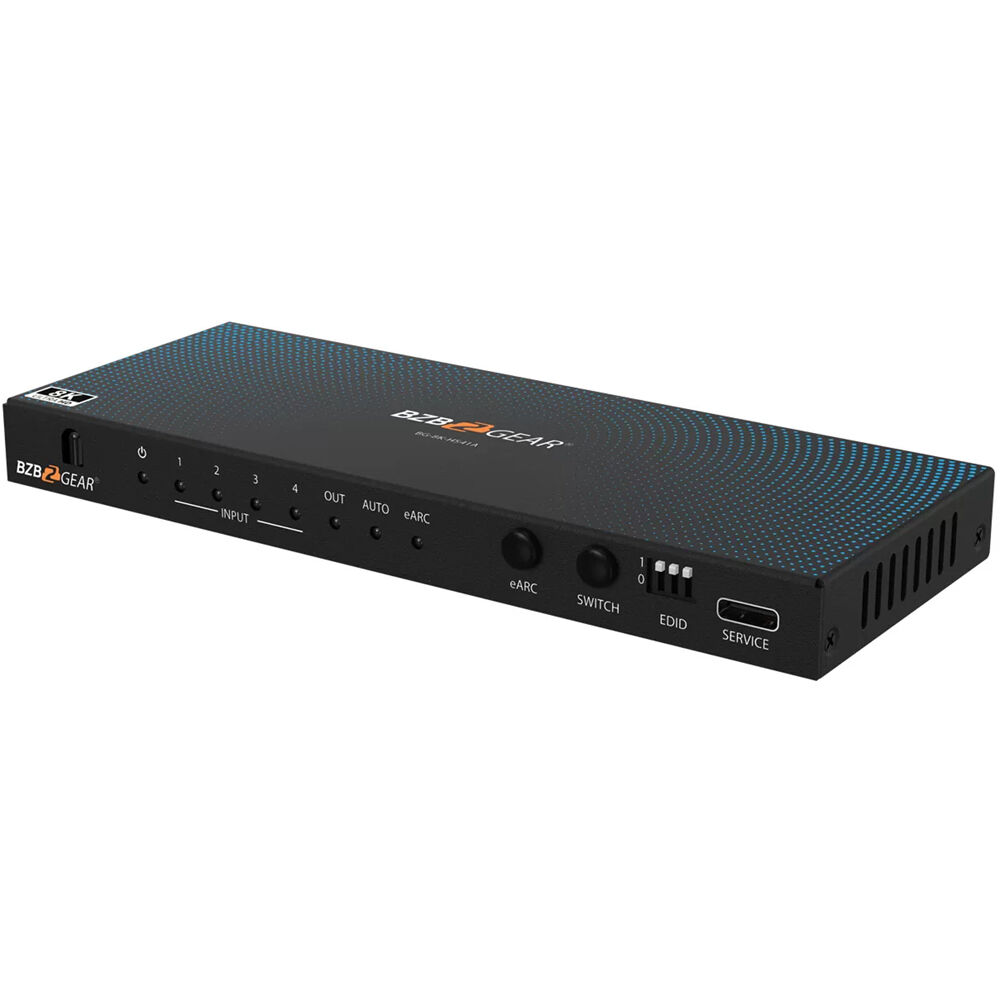

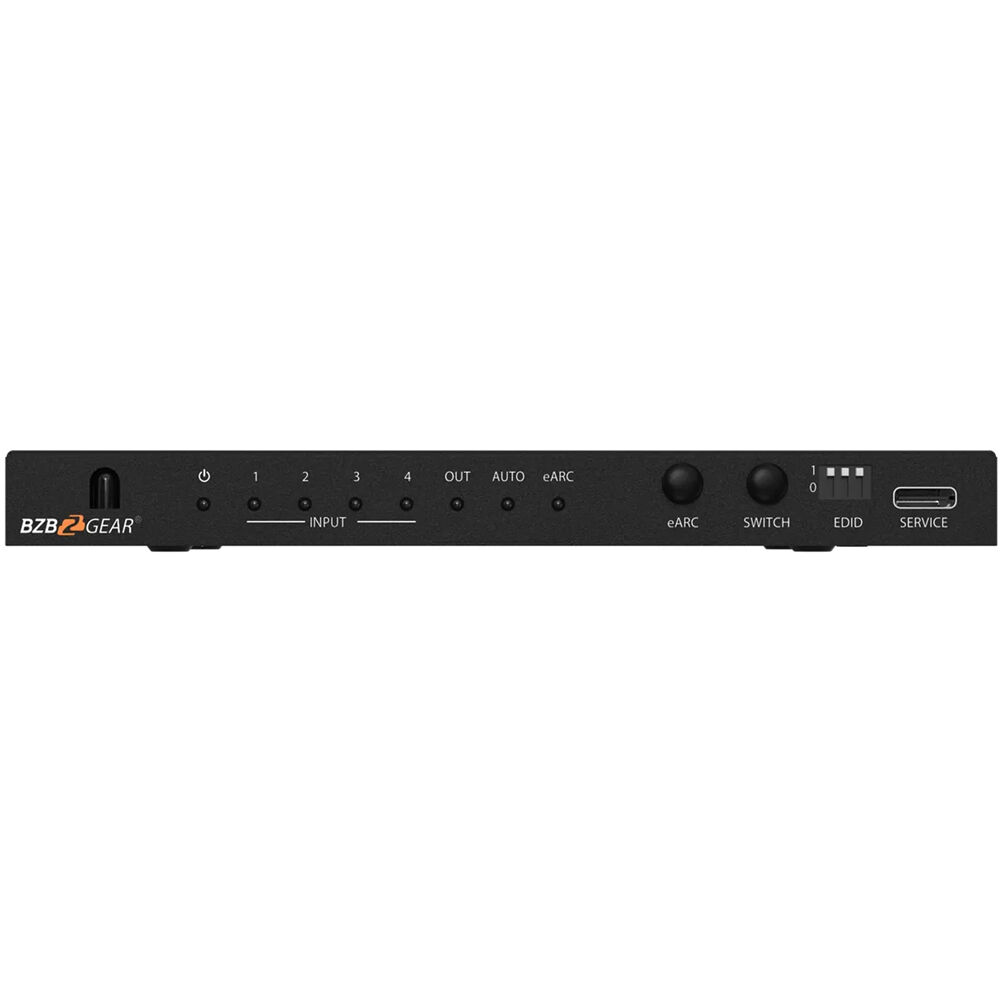

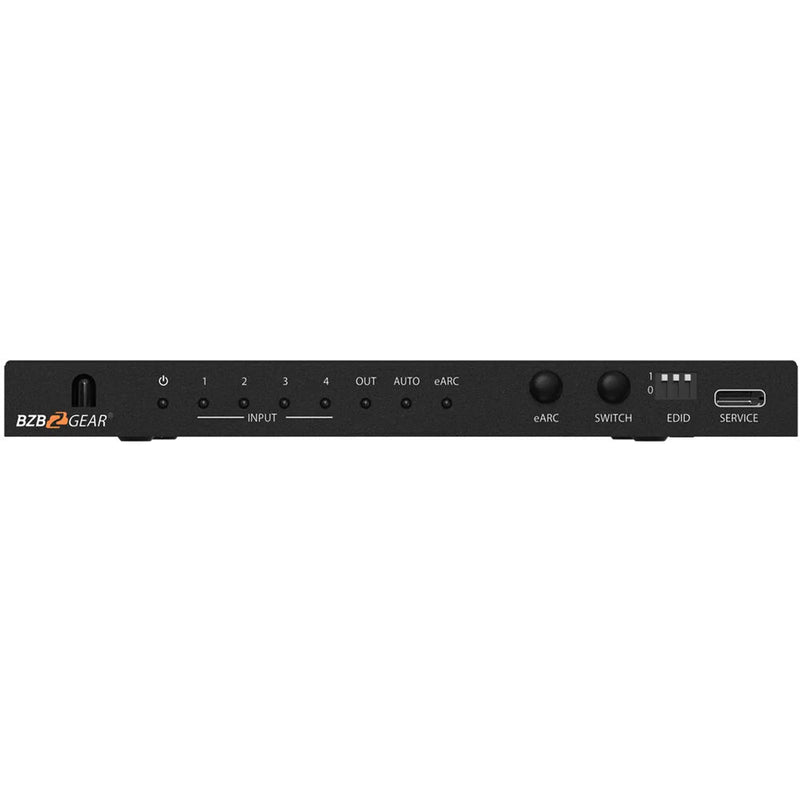

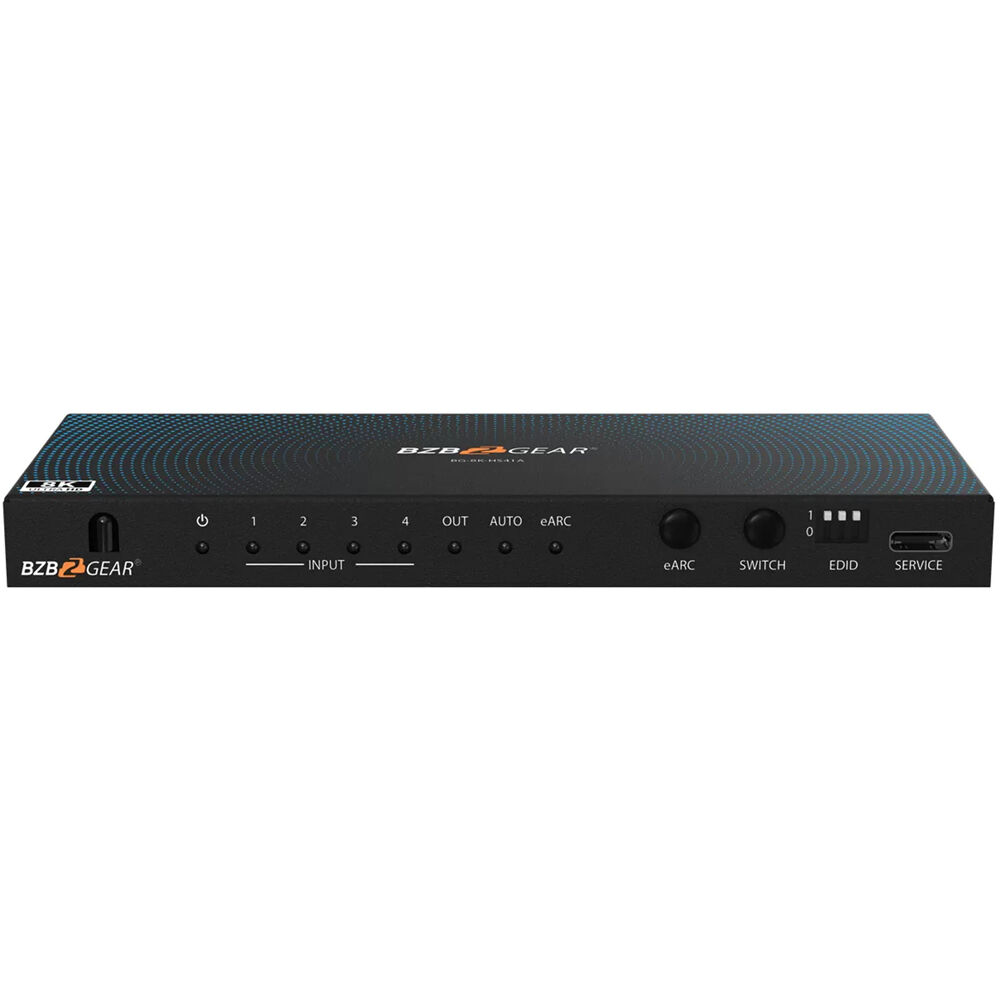

There are versatile control options, enabling effortless input switching via the front panel button or the included IR remote controller. For added convenience, this unit features advanced auto-switching technology, ensuring a seamless user experience.

This 4-port switcher also features CEC control from the TV to the source, allowing volume control from the TV to any eARC sound system. An eARC on/off button is on the front panel.

BZBGEAR 4x1 UHD 8K HDMI 2.1 Switcher Specs

Switching Type	IR Remote, Pushbutton, Software
Processing Resolution	8K at 60
Color Processing	8-Bit 4:4:4 YUV 8-Bit 4:2:2 YUV 8-Bit 4:2:0 YUV 8-Bit 4:4:4 RGB 8-Bit 4:2:2 RGB 8-Bit 4:2:0 RGB 10-Bit 4:4:4 YUV 10-Bit 4:2:2 YUV 10-Bit 4:2:0 YUV 10-Bit 4:4:4 RGB 10-Bit 4:2:2 RGB 10-Bit 4:2:0 RGB 12-Bit 4:4:4 YUV 12-Bit 4:2:2 YUV 12-Bit 4:2:0 YUV 12-Bit 4:4:4 RGB 12-Bit 4:2:2 RGB 12-Bit 4:2:0 RGB

Video Inputs	4x HDMI (2.1) Female
Input Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) 8K up to 60 fps DCI 4K up to 24/60/120 fps UHD 4K up to 24/60/120 fps 1080p up to 60 fps
Embedded Audio Input	HDMI

Video Outputs	1x HDMI (2.1) Female
Output Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) 8K up to 60 fps DCI 4K up to 24/60/120 fps UHD 4K up to 60/120 fps 1080p up to 60 fps
Audio Outputs	1x 1/8" / 3.5 mm TRS Stereo Analog Female 1x TOSLINK Stereo S/PDIF Female
Output Audio Format	LPCM (Linear Pulse-Code Modulation)
Embedded Audio Output	HDMI

Other I/O	1x USB-C Firmware Input
Digital Audio Decoding	DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital EX, Dolby Digital / AC3, Dolby Atmos, DTS, DTS-HD High Resolution, DTS Express, LPCM, Dolby TrueHD, DTS 96/24
HDCP Support	Yes, Version 2.3
HDR Support	Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
DTS Compatibility	DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
Dolby Compatibility	Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD

Wireless

No

Power I/O	1x Barrel (5 VDC at 1 A) Input
Power Consumption	Device: 100 to 240 VAC (2.5 W)

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
Certifications	CE, FCC, UL
Dimensions	6.9 x 2.7 x 0.71" / 17.5 x 6.9 x 1.8 cm
Weight	11.1 oz / 315 g

Package Weight	1.225 lb
Box Dimensions (LxWxH)	11.7 x 5.2 x 2.7"
