Description

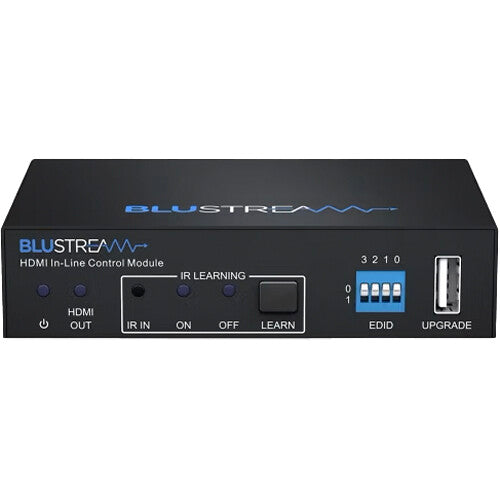

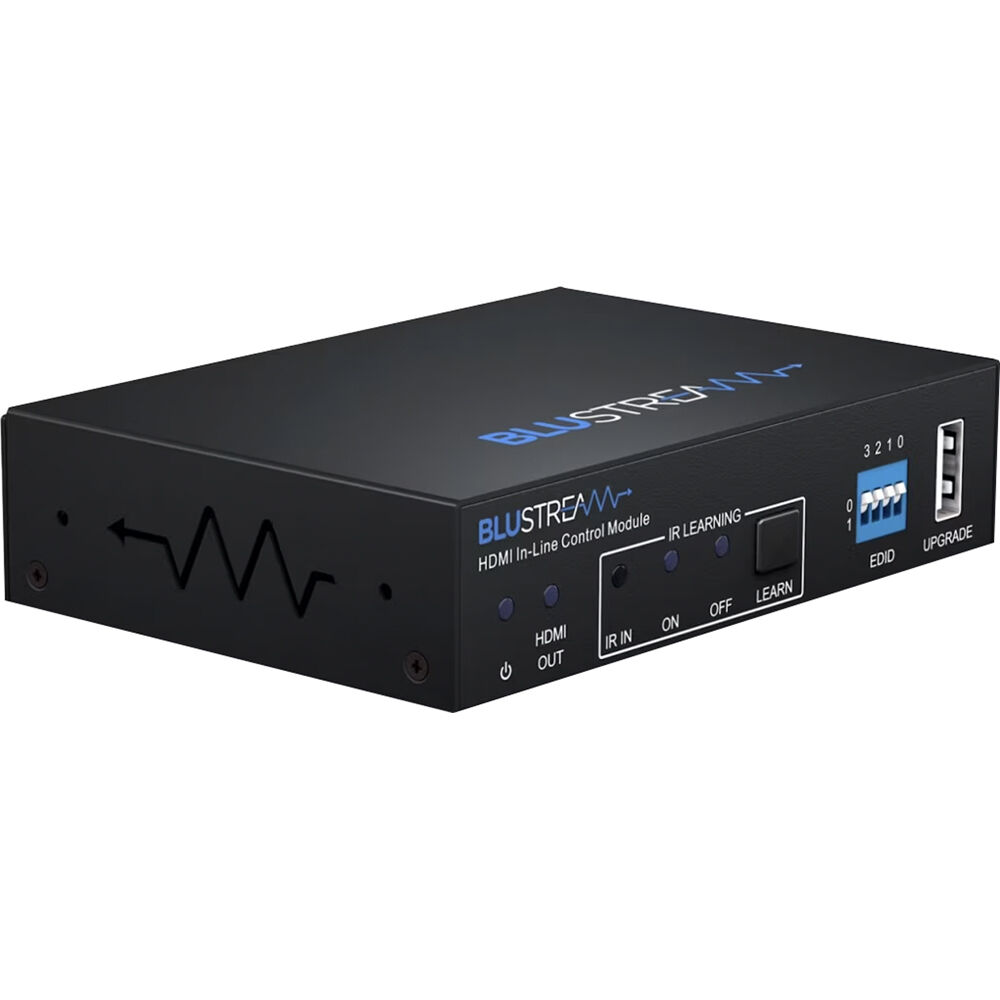

Blustream HD11CTRL Overview
The Blustream HD11CTRL HDMI In-Line Controller is an automated room control solution, featuring display on/off control via CEC, RS-232, and IR when a HDMI signal is sensed on the input.
External relay inputs allow third-party triggers for integration with devices such as sensors or switches. The controller will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID, and handshaking issues that can be common problems when distributing HDMI signals, especially 4K.
The HD11CTRL supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to 4K 60 Hz 4:4:4.
Items Included
- Blustream HDMI In-Line Controller with CEC, RS-232, and IR
- 5 VDC/1A Power Supply
- IR Emitter
- RS-232 Control Cable
- Mounting Kit
- Quick Reference Guide
- Limited 5-Year Manufacturer Warranty
Additional Resources
Blustream HD11CTRL Specs
General
| Compatibility |
Not Specified by Manufacturer
|
Inputs/Outputs
| USB I/O |
1 x USB-A Female Input
|
| Video I/O |
1x HDMI Input
1x HDMI Output |

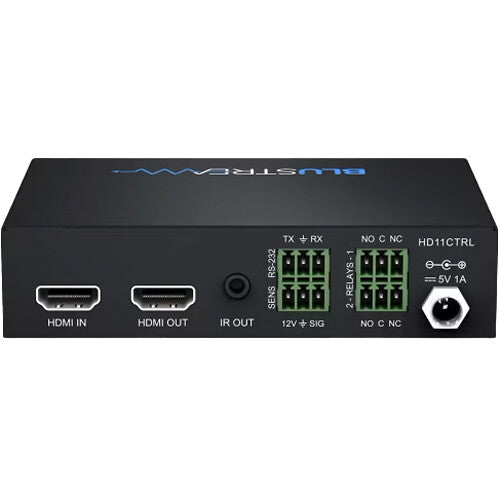

| Other I/O |
RS-232 Serial Port: 1 x 3-Pin Phoenix Connector
IR Output Port: 1 x 1/8" / 3.5 mm Mono Jack Relay Control: 2 x 3-Pin Phoenix Connector Sensor Input: 1 x 3-Pin Phoenix Connector |
Power
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
5 VDC at 1 A
|
Physical
| Color |
Black
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
4.7 x 3.3 x 1.1" / 120 x 84 x 28 mm
|
Packaging Info
| Package Weight |
1.59 lb
|
| Box Dimensions (LxWxH) |
10.9 x 5.5 x 2.6"
|
