Description
Turtle AV TAV-DARWIN-CTL Overview
Simplifying management of the Darwin HD series, the Darwin Central Management Control Box from Turtle AV provides centralized control and management over IP using a built-in WebGUI. Boasting an intuitive drag-and-drop interface, real-time video previews, and advanced video wall management up to 9x9 configurations, the unit offers API compatibility with Q-SYS, Crestron, and more. Encased in a sleek, aqua-blue metal enclosure, the TAA-compliant box is equipped with dual 1G network ports with PoE (Power over Ethernet) support. Additionally, it offers AES-256 video encryption as well as HTTPS and SSH security.
WebGUI for Centralized Management and Control
Easily configure and manage your entire network of Darwin HD transmitters and receivers through an intuitive WebGUI. Simplify complex setups with centralized control at your fingertips.
API Support
Seamlessly integrate with third-party systems such as Q-SYS, Crestron, and more using robust API support. Perfect for customized control and automation.
Security
Advanced security features include AES-256 video encryption, HTTPS, and SSH login. These features ensure your data and controls remain safe, and your network is protected from unauthorized access.
Drag & Drop Routing Interface
Routing signals has never been easier. Built directly into the WebGUI is an intuitive drag-and-drop interface that allows you to quickly and easily route one to one or one to many.
Dual RS-232 Ports & 4-Channel GPIO Control
Control multiple devices independently with dual RS-232 ports and trigger automation with 4-channel GPIO control.
Advanced Video Wall Management
Inside the WebGUI is a powerful and intuitive video wall manager designed to simplify even the most complex setups. Easily configure layouts, manage display groups, and control individual panels. Create stunning arrangements such as 2x2, 3x3, 4x4, or even asymmetrical layouts, and fine-tune bezel compensation for a flawless visual experience. With live previews and drag-and-drop functionality, you can adjust your video wall on-the-fly for dynamic presentations, control rooms, or digital signage. The unit supports videowall configurations up to 9x9, enabling up to 81 displays to be configured as a single display.
PoE & DC Power Options
Power over Ethernet (PoE) streamlines installation with a single cable delivering both power and data, but you can also power with the included power supply or use PoE and DC for power redundancy.
Unicast & Multicast Support
Use Unicast for direct, one-to-one transmission, ensuring reliable performance with minimal network bandwidth. Switch to Multicast for efficient one-to-many distribution, which is perfect for sending the same content to multiple endpoints simultaneously.
All-Metal Chassis

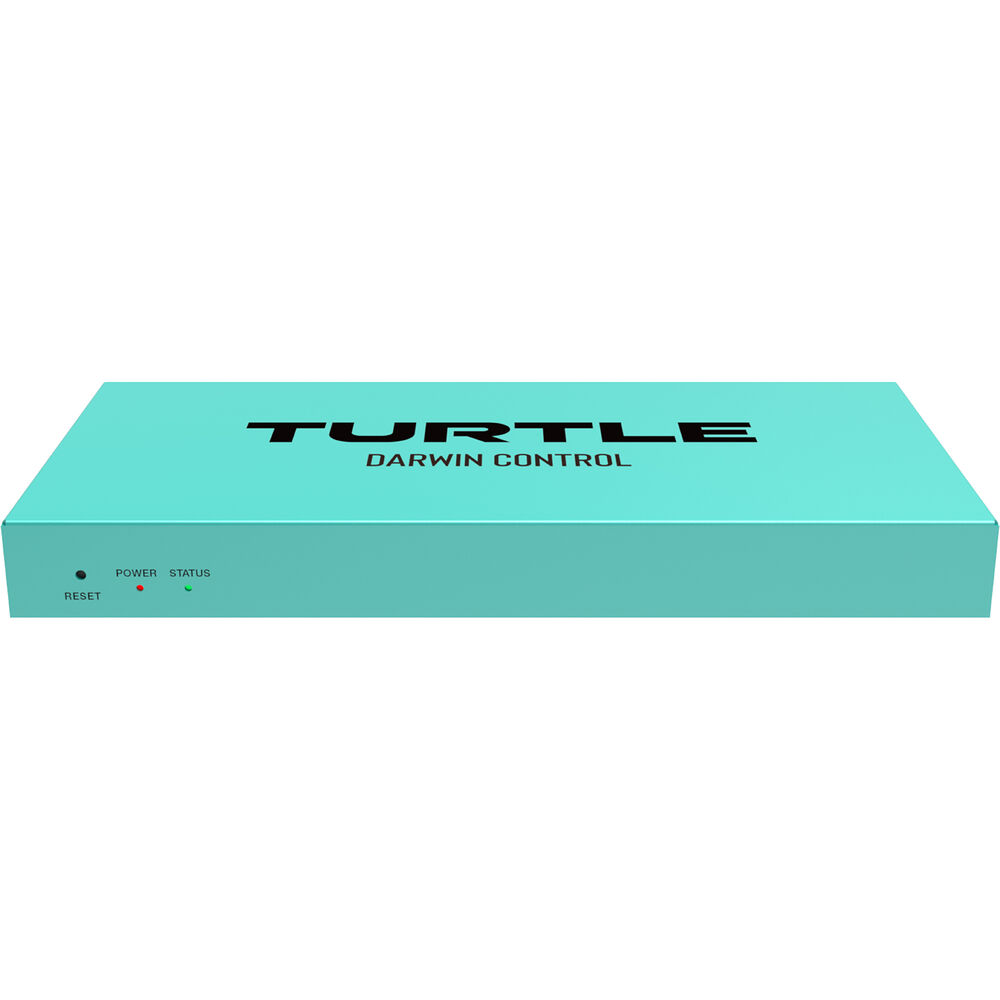

Housed in an all-metal chassis for maximum ruggedness, the aqua-blue device is sleek and elegant enough to mount in full view of all your other production gear.
TAA Compliant
The TAA compliant device meets U.S. government standards for procurement. This ensures that it can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Items Included
- Turtle AV Darwin Central Management Control Box
- Power Supply
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Turtle AV TAV-DARWIN-CTL Specs
General
| Ports |

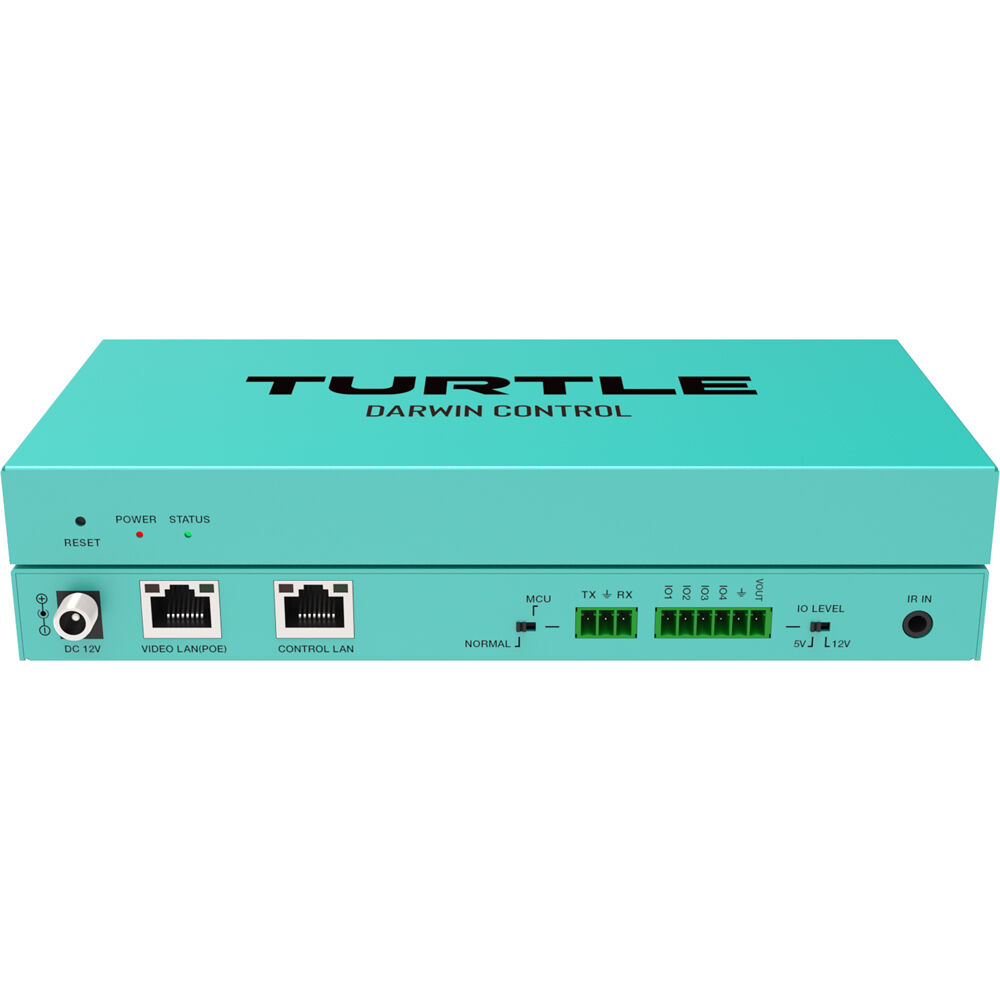

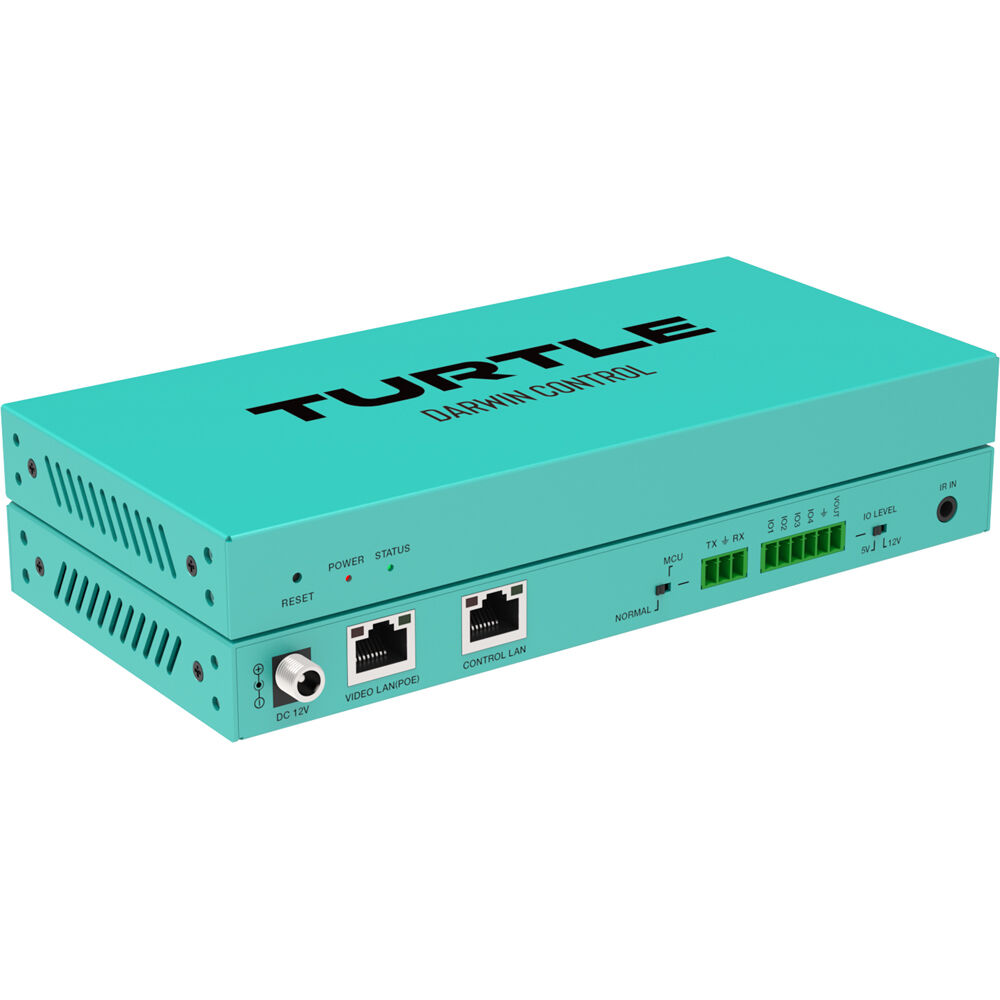

1 x RJ45 LAN (Supports Video Input and PoE) 1 x RJ45 LAN (Control) 1 x 1/8" / 3.5 mm Audio Port (IR Input) 1 x 1/8" / 3.5 mm Audio Port (IR Output) 1 x 6-Pin Phoenix Connector (Digital Input/Output) 2 x 3-Pin Phoenix Connector (RS-232 Input/Output) 1 x Micro-USB (Upgrade)
|
Power
| Power Source |
AC Input, PoE
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 2.5 A
|
| Power Consumption |
2 W
|
Physical
| Color |
Aqua Blue
|
| Material of Construction |
Metal
|
| Operating Conditions |
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
|
| Dimensions |
8 x 3.9 x 0.8" / 204 x 98.5 x 21.5 mm
|
| Weight |
1.1 lb / 508 g
|
Packaging Info
| Package Weight |
2.015 lb
|
| Box Dimensions (LxWxH) |
10.5 x 6.3 x 3.1"
|
