Description
Product Overview

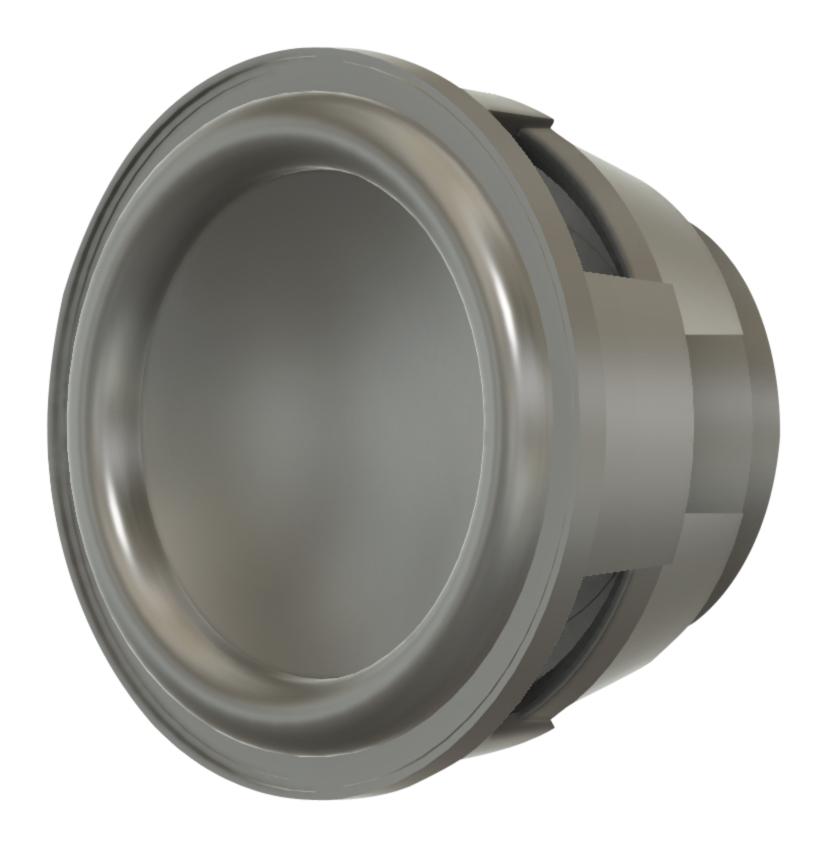

AS04204PR-2 is a speaker. It is designed for applications that require robust low frequency response and low THD in compact designs.
- 10W rated input power
- 12W maximum input power
- 83.5 ±3dB sensitivity at PDRIVE=1.0W, distance=0.5m, f=ave, 0.8KHz, 1.0KHz, 1.2KHz, 1.5KHz
- 160Hz ±20% resonant frequency
- 90 ? f ? 20,000Hz frequency range (-10dB)
- PBT + 15% GF frame material, NdFeB magnet material, PU + paper diaphragm material
- Less than or equal to 5% total harmonic distortion at (f = 1KHz, PDRIVE = 1.0W)
- 4 ±15% ohm impedance
- Dimension is 24.65 x 42.2 x 42.2mm (H x W x L)
- Operating temperature range from -25°C ? to ? 50°C
Product details
Other details
| Brand | PUI AUDIO |
| Part Number | AS04204PR-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
