| ₹ 1015.65 includes GST and import duties. | |
| B2B customers can avail ₹ 154.89 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

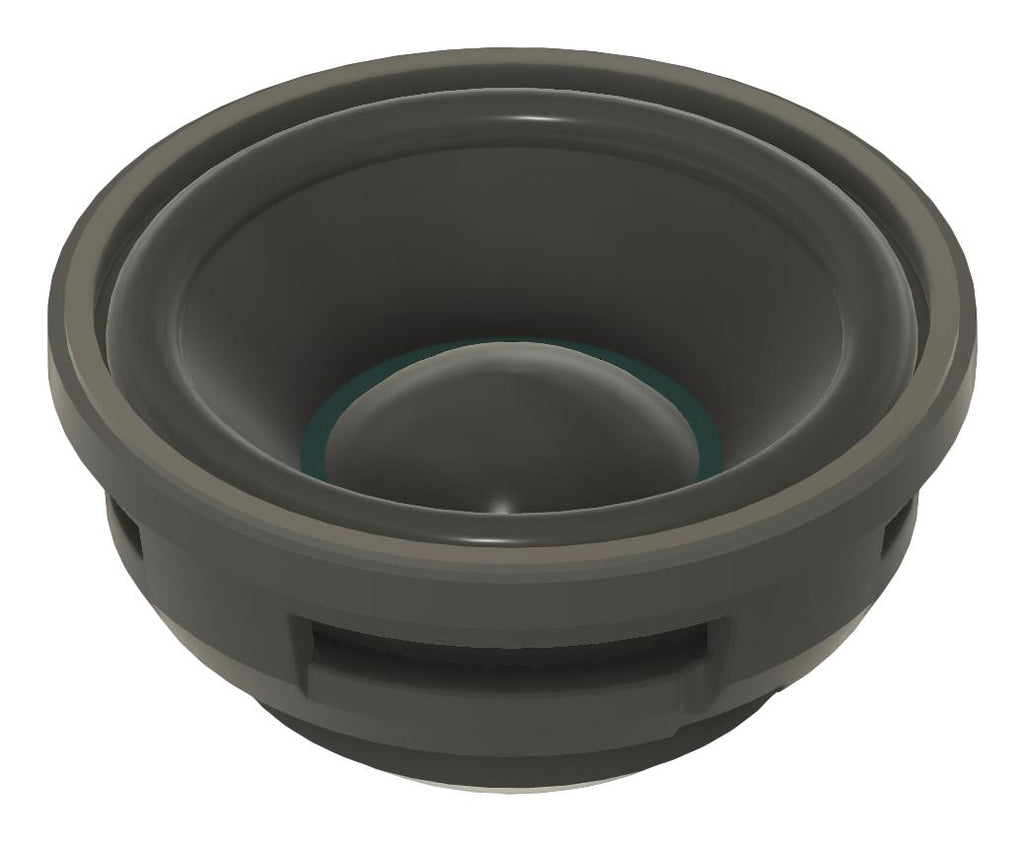

AS04008PR-6 is a speaker. It is designed for applications that require robust low frequency response in compact designs.
- 3W rated input power
- 4W maximum input power
- 86 ±3dBSPL sensitivity (2KHz) at PDRIVE=1.0W, distance=0.5m, f=ave, 0.6KHz, 0.8KHz, 1.0KHz, 1.2KHz
- 170Hz ±20% resonant frequency
- f0 ? f ? 20,000Hz frequency range (-10dB)
- ABS + 15% G frame material, NdFeB magnet material, sponge + paper diaphragm material
- Less than or equal to 5% total harmonic distortion at (f = 1KHz, PDRIVE = 1.0W)
- 8 ±15% ohm impedance
- Dimension is 19 x 40 x 40mm (H x W x L)
- Operating temperature range from -25°C ? to ? 50°C
Product details
Other details
| Brand | PUI AUDIO |
| Part Number | AS04008PR-6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 995.34 |
| 3-5 | ₹ 985.18 |
| 5-10 | ₹ 964.87 |
| 10+ | ₹ 944.55 |
Bulk discount will be automatically applied during checkout based on quantity.
