Description
Product Overview

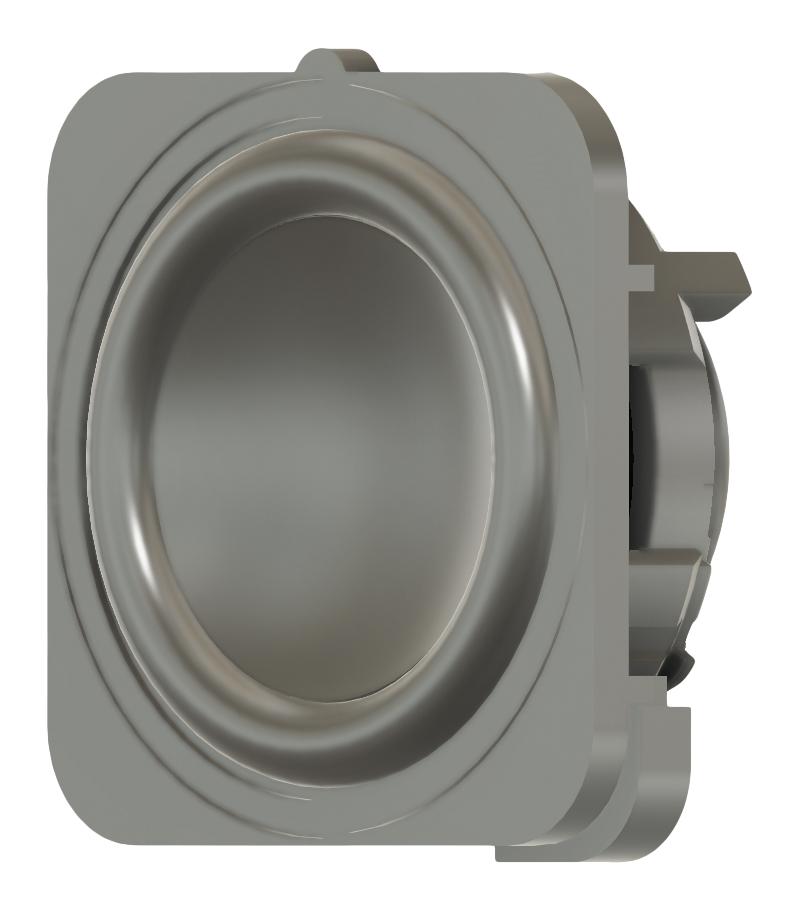

AS03208AS-HT is a speaker. It is designed for applications that require robust low-frequency response and low THD in compact designs.
- 3W rated input power
- 4W maximum input power
- 85 ±3dB sensitivity (SPL) at PDRIVE = 1.0W, distance = 0.5m, f = ave, 0.6KHz, 0.8KHz, 1.0KHz, 1.2KHz
- 230Hz ±20% resonant frequency, IPX5 rated
- 150 ? f ? 20,000Hz frequency range (-10dB)
- PBT+15%GF frame material, NdFeB magnet material, aluminium diaphragm material
- Less than or equal to 5% total harmonic distortion at (f = 1KHz, PDRIVE = 1.0W)
- 8 ±15% ohm impedance
- Dimension is 16.45 x 31.7 x 32.7mm (H x W x L)
- Operating temperature range from -25°C ? to ? 50°C
Product details
Other details
| Brand | PUI AUDIO |
| Part Number | AS03208AS-HT |
| Quantity | Each |
| Technical Data Sheet EN |  |
