Description
Product Overview

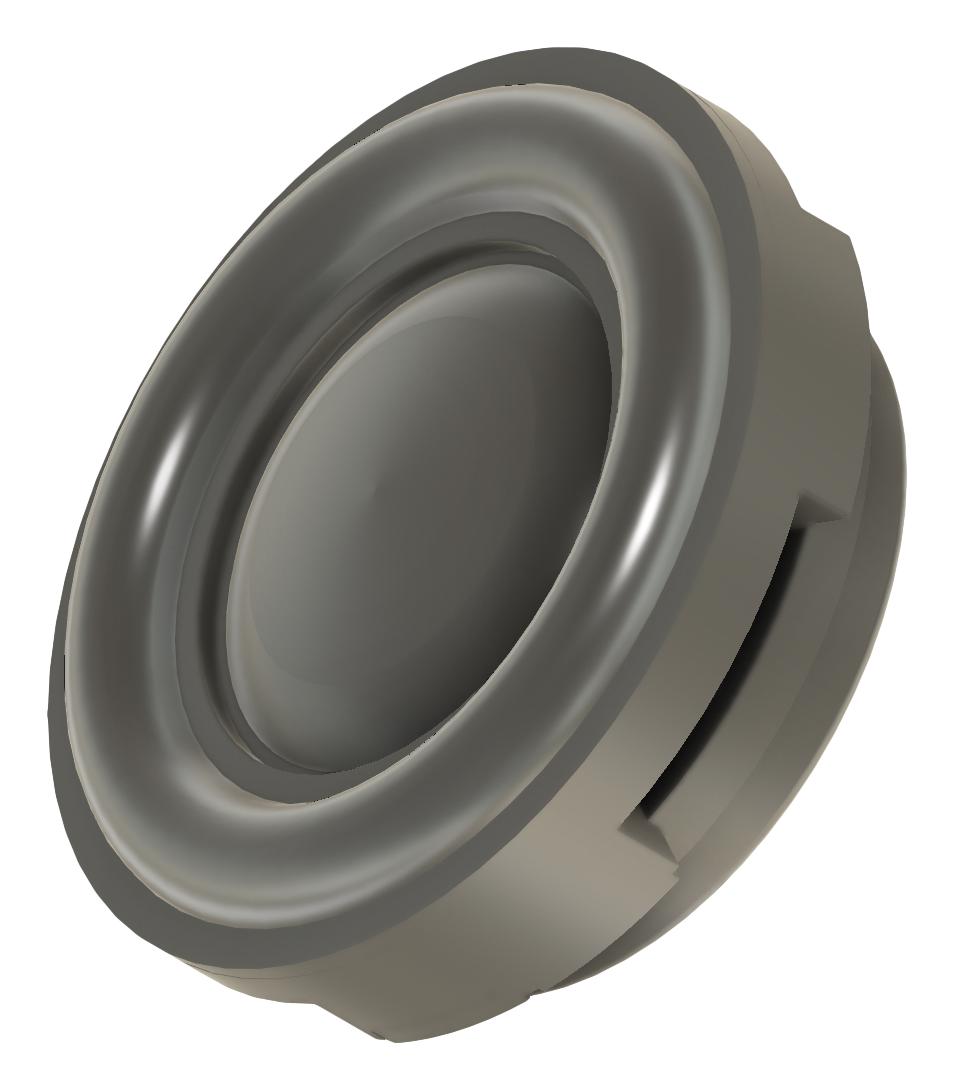

AS02504AR is a speaker. It is designed for applications that require robust low frequency response in compact designs.
- 3W rated input power
- 3.5W maximum input power
- 81 ±3dB sensitivity at PDRIVE = 1.0W, distance = 0.5m, f = ave, 0.8KHz, 1.0KHz, 1.2KHz, 1.5KHz
- 320Hz ±20% resonant frequency
- f0 ? f ? 20,000Hz frequency range (-10dBSPL)
- PBT + 15% GF frame material, NdFeB magnet material, aluminium diaphragm material
- Less than or equal to 5% total harmonic distortion at (f = 1KHz, PDRIVE = 1.0W)
- 4 ±15% impedance
- Dimension is 9.4 x 25 x 25mm (H x W x L)
- Operating temperature range from -25°C ? to ? 50°C
Product details
Other details
| Brand | PUI AUDIO |
| Part Number | AS02504AR |
| Quantity | Each |
| Technical Data Sheet EN |  |
