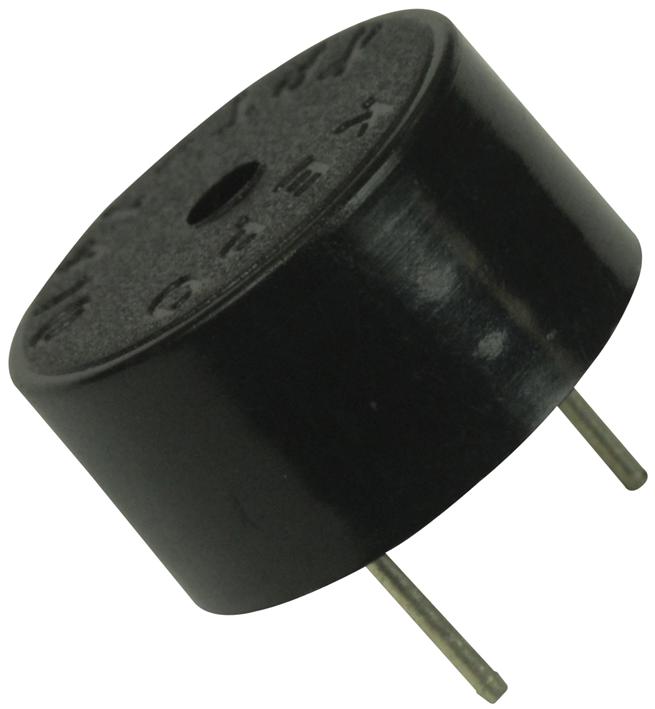

Product Overview
- Piezo transducer
- Rated voltage is 12Vp-p square wave
- Maximum allowable voltage is 30Vp-p square wave
- Maximum rated current is 3mA at 4KHz/12Vp-p square wave
- Resonant frequency is 4 ±0.5KHz
- Sound pressure level is 80dB at 4KHz/12Vp-p square wave/10cm
- Capacitance at 120Hz is 10,000pF ±30%
- Case material is PBT
- Operating temperature range from -20°C to +80°C
- External diameter is 14mm
Product details
Technical Specifications
Transducer Function
Buzzer
Transducer Mounting
Through Hole
Operating Voltage Range
30V p-p
Operating Temperature Max
80°C
Sound Pressure Level (SPL)
80dB
Operating Current Max
3mA
Sound Level Distance
100mm
Housing Material
PBT (Polybutylene Terephthalate)
Operating Temperature Min
-20°C
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCKPT-G1410A1-3919. |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
