Product Overview

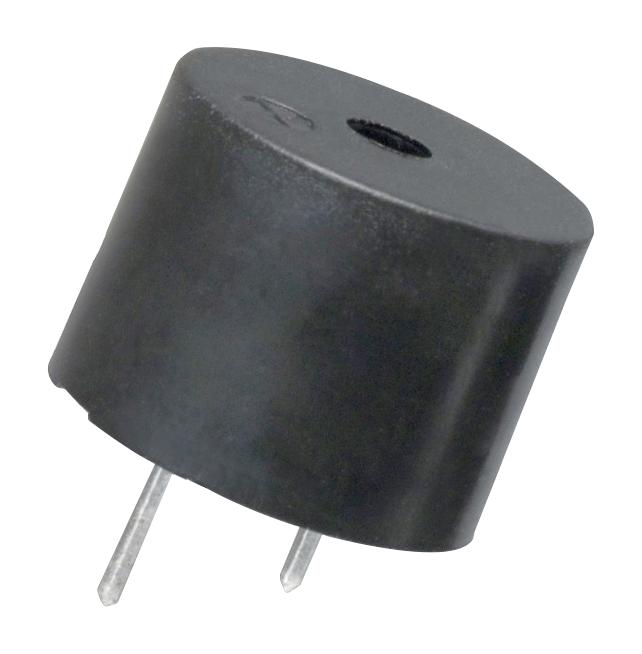

- Piezo buzzer
- Rated voltage is 12Vp-p square wave
- Operating voltage is 3 to 30Vp-p square wave
- Maximum rated current is 4mA
- Minimum sound pressure level is 80dB at 12Vp-p/4KHz square wave/10cm
- Capacitance at 100Hz is 9,500 ±30%pF
- Resonant frequency is 4 ±0.5KHz
- Shell material/colour is PC/black
- Operating temperature range from -20°C to +80°C
Product details
Technical Specifications
Transducer Function
Buzzer
Operating Current Max
4mA
Operating Voltage Range
3V p-p to 30V p-p
Operating Temperature Max
80°C
Sound Pressure Level (SPL)
80dB
Transducer Mounting
Through Hole
Sound Level Distance
100mm
Housing Material
PC (Polycarbonate)
Operating Temperature Min
-20°C
Product Range
Multicomp Pro Transducer
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCKPT-G1340-3917. |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
