Description
Product Overview

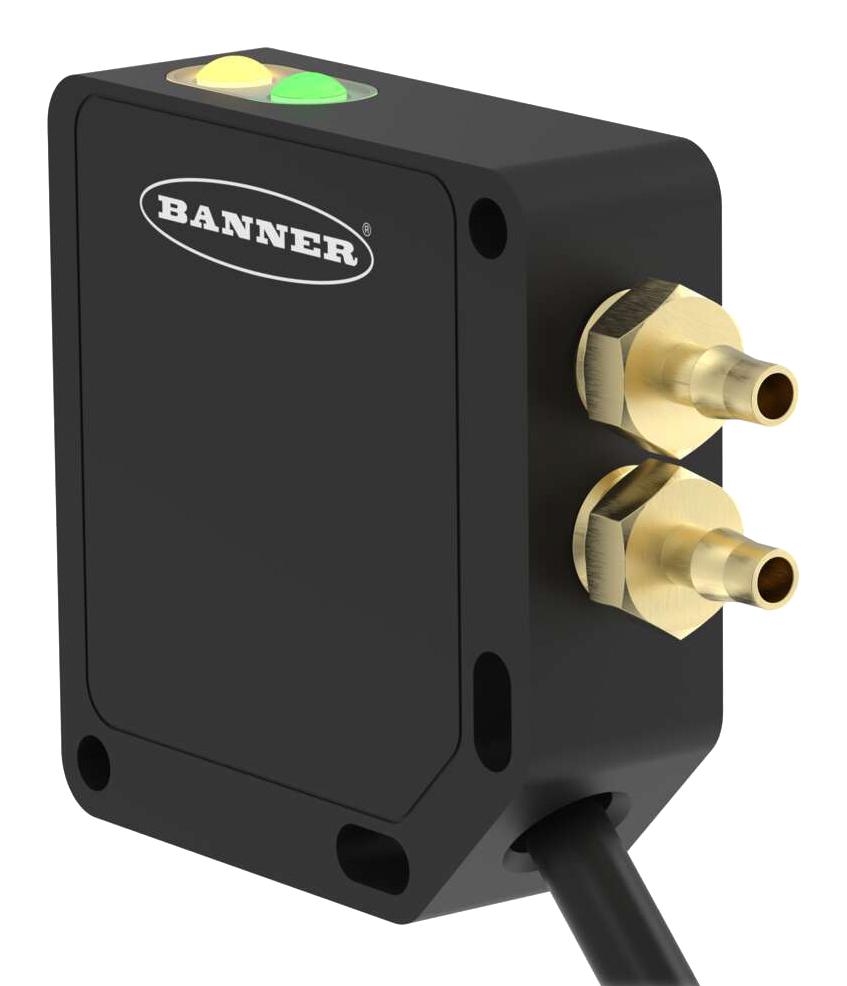

QM42-DPS1-2Q is a QM42-DPSx-2Q differential pressure sensor. The differential pressure sensor offers accurate low-differential pressure measurement of air and noncondensing, non-corrosive gases in applications such as air filter monitoring, isolation and clean rooms, building pressurization and dust collectors.
- Silicon piezoresistive differential pressure core
- Black anodized aluminium alloy construction
- RS-485 Modbus serial communication, IP67 environmental rating
- Senses up to ±1inches of water column (wc)
- Supply voltage range from 10VDC to 30VDC
- <lt/> 3mA current consumption
- 0.2% full scale accuracy, 0.125inch inner diameter, 0.25inch outer diameter PVC tubing
- 6.9ft cable with a 5-pin M12 quick disconnect (QD) connector
- Proof pressure: 100× maximum operating pressure, burst pressure: 300× maximum operating pressure
- Operating temperature range from -25°C to +85°C
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | QM42-DPS1-2Q |
| Quantity | Each |
| Technical Data Sheet EN |  |
