Description
Product Overview

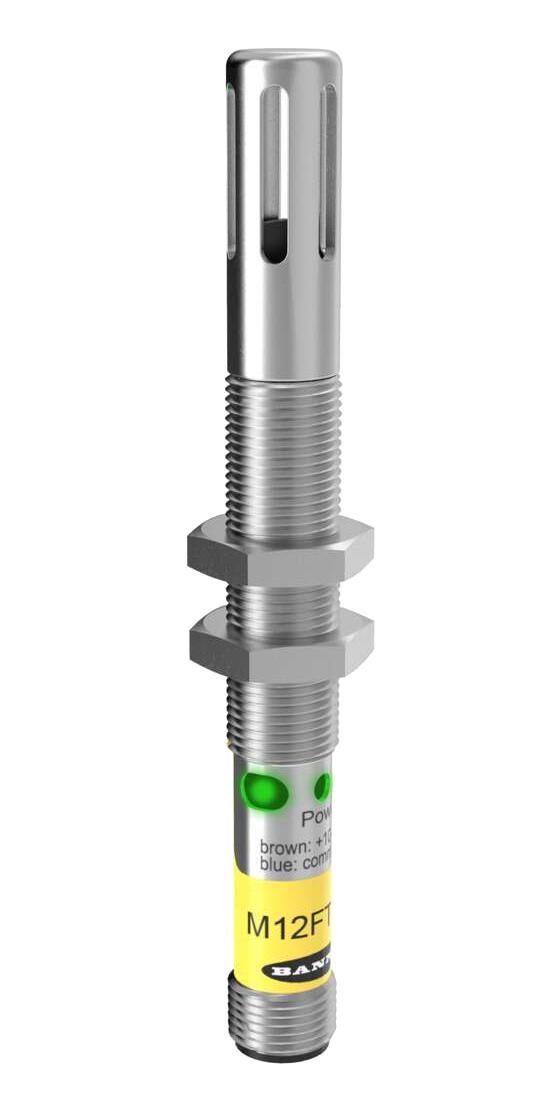

M12FTH3Q is a temperature and humidity sensor. The Sure Cross® temperature and humidity sensor works in a variety of environments to provide temperature and humidity measurements.
- Manufactured with a robust metal housing
- Functions as a Modbus server device via RS-485
- Supply voltage is 12 to 24VDC or 3.6 to 5.5VDC low power option
- Current rating is 45µA default sensing, 32µA disabled sensing, 4mA active comms
- Sample rate: 5seconds temperature and/or humidity input
- Operating temperature range from -40°C to +85°C
- Environmental rating is IEC IP67; NEMA 6
- Resolution is 0.1°C
- M12 × 1 mounting threads
- Baud rates: 9.6k, 19.2k (default), or 38.4k, Modbus RTU protocol
Warnings
Do not use this device for personnel protection. Using this device for personnel protection could result in serious injury or death.
Notes
Ships with aluminium grill filter cap; optional stainless steel 10micrometer sintered filter available separately.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | M12FTH3Q |
| Quantity | Each |
| Technical Data Sheet EN |  |
