Description
Product Overview

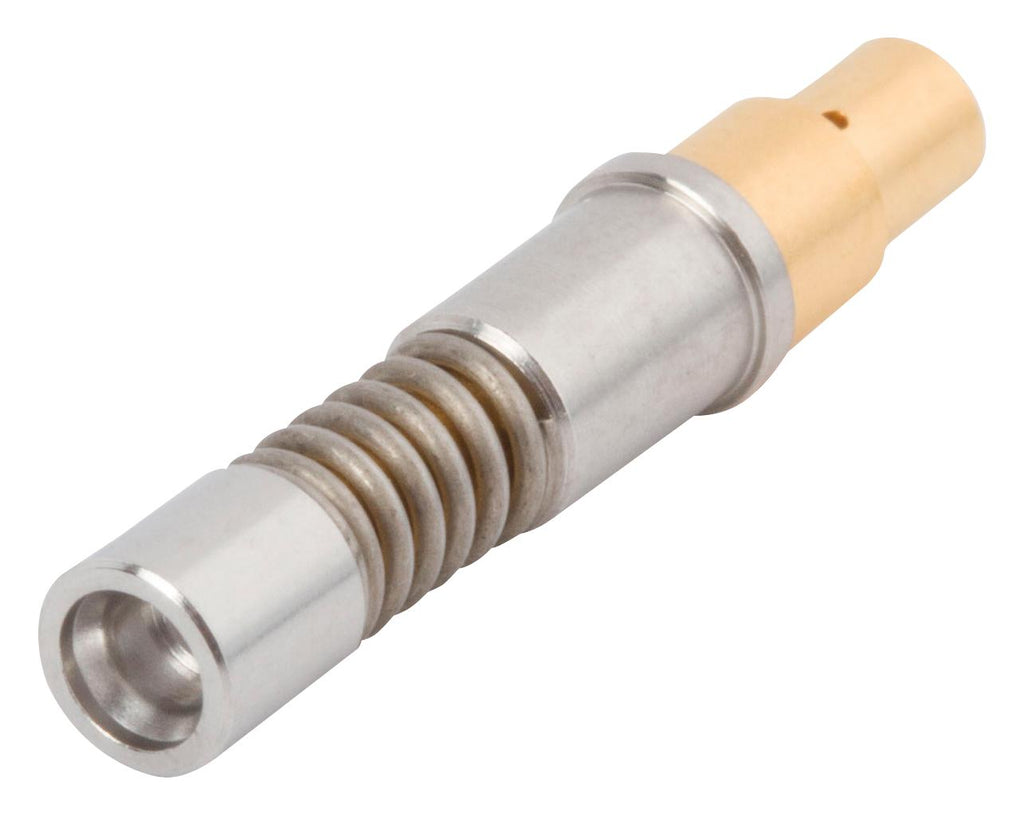

The SF3211-6004 from SV Microwave - Amphenol is a SMPM socket D38999 contact (size 12) for 0.085inch cable. The SMPM connector was developed to improve on the application density and operating frequency range of the SMP connector. The SMPM connector is widely used in high density, high performance applications today. Typical applications include aerospace, military, broadband, instrumentation, routers, telecommunications, high-speed applications (10 to 40Gbits) and cable assembly.
- Impedance is 50 ohm, shielding effectiveness ? -80dB, dielectric withstanding voltage is 325VRMS
- Mating cycle is 500, frequency range from DC to 65GHz
- Stainless steel shroud and sleeve
- Beryllium copper with gold finish contact
- PTFE insulator
- Temperature range from -65°C to +165°C
Applications
Industrial
Product details
Other details
| Brand | AMPHENOL SV MICROWAVE |
| Part Number | SF3211-6004 |
| Quantity | Each |
| Technical Data Sheet EN |  |
