Description
Product Overview

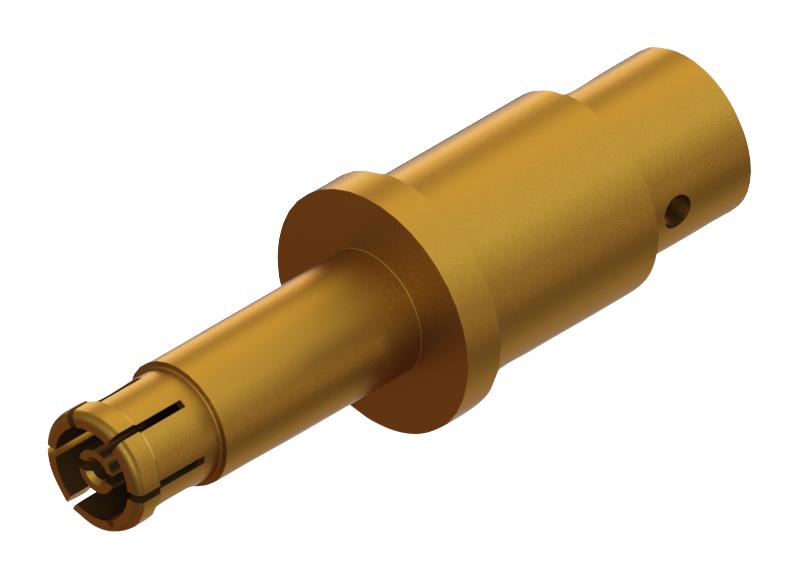

The 3221-4002 from SV Microwave - Amphenol is a SMPM female T-flex 405 cable fit M38999 size 12 insert. This straight jack has gold per ASTM B488, type II, code C, class 1.27, over nickel per AMS-QQ-N-290, class1, 0.00005" minimum body, insert and contact finish.
- Beryllium copper per ASTM B196, alloy no. UNS C17300, TD04 body and contact material
- Brass per ASTM B16, alloy UNS no. 36000 insert
- PTFE per ASTM D1710, type I, grade 1, class B insulator
- 50 ohm impedance
- DC to 65GHz frequency range
- DWV of 325VRMS
- VSWR of 1.10:1 DC to 26.5GHz, 1.30:1 typical to 50GHz, insertion loss of 0.12 X SQRT(F(F IN GHz)
- 5000Mohm minimum insulation resistance
- 2mohm max outer and 6mohm max inner conductor contact resistance
Product details
Other details
| Brand | AMPHENOL SV MICROWAVE |
| Part Number | 3221-4002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
