Description

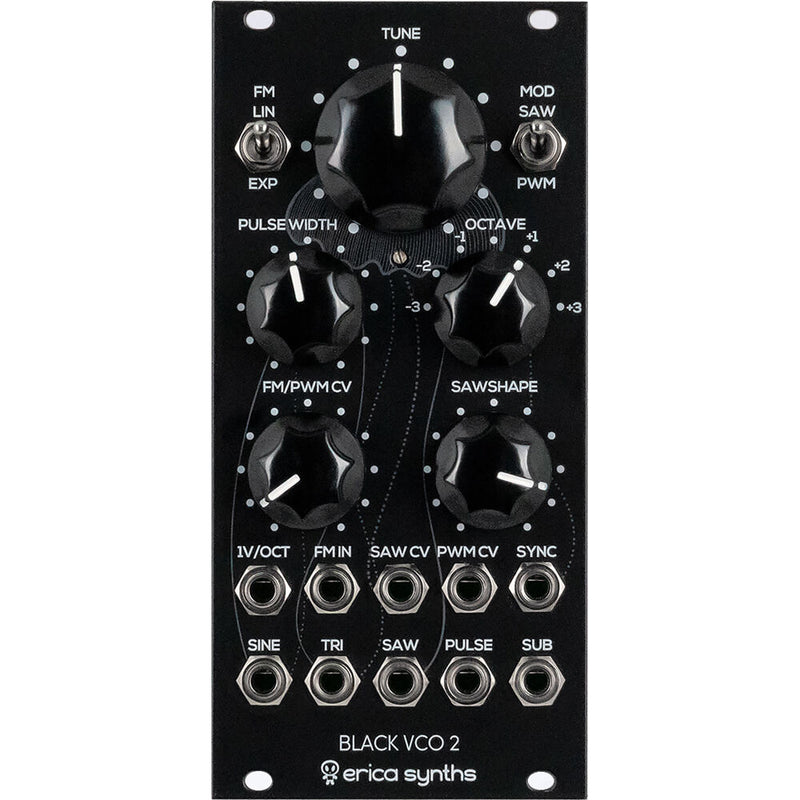

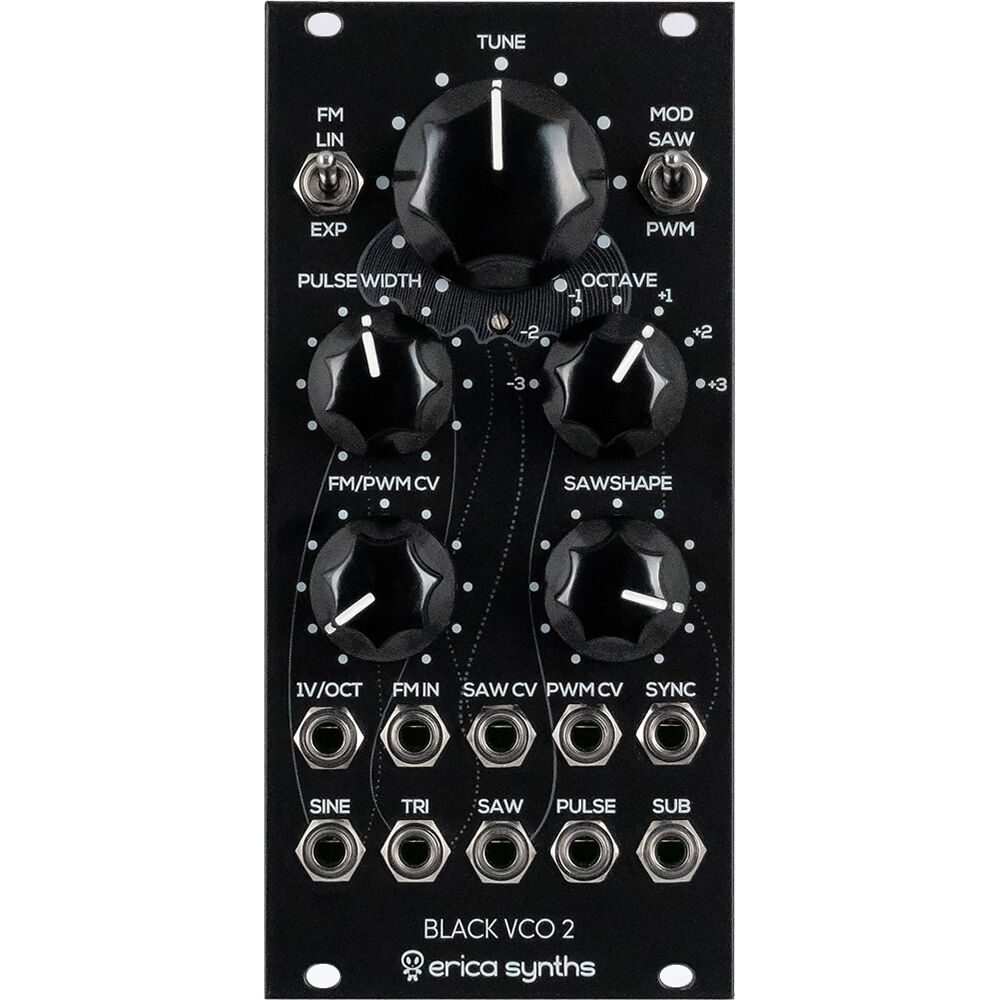

Erica Synths VCO2 Suboscillator Generator Overview
Modular synthesizer enthusiasts looking for a highly accurate VCO with built-in sound-shaping capabilities should look no further than the erica synths Black VCO2, an all-analog yet stable Eurorack VCO with four simultaneous waveform outputs and a -1-octave transistor-based suboscillator that generates a distinctive rounded square wave. The Black VCO2 has built in saw waveshaper and two modulation LFOs allowing you to create dynamic waveforms without the need for additional modules. The module includes a power ribbon cable and a set of mounting screws.
- Simultaneous sine, triangle, saw, and pulse-wave outputs
- -1-octave suboscillator
- Highly accurate and stable tracking across 8 octaves
- Saw waveshaper with manual and CV control
- Manually adjustable and CV-controlled pulse width
- Exponential/linear FM input with an attenuator
- 2 built-in modulation LFOs
- Synchronization input
- Octave knob switches -3 through +3 octaves
- 1V/oct input tracks across at least 8 octaves
- Skiff-friendly design
- Power consumption: +71mA / -62mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths Black VCO2 Eurorack Module (12 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths VCO2 Suboscillator Generator Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
5x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
71 mA on +12 V Rail
62 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
1x Fixed (FM, Sawtooth, Sine, Square, Triangle)
1x Fixed Sub (Square) |
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
5x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
10 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
71 mA on +12 V Rail
62 mA on -12 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.545 lb
|
| Box Dimensions (LxWxH) |
8.3 x 4.8 x 2.4"
|
