Description
Erica Synths Spring Reverb Overview
Modular synthesizer enthusiasts looking for an authentic spring reverb with tons of character will be impressed with the erica synths Black Spring Reverb, a Eurorack compatible module that features a compact and skiff-case-friendly reverb tank. The module includes a vactrol-based audio compressor and a feedback send-and-return circuit for processing just the reverb.
The module has built-in feedback effects�pitch shifters, delay, ring-modulator, etc; feedback amount and effect parameters can be controlled manually and via CV, making the module an experimental instrument on its own. The module also includes an RCA send and return for connecting to an additional spring reverb tank. The module can use the internal, external or both reverb tanks simultaneously. The Black Spring Reverb includes a ribbon power cable and mounting screws.
- Compact spring reverberation tank to install in a skiff case
- Manually and CV-controlled feedback amount
- Vactrol-based compressor
- 7 distinct feedback effects
- Selection for internal or external reverberation tanks or combination of both. (The module is designed to be used with wide variety of spring tanks, but the best results will be using tanks with low input impendence 8 to 200 ohms.)
- Feedback Send and Return jack sockets
- Reverb Tank: 7.5 x 2.6 x 0.9" / 19.0 x 6.7 x 2.4 cm
- Power Consumption: 143mA at +12V; 71mA at -12V
- Module Depth: 1.2" / 30mm
- Ringmod
- Creeper
- Handsaw
- Delay
- Pitch Shifter
- Haunted Shifter
- Springhausen
- Bypass
In the Box

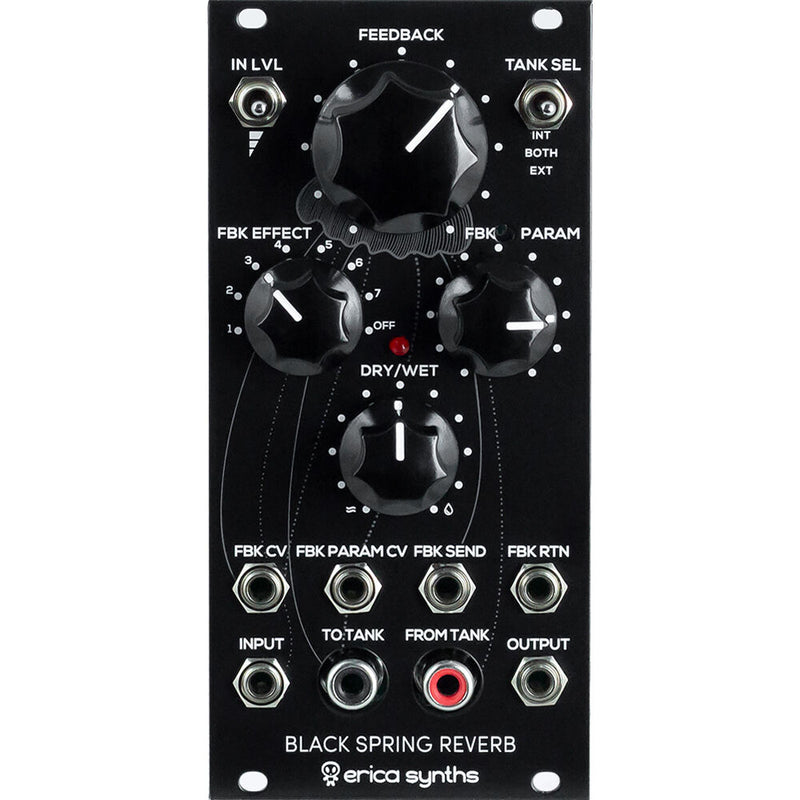

- Erica Synths Black Spring Reverb Eurorack Module (12 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
Erica Synths Spring ReverbSpecs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Output (Eurorack Compatible) 1x RCA TS Unbalanced Mono Input 1x RCA TS Unbalanced Mono Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
143 mA on +12 V Rail
71 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
1x Reverb: Spring
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Output (Eurorack Compatible) 1x RCA TS Unbalanced Mono Input 1x RCA TS Unbalanced Mono Output |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
±5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
143 mA on +12 V Rail
71 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
| Package Weight |
0.61 lb
|
| Box Dimensions (LxWxH) |
8.5 x 4.2 x 3.2"
|
