Product details
Technical Specifications
Drain Source Voltage Vds P Channel
40V
Continuous Drain Current Id P Channel
52A
Drain Source On State Resistance P Channel
0.0062ohm
Power Dissipation P Channel
40W
Drain Source Voltage Vds N Channel
40V
Continuous Drain Current Id N Channel
52A
Drain Source On State Resistance N Channel
0.0062ohm

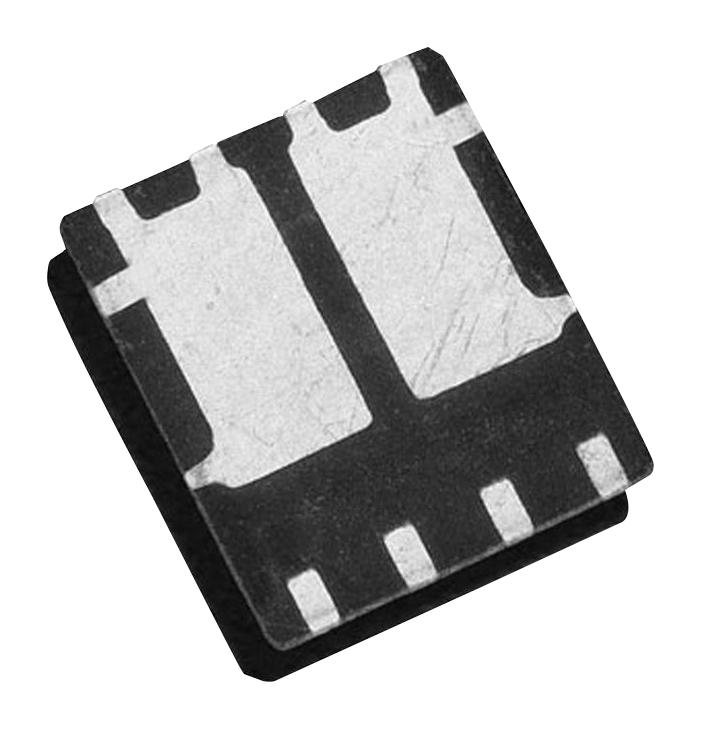

Transistor Case Style
DFN
Power Dissipation N Channel
40W
Operating Temperature Max
175°C
Other details
Brand |
ONSEMI |
Part Number |
NVMFD5C466NLWFT1G |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
 |
