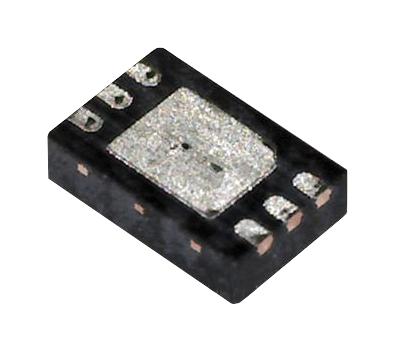

ANALOG DEVICES HMC646LP2E RF Switch, 100MHz to 2.1GHz, 10V, -40°C to 85°C, QFN-EP-6

HMC646LP2E is a SPDT switch in a leadless DFN surface mount plastic package for use in transmit/receive and LNA protection applications which require very low distortion and high power handling of up to 40 watts with less than 10% duty cycle. This robust switch can control signals from 100 - 2100MHz and is ideal for TD-SCDMA / 3G repeaters, PMR, automotive telematics, and satellite subscriber terminal applications. The design provides exceptional P0.1dB of +46 dBm and +74 dBm IIP3 on the Transmit (Tx) port. The failsafe topology provides a low loss path from Tx to RFC, when no DC power is available. Applications include LNA protection & T/R switching, TD-SCDMA / 3G infrastructure, satellite subscriber terminals, private mobile radio & public safety handsets, automotive telematics.

• Fail-safe operation; Tx �On� when unpowered
• Frequency range from 869 to 960MHz
• Insertion loss is 0.3dB typical at (Tx - RFC, TA = +25°C)
• Isolation is 27dB typical at (Tx - RFC, TA = +25°C)
• Input power for 0.1dB compression is 44dBm typical at (Tx - RFC, TA = +25°C)
• Input third order intercept is 71dBm typical at (Tx - RFC, TA = +25°C)
• Switching characteristics tRISE, tFALL (10/90% RF) is 100ns typical at (TA = +25°C)
• Operating temperature range from -40°C to +85°C
• DFN SMT package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
