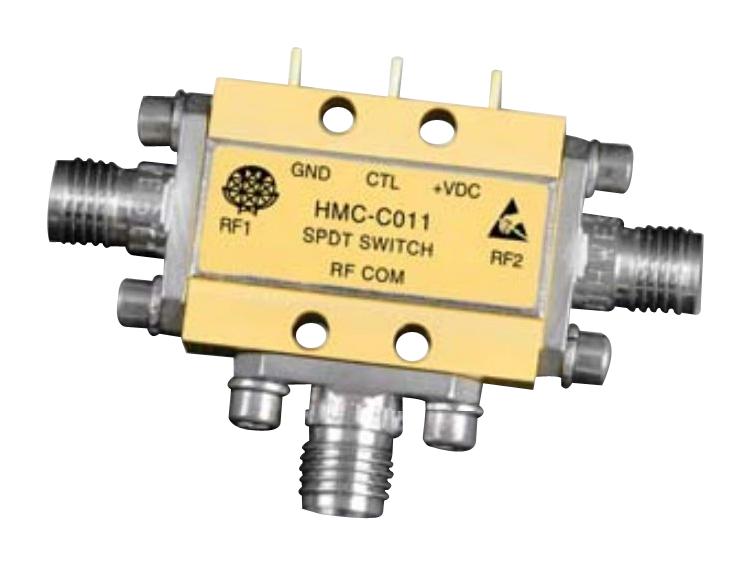

ANALOG DEVICES HMC-C011 RF Switch, 0Hz to 20GHz, 7V, -55°C to 85°C, Module

HMC-C011 is a general purpose broadband high isolation non-reflective GaAs MESFET SPDT switch housed in a miniature hermetic module with field replaceable SMA connectors. Covering DC to 20GHz, the switch offers high isolation and low insertion loss. The switch features >45dB isolation up to 5GHz and >35dB isolation up to 20GHz. CMOS interface allows a single positive +5V bias voltage at very low DC currents. Applications include base station infrastructure, fibre optics & broadband telecom, microwave radio & VSAT, military radios, radar, & ECM, test instrumentation.

• Fast switching, non-reflective design
• Hermetically sealed module, field replaceable SMA connectors
• Insertion loss is 1.8dB typical at (DC - 4GHz, TA = +25°C)
• Isolation is 46dB typical at (DC - 4.0GHz, TA = +25°C)
• On state return loss is 15dB typical at (DC - 12.0GHz, TA = +25°C)
• Input power for 1dB compression is 23dBm typical at (0.5 - 20.0GHz, TA = +25°C)
• Switching transients is 20mVpp typical at (DC - 20GHz, TA = +25°C)
• Operating temperature range from -55°C to +85°C
