Description
Product Overview

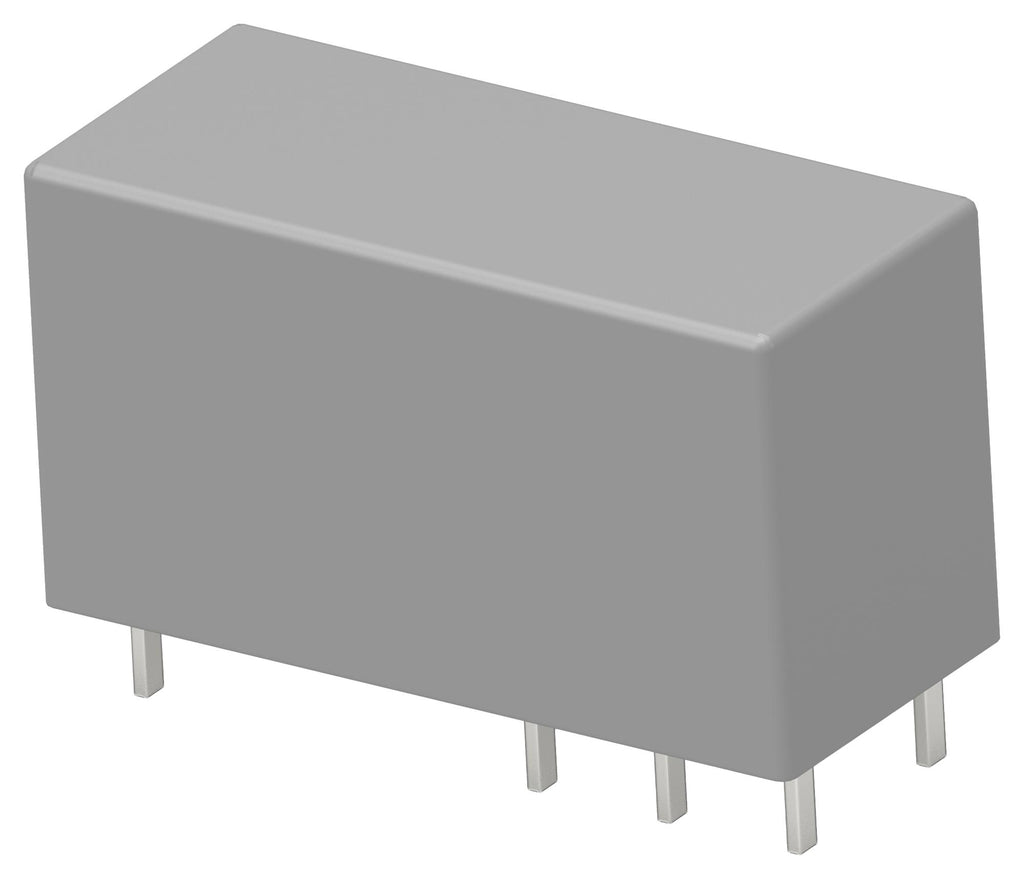

7-1393239-7 is a general purpose, power PCB relay (RT1 bistable). It is approved by VDE Cert.No.40007571, UL E214025, cCSAus 1142018 CQC 18002197364. Typical applications include battery powered equipment or applications with memory function.
- 5KV/10mm coil-contact, reinforced insulation
- Product in accordance to IEC60335-1
- Contact number of pole is 1, 1 form C SPDT-CO contact arrangement
- 21ohm coil resistance, 400VAC maximum contact switching voltage
- 1000Vrms insulation initial dielectric between open contacts
- 16A contact limiting breaking/continuous current, 250VAC contact voltage rating
- 16A contact current rating, 3VDC coil voltage rating
- AgNi90/10 contact material, RTII environmental category of protection
- Operating temperature range from -40 to 85°C
- 15.7mm height, 29mm length, 12.7mm width
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 7-1393239-7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
