| ₹ 14545.53 includes GST and import duties. | |
| B2B customers can avail ₹ 2218.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

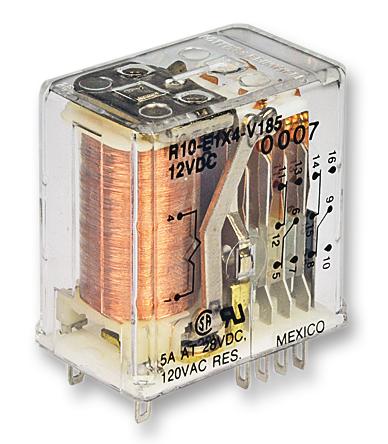

6-1393765-0 is an R10 series cradle-style relay with form C contacts. It is a versatile solution designed to meet a wide range of application needs. Applications include coin changers, audio equipment, elevators, traffic controls, ultrasonic test equipment, and parking toll readers.
- UL E29244, CSA LR15734 approved
- Contact number of poles are 4, bifurcated/twin contacts
- 4 form C 4PDT-CO contact arrangement
- 10000Mohm insulation initial resistance, 700 ohm coil resistance
- 300mA at 12V minimum contact switching load
- 1000Vrms insulation initial dielectric between adjacent contacts
- 5A contact limiting breaking/continuous current, 5A contact current rating
- 24VDC coil voltage, 120VAC contact voltage
- RTI environmental category of protection, -55 to 75°C operating temperature range
- 29.97mm height, 24.13mm length, 18.66mm width
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 6-1393765-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14254.62 |
| 3-5 | ₹ 14109.16 |
| 5-10 | ₹ 13818.25 |
| 10+ | ₹ 13527.34 |
Bulk discount will be automatically applied during checkout based on quantity.
