Description
Product Overview

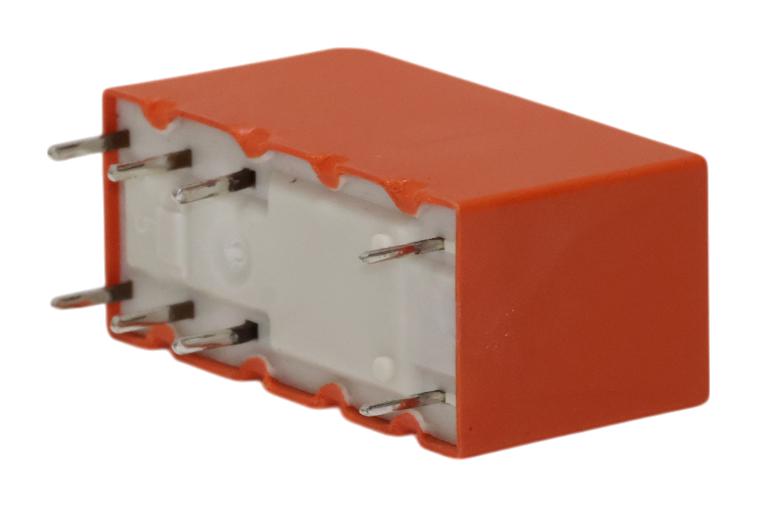

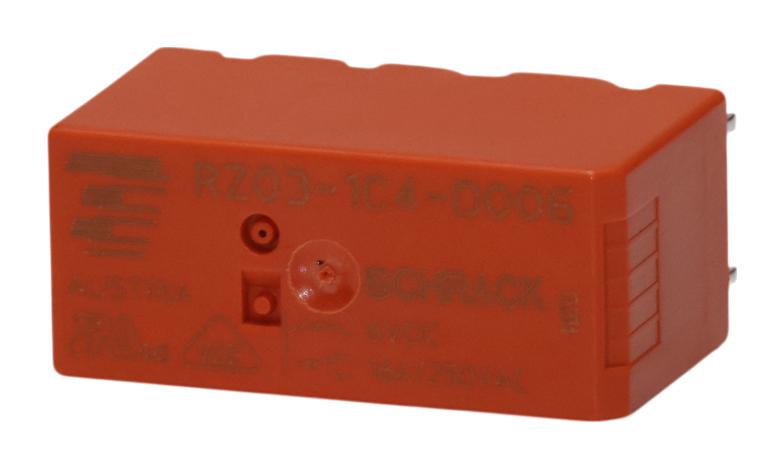

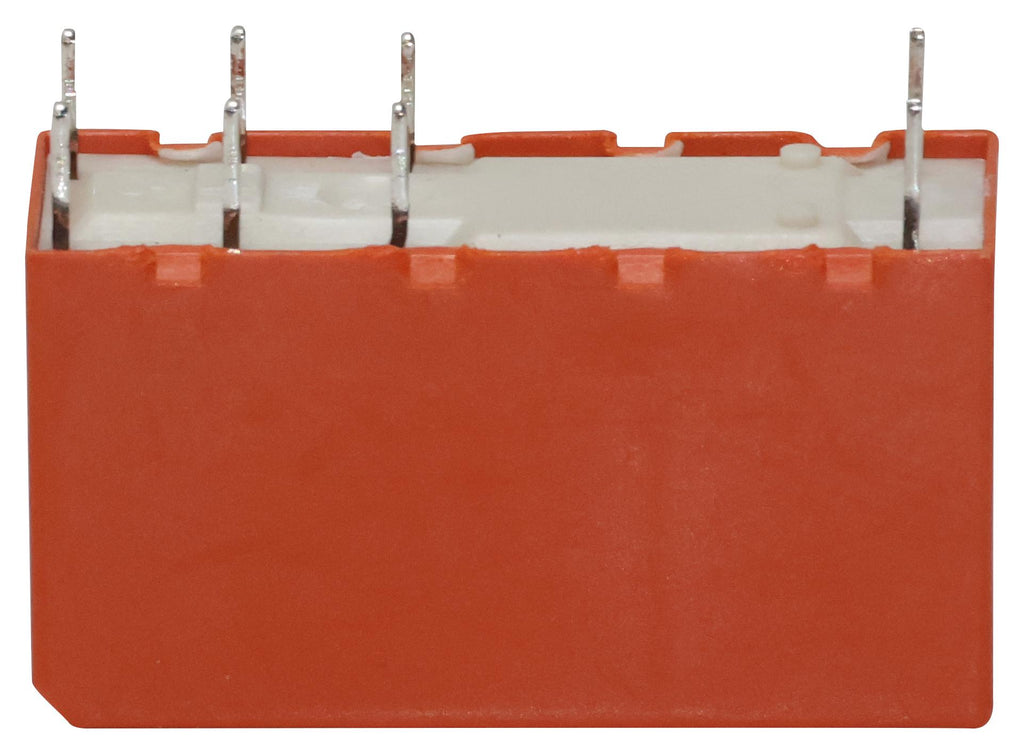

2-1415899-0 is an RZ series general purpose power PCB relay. It is suitable for a broad range of applications within the industrial, building automation and equipment and in appliance industries. This relay features a unique weld breaker mechanism to overcome micro welding and help improve life time. Applications include heating elements, pump controls, boiler control, heating systems controllers, air conditioning systems, lighting, timer, door control, time switches, interface modules, machinery controls, energy controls and distribution.
- Global standard platform for 16 amp applications
- IEC 60335-1 compliant, new glow wire tests, UL, VDE and CQC approved
- 1 form C SPDT-CO contact arrangement, single pole
- 90 ohm coil resistance, 400VAC max contact switching voltage
- Insulation initial dielectric between open contacts is 1000Vrms
- 16A contact current rating, 6VDC coil voltage rating
- 250VAC contact voltage rating, 0.4W coil power rating DC
- AgNi90/10 contact material
- 15.7mm height, 29mm length, 12.7mm width
- Environmental ambient temperature class range from 70 to 85°C
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 2-1415899-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
