Description
Product Overview

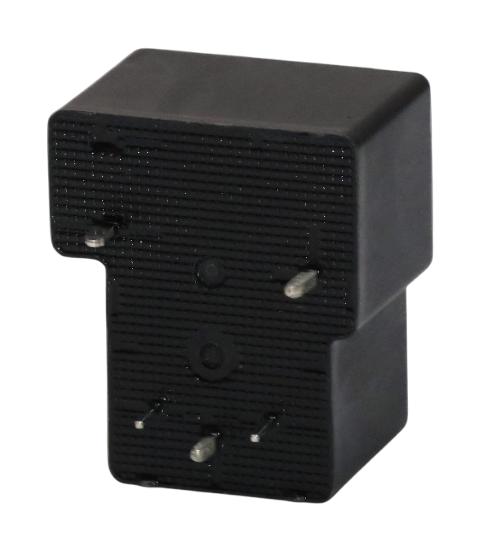

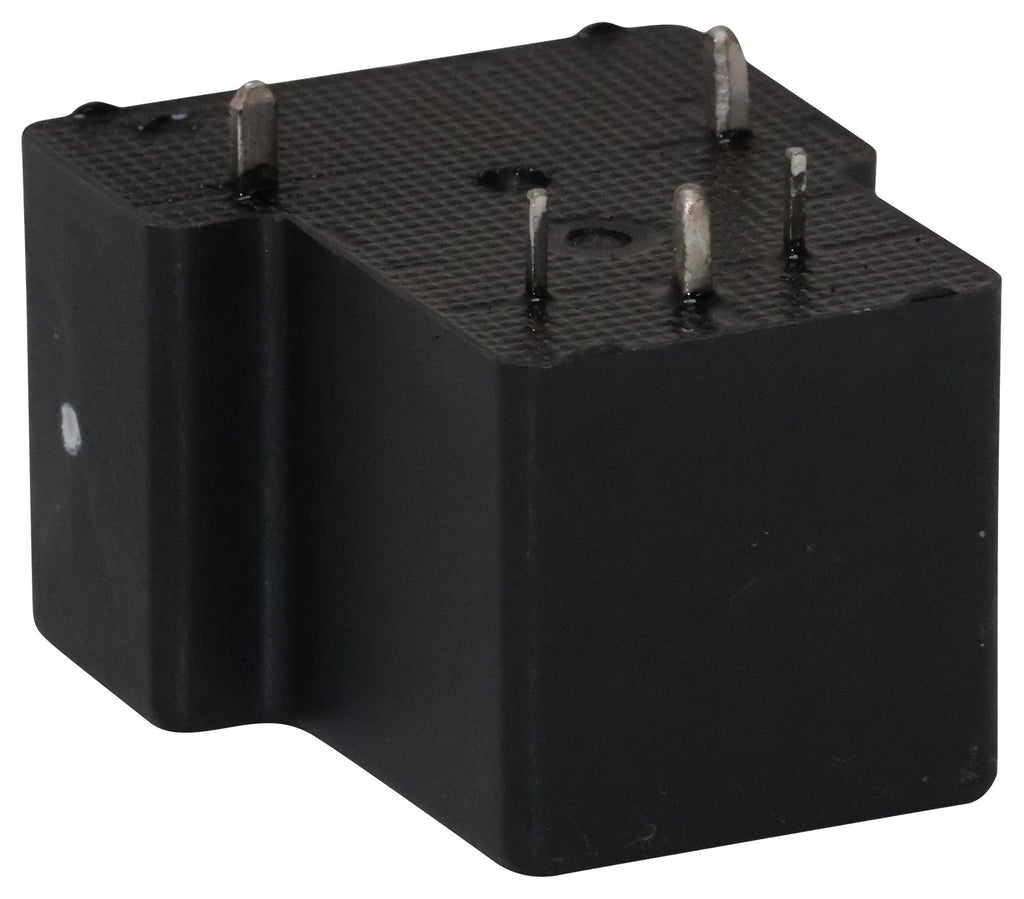

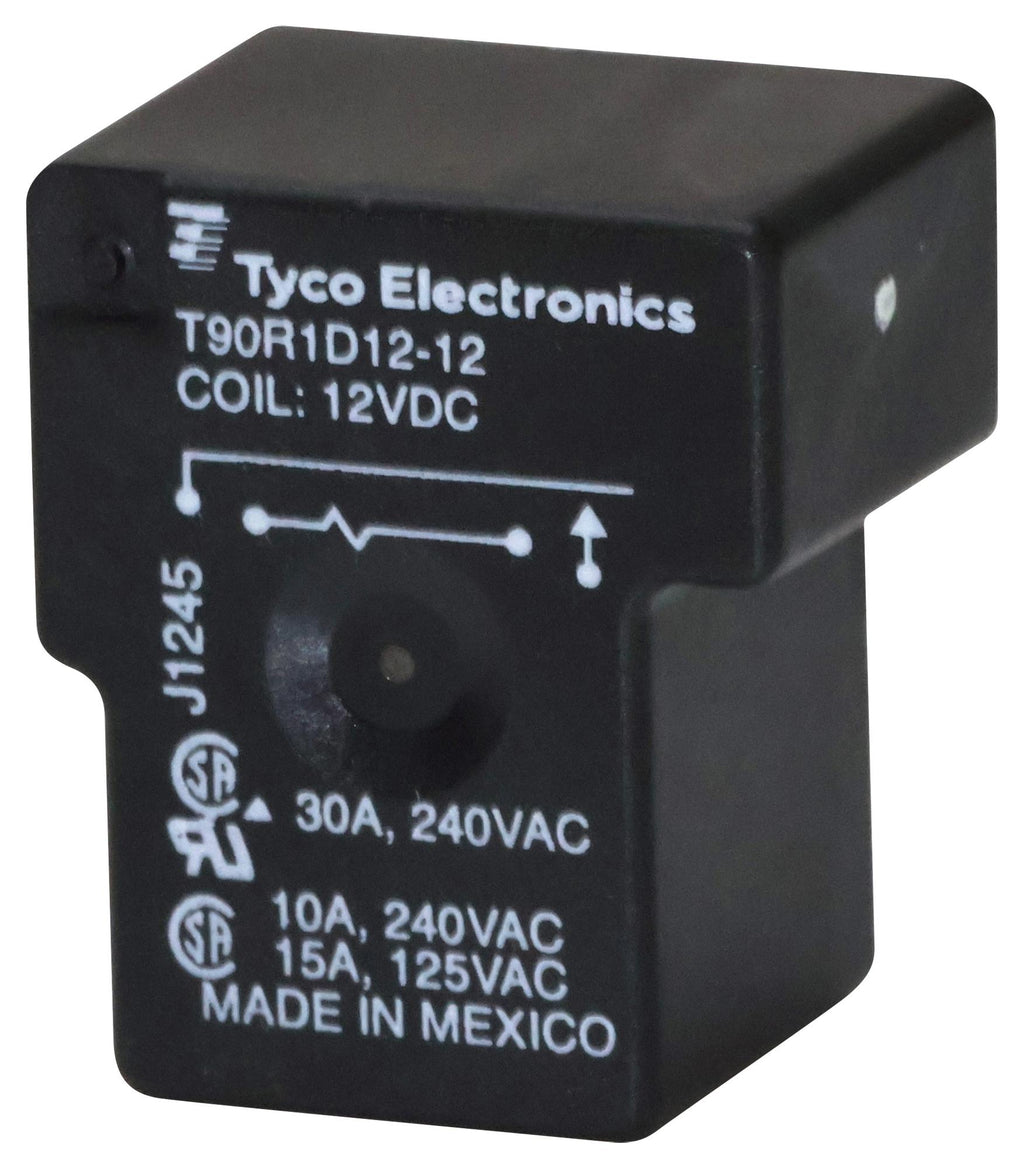

1393209-4 is a general purpose, high power PCB relay. Typical applications include HVAC, appliances, industrial controls. It is approved by UL E22575; CSA LR15734.
- Meets UL 508 and 873 spacing - 3.18 through air, 6.36 over surface
- UL class F insulation system standard
- SPST-NO contact configuration
- 30A contact current
- 277VAC contact voltage
- 155ohm coil resistance
- 12VDC coil voltage
- 30A rated limiting continuous/making/breaking current
- AgCdO contact material
- Ambient temperature range from -55 to +85°C DC coil
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1393209-4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
