Description
Product Overview

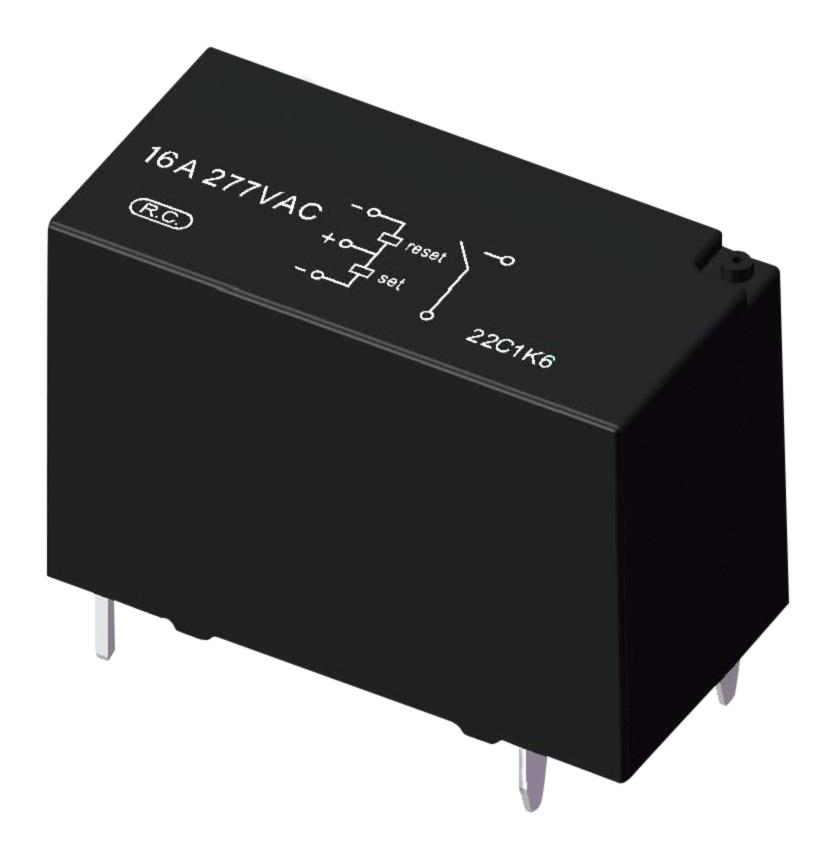

MPHKE6L-S-DC5V-A-L1 is a single coil, NO, PCB type power relay. Main applications include white household appliances, intelligent home control system, lighting control.
- Microminiature, magnetic latching relay, 16A of switching capability
- Inrush current: 260A, comply to IEC 60335-1
- Dielectric strength of 4KV between coil and contacts
- 1 Form A contact Form, Ag alloy contact material
- 100mohm (6VDC/1A) max contact resistance, 100Mohm 500VDC min insulation resistance
- 15ms max operate time and release time, 1×10^6 (180ops/min) mechanical life
- 5VDC nominal voltage, 100 ohm ±10% coil resistance
- 4VDC operate voltage, 4VDC reset voltage, 0.25W coil power
- Operating temperature range from -40°C to +85°C
- Dimension is 20.2mm × 10mm × 14.0mm
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPHKE6L-S-DC5V-A-L1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
