Description
Product Overview

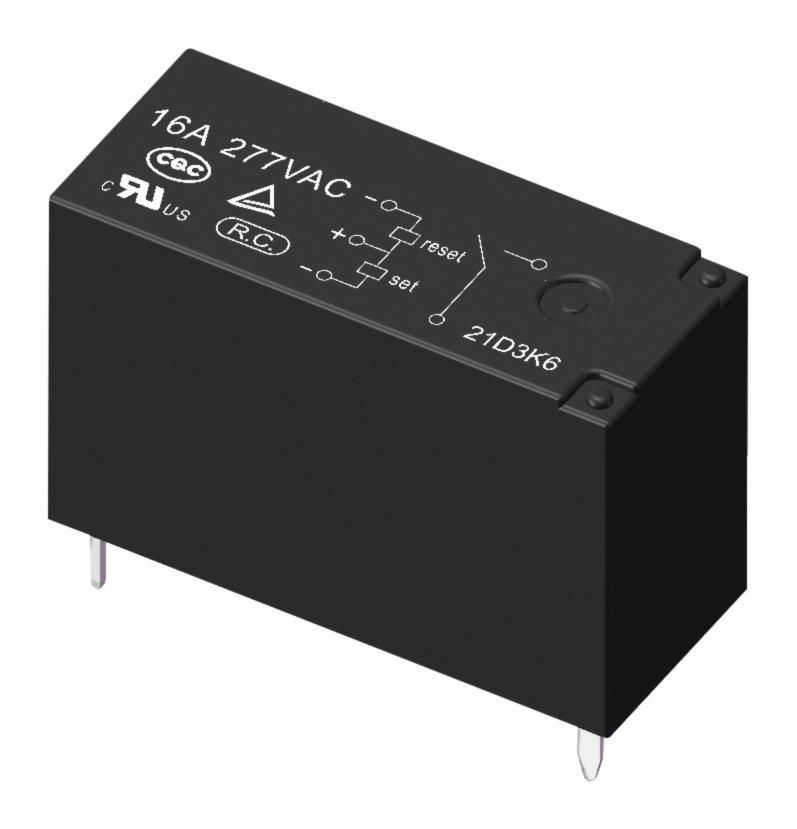

MPHKE3LT-S-DC5V-A-L2 is a double coil, NO, PCB type power relay. It complies with IEC 60335-1: household and similar electrical appliances-safety. Main applications include domestic appliances, building control, lighting control, smart meter control.
- Magnetic latching relay, 20A magnetic latching relay
- High sensitivity, dielectric strength of 5000V between coil and contacts
- 1 Form A contact form, Ag alloy contact material
- 100mohm (6VDC/1A) max contact resistance, 1000Mohm 500VDC min insulation resistance
- 15ms max operate time and release time, 1×10^6 (180ops/min) mechanical life
- 5VDC nominal voltage, 62.5ohm ±10% (set), 62.5 ohm ±10% (reset) coil resistance
- 4VDC operate voltage, 4VDC reset voltage, 0.4W coil power (set and reset)
- Operating temperature range from -40°C to +85°C
- Outline dimension is 24mm × 10mm × 15.8mm
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPHKE3LT-S-DC5V-A-L2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
