Description
Product Overview

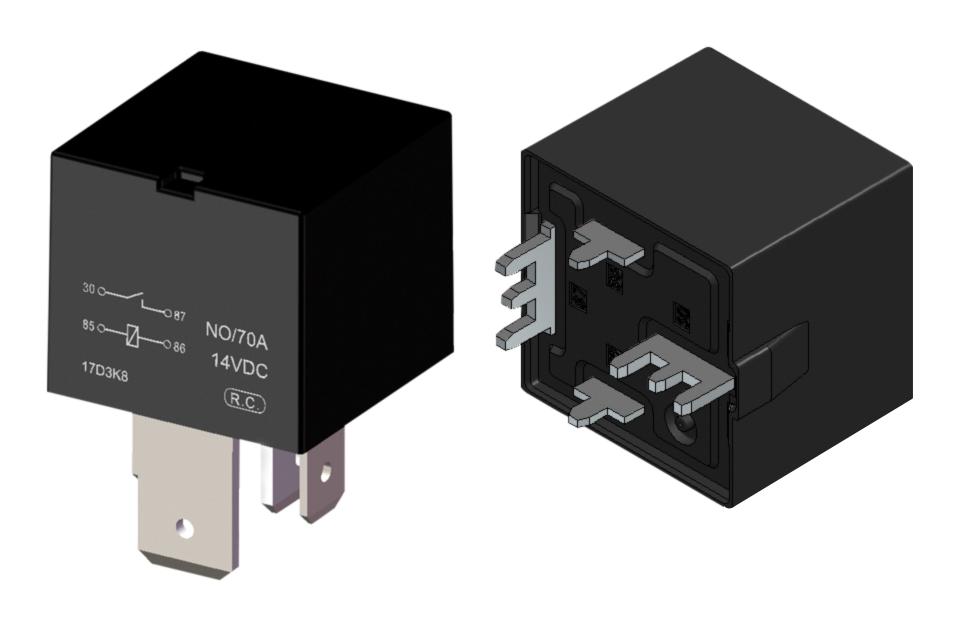

MPCMA36N-DC12V-A-R is an unsealed, NO, quick connect type automotive relay.
- General purpose automotive relay, 70A of switching capability
- Quick connect terminals and PCB terminals
- 1 Form A contact form, Ag alloy contact material
- 50mohm (24VDC/1A) max contact resistance, 100Mohm 500VDC min insulation resistance
- 100,000 cycles electrical life, 1,000,000 Cycles (300 cycles/minutes) mechanical life
- 10ms max operate time and 10ms max release time
- 12VDC nominal voltage, 90 ohm coil resistance (±10%)
- 7.8VDC operate voltage, 1.2VDC release voltage, 1.6W coil power
- Operating temperature range from -40°C to +125°C
- Dimension is 26.6mm × 26mm × 22.7mm
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPCMA36N-DC12V-A-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 637.68 |
| 3-5 | ₹ 631.17 |
| 5-10 | ₹ 618.16 |
| 10+ | ₹ 605.14 |
Bulk discount will be automatically applied during checkout based on quantity.
