Description

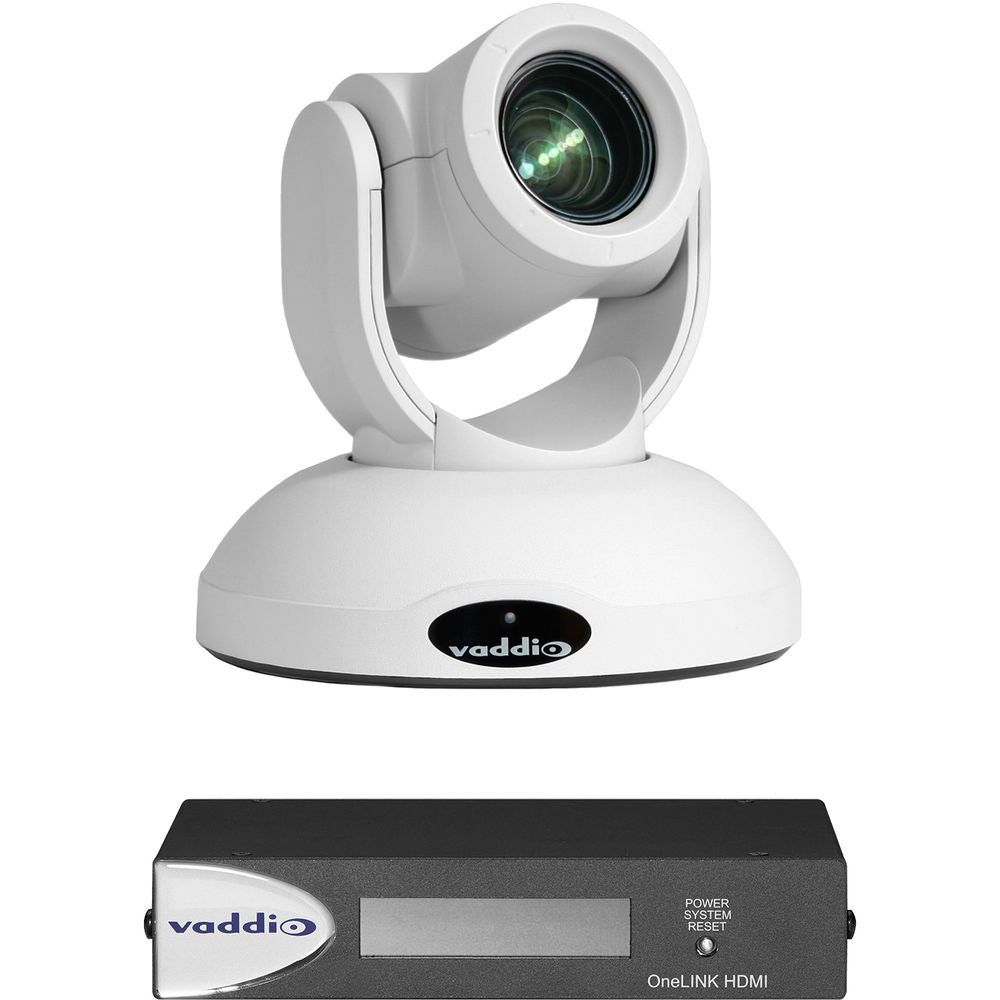

Vaddio RoboSHOT 20 Overview
The RoboSHOT 20 UHD OneLINK HDMI System from Vaddio combines a white RoboSHOT 20 UHD PTZ camera and OneLINK HDMI interface. It is suitable for use in distance learning and corporate environments. The system captures 3840 x 2160 video at 30p from a single 1/2.3"-type Exmor sensor and transmits it up to 328' over CAT5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.
The PTZ camera features a 20x total zoom range with 74° angle of view at wide, with a 4.8° angle of view at maximum zoom in. The OneLINK features an HDMI video output as well as bidirectional RS-232 and Ethernet ports.

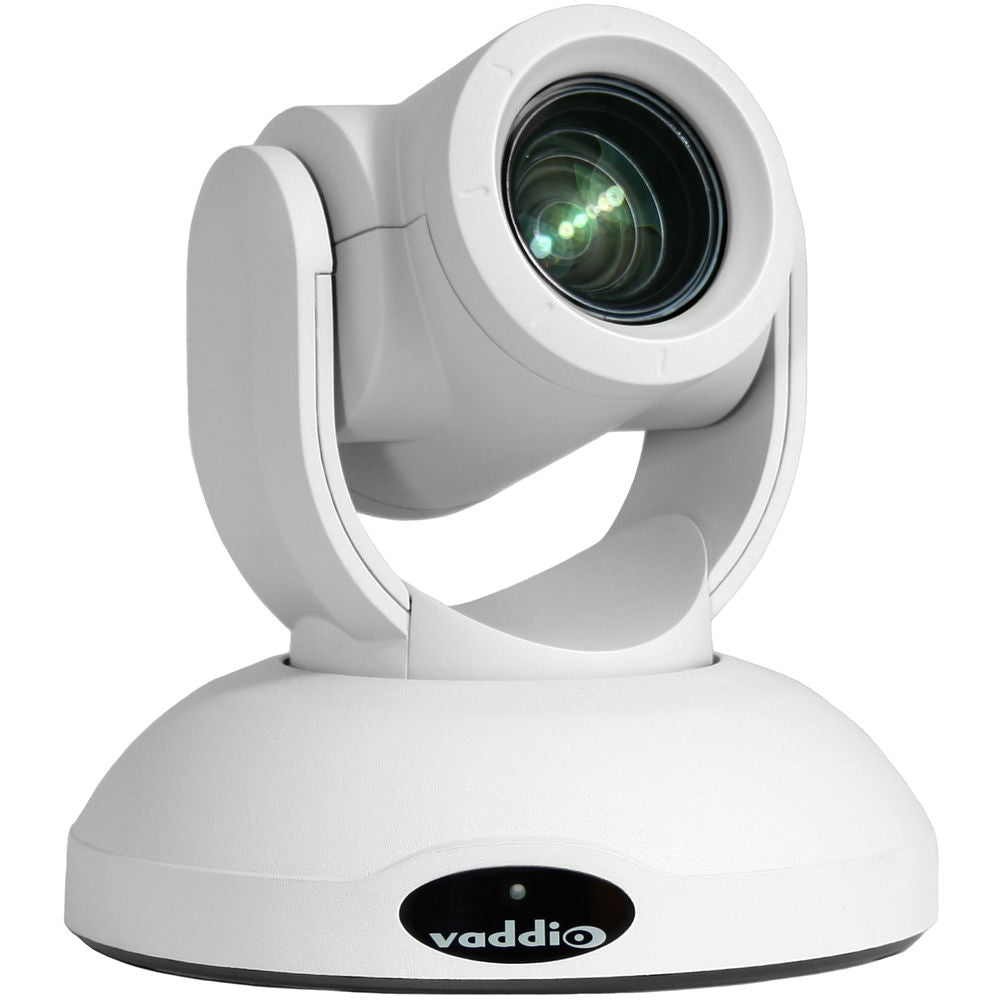

Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)
This white RoboSHOT 20 UHD Ultra High Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3"-type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

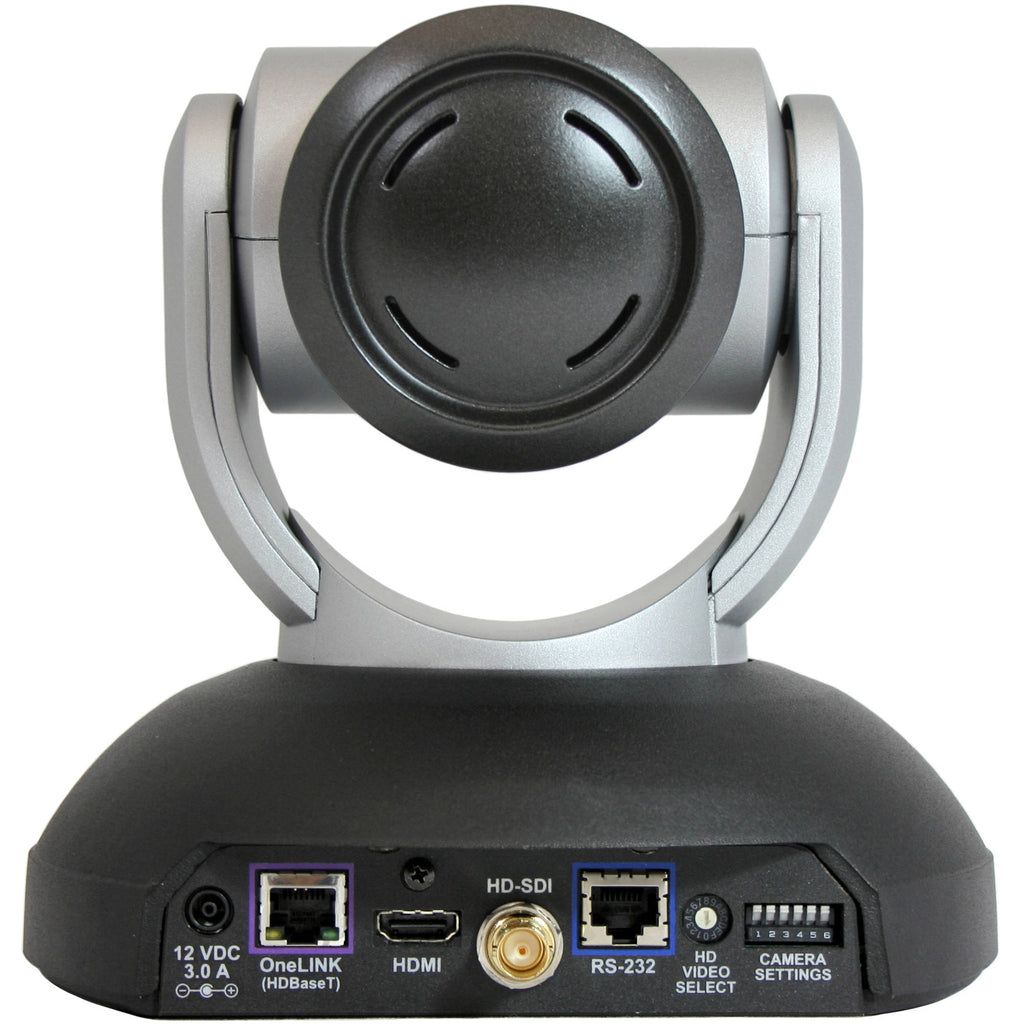

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.
Status Indicator LED
- Purple - Boot-up and Standby modes.
- Blue - Normal operation and is a power on, ready condition.
- Blinking blue - The camera has received IR from the remote or other IR source.
- Red - Tally function; shows that the camera is on-air.
- Blinking red - Fault condition.
- Yellow - Firmware update is in progress.

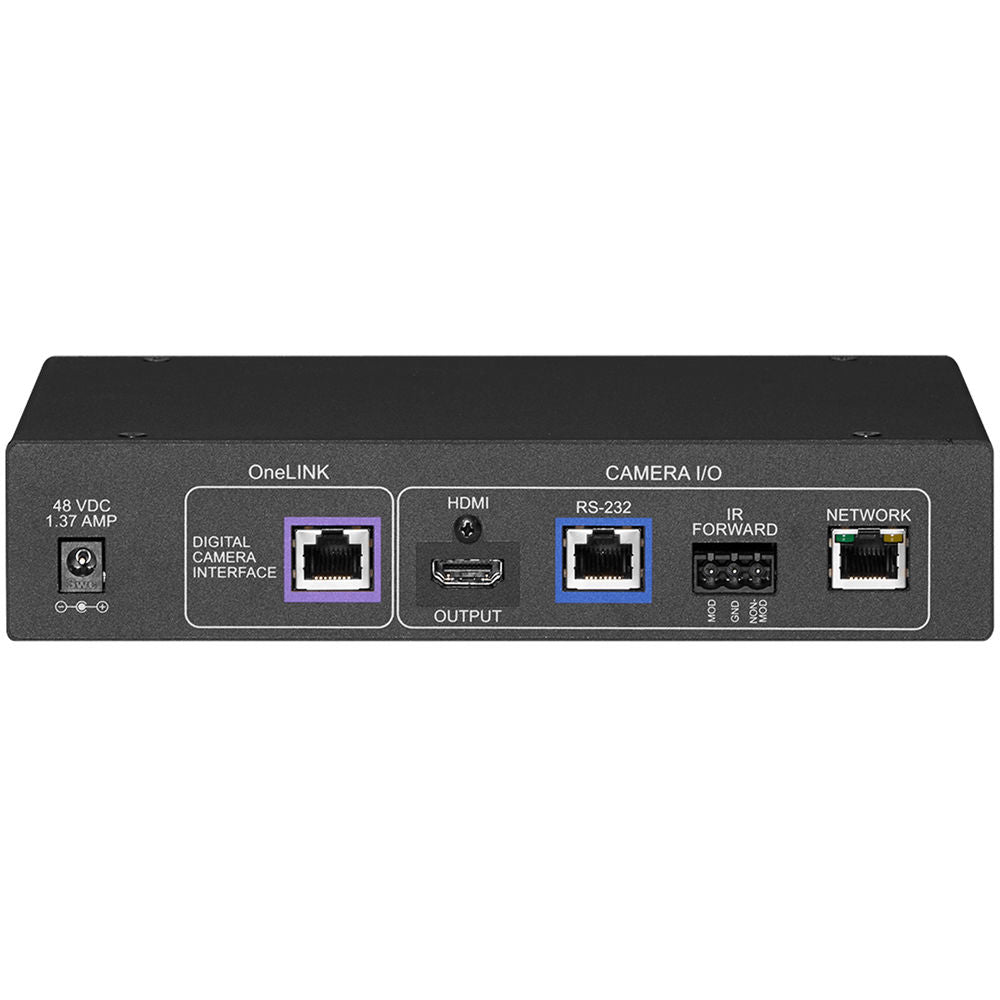

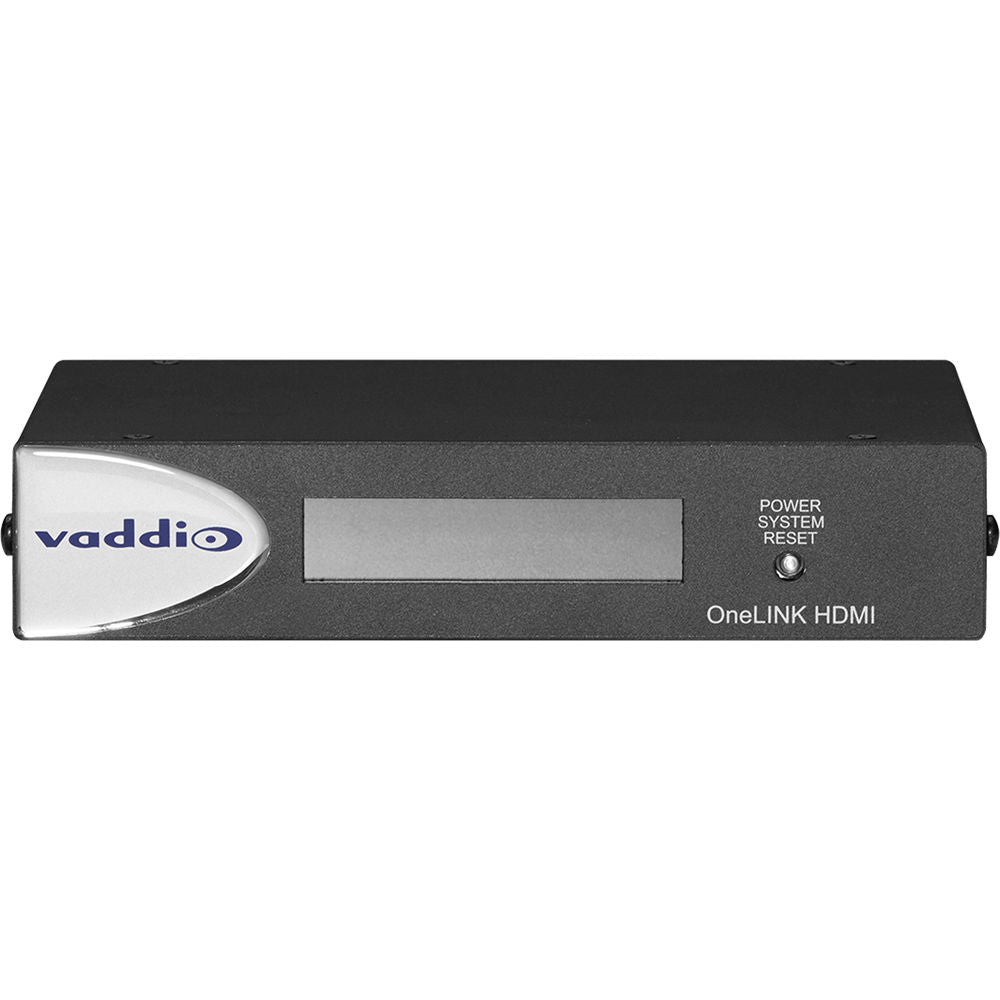

Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328'
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60
In the Box
- Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)
- Vaddio IR Remote Commander
- AC Adapter (12 VDC, 3 A)
- North American Power Cord Set
- Thin Profile Wall Mount
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
- Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
- 48 VDC, 1.36A Switching Power Supply
- AC Cord Set
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White) Specs
| Sync System | Internal |
| Sensor | 1/2.3"-type Exmor R CMOS |
| Pixels | Total: 9.03 MP Effective: 8.93 |
| Minimum Illumination | Color: 3.0 lx (F1.8, 50IRE) |
| Zoom | Optical: 12x Digital: 1.67x Combined: 20x |
| Horizontal Field-of-View | Wide: 74° Tele: 4.8° |
| Focusing | Auto Focus Manual Focus Mode One-Push Trigger Mode |
| Minimum Focus Distance | Wide: 0.4" / 10 mm Tele: 59.1" / 1500 mm |
| White Balance | Auto ATW Indoor Outdoor One-Push Manual |
| Aperture/Detail | 16 Steps |
| Gain | Auto / Manual (0 to 33 dB) |
| Backlight Compensation | On/Off |
| Noise Reduction | 6 Steps |
| S/N Ratio | Over 50 dB |
| Output | Protocols HDMI HDBT HD-SDI IP (H.264) Aspect Ratio HDMI: 16:9 (all resolutions) IP (H.264) Streaming: 16:9, 3:2, 4:3 HDMI Resolutions/Frame Rates 3840 x 2160: 30/25 fps 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 3G-SDI 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 Streaming: Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30 |
| Pan | Angle: -160 to 160° Speed: 0.35°/sec to 120°/sec |
| Tilt | Angle: +90 to -30° Speed: 0.35°/sec to 120°/sec |
| Control | Vaddio IR remote commander Web interface Telnet RS-232 API (modified VISCA) |
| Power | 12 VDC, 3A power supply LTPoE |
| Temperature & Humidity | Operating 23 to 140°F / -5 to 60°C 20 to 80% RH (non-condensing) Storage -4 to 140°F / -20 to 60°C 20 to 95% RH (non-condensing) |
| Dimensions | 7.9 x 8.0 x 7.7" / 20.0 x 20.3 x 19.6 cm |
| Weight | 6.0 lb / 2.7 kg |
| Package Weight | 11.2 lb |
| Box Dimensions (LxWxH) | 13.5 x 13.5 x 11.8" |
Vaddio OneLINK HDMI Extension System for HDBaseT Cameras Specs
| Cable Run | Max: 328' / 100 m |
| Power | Input: 48 VDC, 1.36 A To Camera: 12 VDC, 3 A |
| Environmental | Operating/Storage Temperature: 32 to 104°F / 0 to 40°C Humidity: 20 to 80% RH (non-condensing) |
| Dimensions | 1.73 x 8.39 x 5.98" / 44 x 213 x 152 mm |
| Weight | 1.55 lb / 0.7 kg |
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 12.5 x 9 x 3.3" |
