| ₹ 1102965.0 includes GST and import duties. | |
| B2B customers can avail ₹ 168202.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Vaddio RoboSHOT 20 Overview

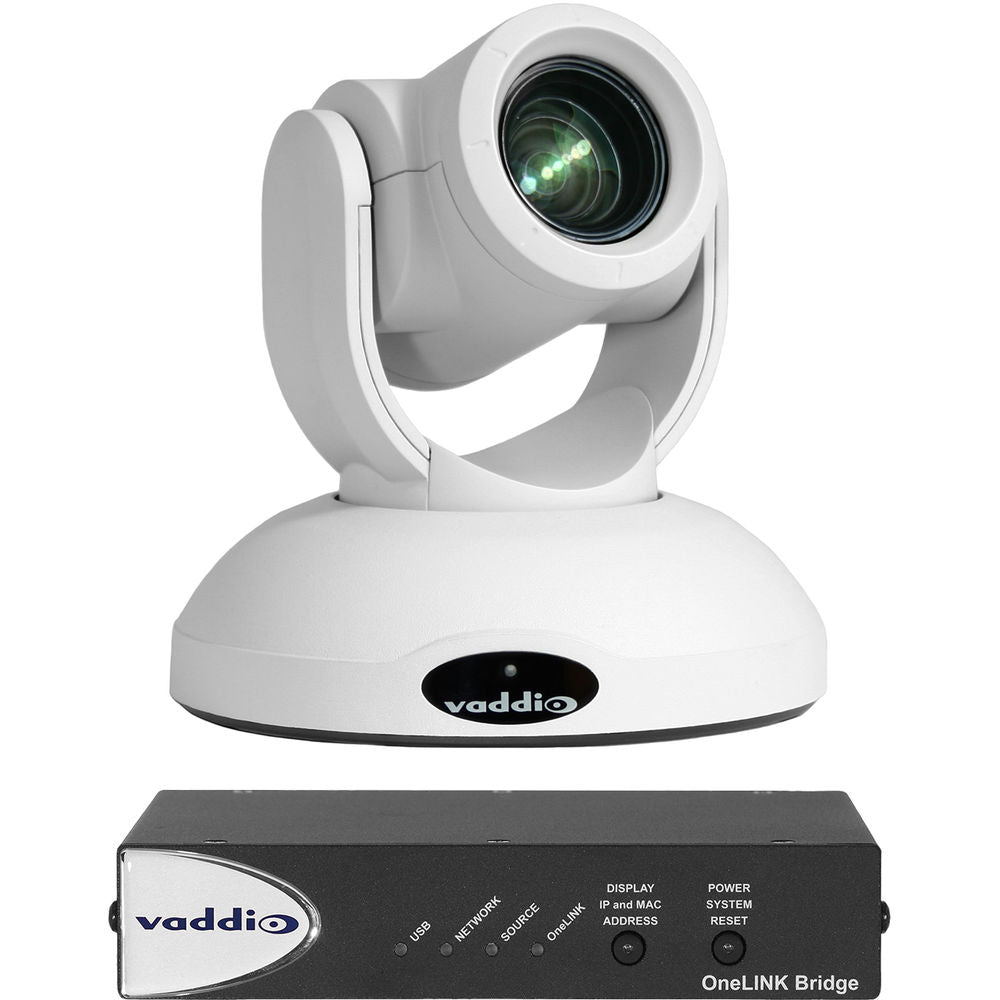

The RoboSHOT 20 UHD OneLINK Bridge System from Vaddio combines a white RoboSHOT 20 UHD PTZ camera and OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 3840 x 2160 video at 30p from a single 1/2.3"-type Exmor sensor and transmits it up to 328' over CAT5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.
The PTZ camera features a 20x total zoom range with 74° angle of view at wide, with a 4.8° angle of view at maximum zoom in. The OneLINK features HDMI, USB 3.0, and HD-SDI video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.

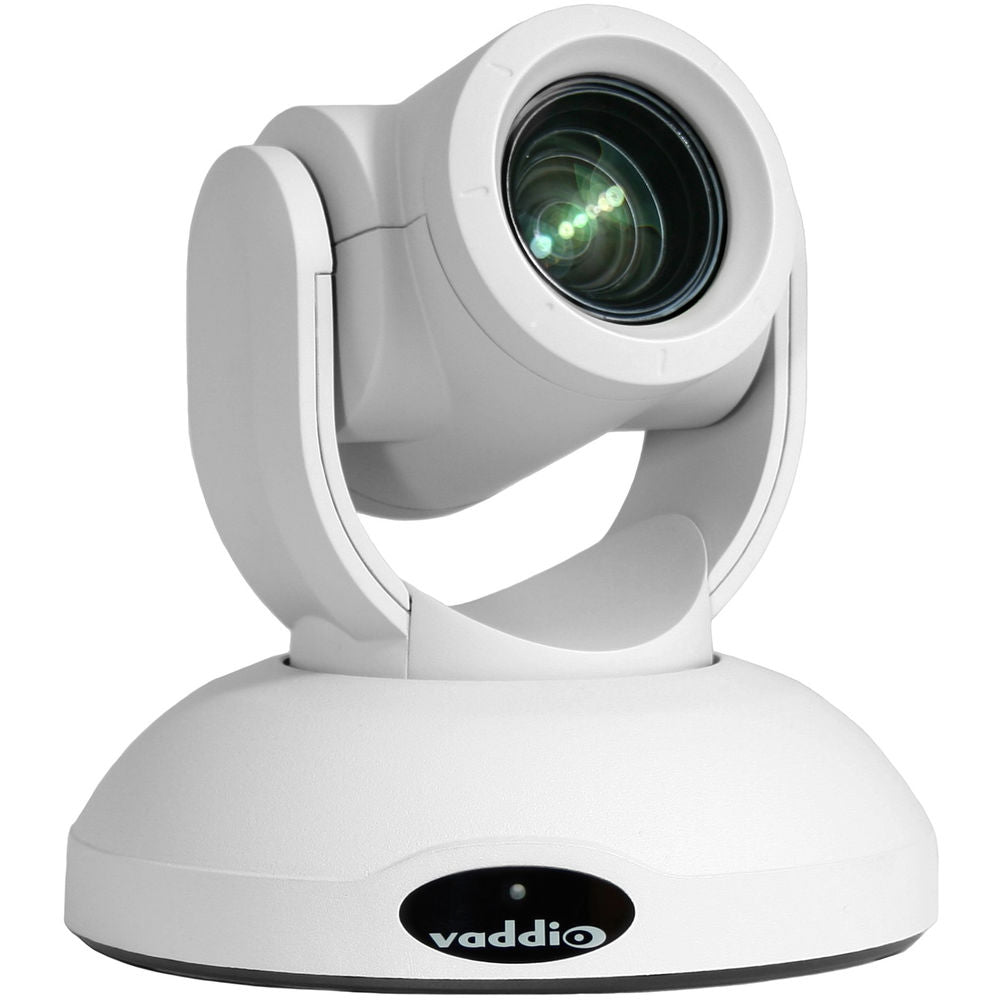

Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)
This white RoboSHOT 20 UHD Ultra High Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3"-type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

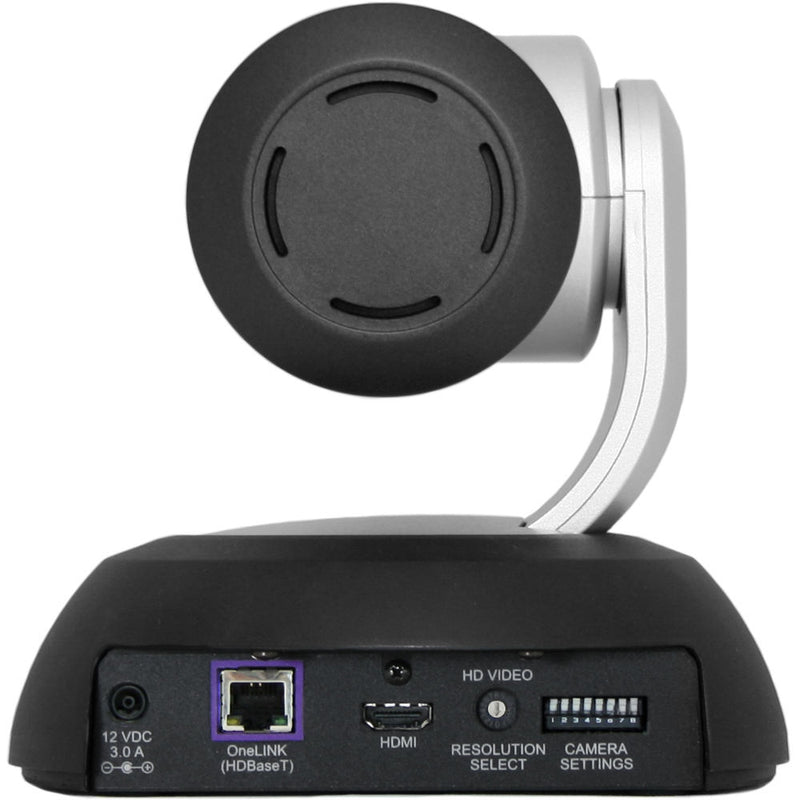

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.
Status Indicator LED
- Purple - Boot-up and Standby modes.
- Blue - Normal operation and is a power on, ready condition.
- Blinking blue - The camera has received IR from the remote or other IR source.
- Red - Tally function; shows that the camera is on-air.
- Blinking red - Fault condition.
- Yellow - Firmware update is in progress.

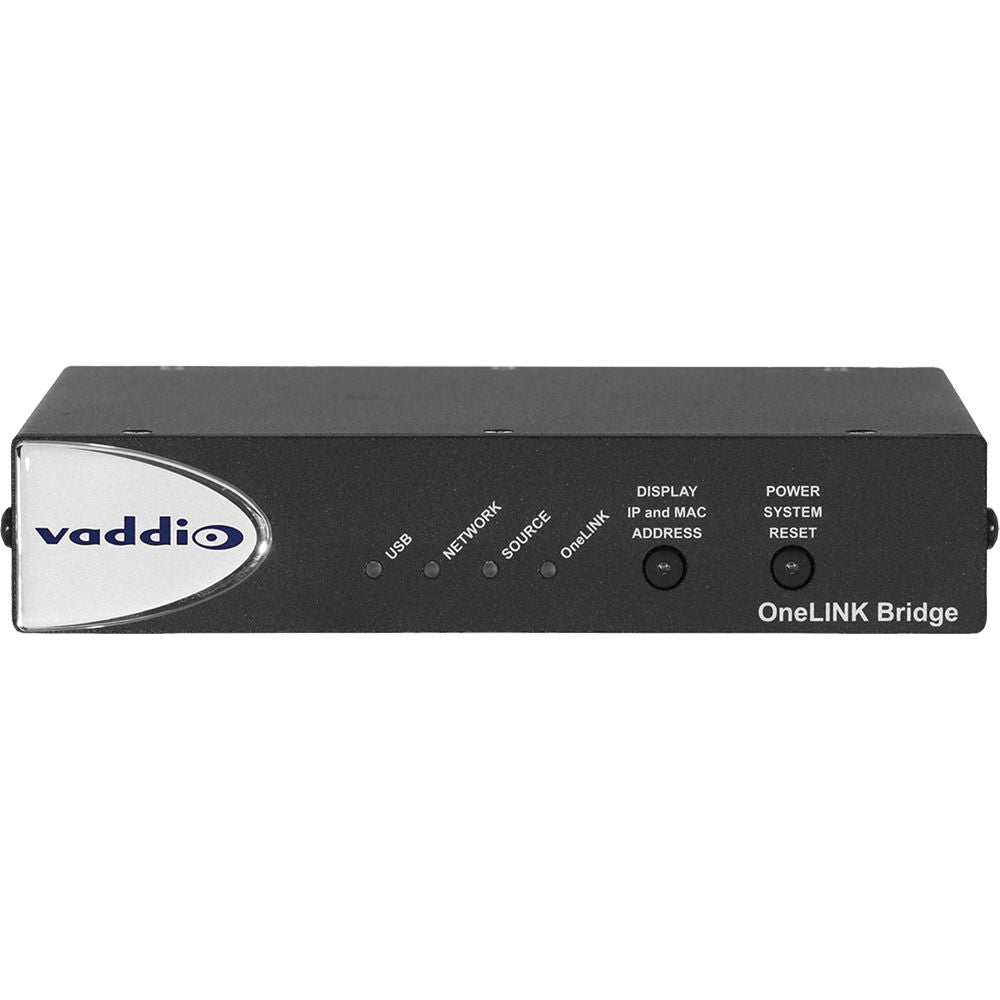

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
In the Box
- Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)
- Vaddio IR Remote Commander
- AC Adapter (12 VDC, 3 A)
- North American Power Cord Set
- Thin Profile Wall Mount
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
- Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB Cable (6')
- RS-232 Adapter
- Limited 2-Year Warranty
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White) Specs
| Sync System | Internal |
| Sensor | 1/2.3"-type Exmor R CMOS |
| Pixels | Total: 9.03 MP Effective: 8.93 |
| Minimum Illumination | Color: 3.0 lx (F1.8, 50IRE) |
| Zoom | Optical: 12x Digital: 1.67x Combined: 20x |
| Horizontal Field-of-View | Wide: 74° Tele: 4.8° |
| Focusing | Auto Focus Manual Focus Mode One-Push Trigger Mode |
| Minimum Focus Distance | Wide: 0.4" / 10 mm Tele: 59.1" / 1500 mm |
| White Balance | Auto ATW Indoor Outdoor One-Push Manual |
| Aperture/Detail | 16 Steps |
| Gain | Auto / Manual (0 to 33 dB) |
| Backlight Compensation | On/Off |
| Noise Reduction | 6 Steps |
| S/N Ratio | Over 50 dB |
| Output | Protocols HDMI HDBT HD-SDI IP (H.264) Aspect Ratio HDMI: 16:9 (all resolutions) IP (H.264) Streaming: 16:9, 3:2, 4:3 HDMI Resolutions/Frame Rates 3840 x 2160: 30/25 fps 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 3G-SDI 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 Streaming: Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30 |
| Pan | Angle: -160 to 160° Speed: 0.35°/sec to 120°/sec |
| Tilt | Angle: +90 to -30° Speed: 0.35°/sec to 120°/sec |
| Control | Vaddio IR remote commander Web interface Telnet RS-232 API (modified VISCA) |
| Power | 12 VDC, 3A power supply LTPoE |
| Temperature & Humidity | Operating 23 to 140°F / -5 to 60°C 20 to 80% RH (non-condensing) Storage -4 to 140°F / -20 to 60°C 20 to 95% RH (non-condensing) |
| Dimensions | 7.9 x 8.0 x 7.7" / 20.0 x 20.3 x 19.6 cm |
| Weight | 6.0 lb / 2.7 kg |
| Package Weight | 11.2 lb |
| Box Dimensions (LxWxH) | 13.5 x 13.5 x 11.8" |

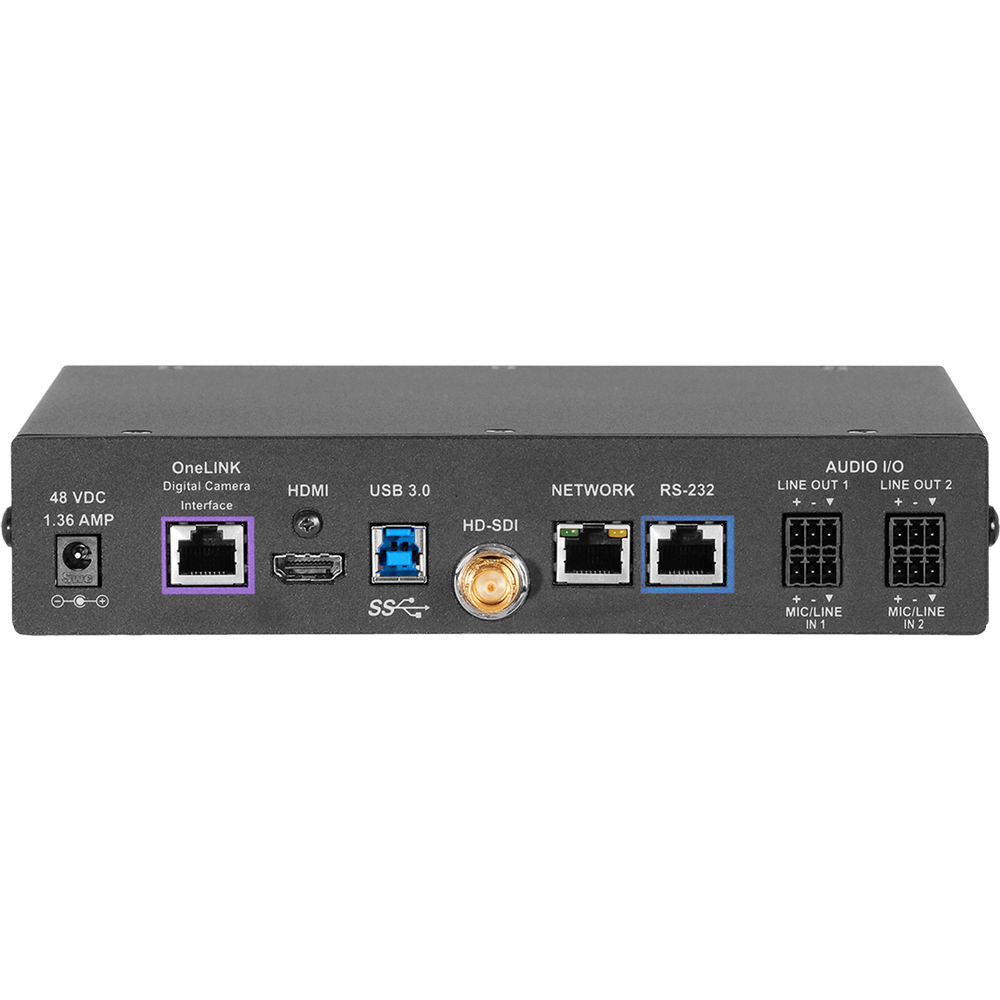

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) Specs
| Cable Run | Max: 328' / 100 m |
| Resolution | Up to 1080p60 (Full HD) |
| Connectors | 1 x HD-SDI input 1 x HDMI input 2 x Mic/Line audio inputs 1 x USB 3.0, video output with PCM audio 2 x Line audio outputs 1 x OneLINK digital camera interface 1 x Network, IP streaming and control 1 x RS-232, control 1 x Power port |
| Control Features | Web interface for configuration via browser Telnet API for third-party external control USB Human Interface Device (HID) for room audio controls |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Power | 48 VDC, 1.36 A |
| Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm |
| Weight | 1.7 lb / 0.8 kg |
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 12.3 x 9.3 x 3.2" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1080905.7 |
| 3-5 | ₹ 1069876.05 |
| 5-10 | ₹ 1047816.75 |
| 10+ | ₹ 1025757.45 |
Bulk discount will be automatically applied during checkout based on quantity.
