Description
Tenveo NVU620A4K-N PTZ Bundle Overview

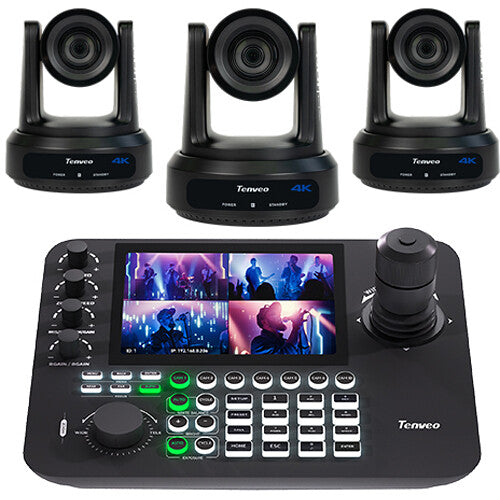

The All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller from Tenveo includes three NV U620A4K-N 4K PTZ cameras and a KB300 PRO keyboard camera controller.
Each camera supports up to UHD 4K video output via HDMI and up to 1080p via 3G-SDI, and USB 3.0. It has a LAN port for IP streaming, and NDI streaming is also available. The included controller features a 7" display that can view up to four sources simultaneously, and it can control up to 254 cameras via IP, NDI, VISCA, Pelco-D, and Pelco-P control protocols.
Keyboard Camera Controller
- 7" LCD screen with 1024 x 600 resolution
- Supports H.264 decoding up to 1080p30
- VISCA, Pelco-P, Pelco-D, VISCA over IP, ONVIF, and NDI support
- Display up to four camera feeds on screen at the same time
- Control up to 254 devices
- Custom preset positions
- 4D joystick, stepless rotary knob, backlit buttons
- Exposure, white balance, brightness, focus, shutter/iris/gain, and red/blue gain settings
- OSD (on-screen display) menu
- Independent zoom control
- Separate pan/tilt speed and zoom speed adjustments
- System language settings, network firmware upgrade, and fixed MAC address configurations
- RJ45 (Network/PoE), RS-485/RS-422 (terminal block), RS-232 (DB9) connectivity
NV U620A 4K-N Camera
- 6.25 to 125mm zoom lens with 20x optical zoom
- Up to UHD 4K60 via HDMI, 1080p60 resolution via 3G-SDI/USB/IP capture
- Dante-AV and NDI|HX2 support
- Supports AI auto-tracking
- 8.42MP 1/1.8"CMOS sensor
- f/1.58 to f/3.95 aperture
- Wide 66.6 to 4? field of view with no distortion
- 350? horizontal rotation, 180? vertical tilt
- 3D digital noise reduction (DNR)
- Backlight compensation, auto/manual white balance
- Up to 10 presets via lR; up to 255 presets via RS-232
- PoE support (Power over Ethernet)
Items Included
- Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller
- 3 x Tenveo AI Auto-Tracking UHD 4K SDI/HDMI/USB/NDI Camera with 20x Optical Zoom
- KB300 PRO Camera Controller
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tenveo NVU620A4K-N PTZ Bundle Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Max Optical Zoom |
20x
|
| Video Output |
HDMI
3840 x 2160 up to 60.00 fps RJ45 / SDI/BNC / USB 1920 x 1080p up to 60.00 fps |
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/VISCA/RS-232/NDI/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT
1920 x 1080 |
| Wireless |
No
|
| PoE Support |
PoE 802.3af
|
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Focus Control |
Autofocus
|
Exposure Control
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Manual
|
Lens
| Focal Length |
6.25 to 125mm
|
| Max Optical Zoom |
20x
|
| Field of View |
Diagonal: 66.6 to 4?
|
| Maximum Aperture |
f/1.58 to 3.95
|
Video Capture
| Video Output |
HDMI
3840 x 2160 up to 60.00 fps RJ45 / SDI/BNC / USB 1920 x 1080p up to 60.00 fps |
| Embedded Audio |
HDMI/IP/NDI/SDI/USB
|
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/VISCA/RS-232/NDI/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT
1920 x 1080 |
Control
| Presets |
255 via RS-232
10 via IR |
| Pan/Tilt |
Pan: 350? (-175 to 175?) at 0.1 to 100?/s
Tilt: 180? (-90 to 90?) at 0.1 to 80?/s |
Networking
| Wireless |
No
|
Interface
| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x USB-A 2.0 Output 1x RJ45 (NDI) Input/Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Built-In Microphone |
No
|
Power
| PoE Support |
PoE 802.3af
|
General
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
