Description

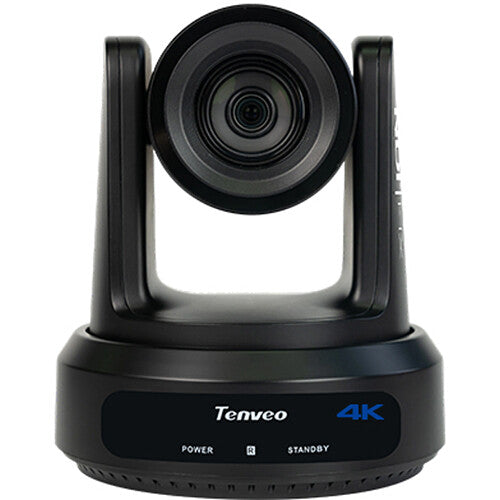

Tenveo NVU620A4K-N Overview
The AI Auto-Tracking UHD 4K SDI/HDMI/USB/NDI Camera with 20x Optical Zoom from Tenveo supports up to UHD 4K60 video output via HDMI, 3G-SDI, and USB 3.0, and it has a LAN port for IP streaming as well as the NDI|HX2 low-latency streaming protocol. The integrated zoom lens features a 20x optical zoom and 16x digital zoom, and the AI auto-tracking feature keeps your subject always in frame.
Additional Details
- 6.25 to 125mm zoom lens with 20x optical zoom and 16x digital zoom
- Up to UHD 4K60 resolution capture
- Supports AI auto-tracking
- 8.42MP 1/1.8" CMOS sensor
- f/1.58 to f/3.95 aperture
- Wide 66.6 to 4? field of view
- 3G-SDI, HDMI, USB 3.0, and LAN (IP) outputs
- NDI|HX2, Dante AV-H streaming
- Ceiling, wall, and tripod mounting options
- 350? horizontal rotation, 180? vertical tilt
- Horizontal and vertical auto-flip
- 2D and 3D noise reduction (DNR)
- Backlight compensation, auto/manual white balance
- High-quality low-light performance
- Up to 10 presets via lR; up to 255 presets via RS-232
- PoE support (Power over Ethernet)

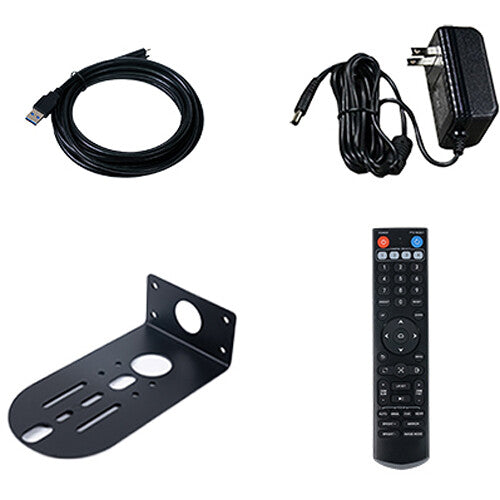

Items Included
- Tenveo AI Auto-Tracking UHD 4K SDI/HDMI/USB/NDI Camera with 20x Optical Zoom
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tenveo NVU620A4K-N Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
16x
|
| Video Output |
HDMI
3840 x 2160 up to 60.00 fps RJ45 / SDI/BNC / USB 1920 x 1080 up to 60.00 fps |
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/NDI|HX2/VISCA/RS-232/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT
1920 x 1080 up to 60p |
| Wireless |
No
|
| PoE Support |
PoE 802.3af
|
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Focus Control |
Autofocus
|
Exposure Control
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Manual
|
Lens
| Focal Length |
6.25 to 125mm
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
16x
|
| Field of View |
Diagonal: 66.6 to 4?
|
| Maximum Aperture |
f/1.58 to 3.95
|
Video Capture
| Video Output |
HDMI
3840 x 2160 up to 60.00 fps RJ45 / SDI/BNC / USB 1920 x 1080 up to 60.00 fps |
| Embedded Audio |
HDMI/IP/NDI/SDI/USB
|
| Broadcast Output |
NTSC
|
| Supported Protocols |
Camera Control Protocol
IR/NDI|HX2/VISCA/RS-232/Pelco-D/ONVIF/Pelco-P/IP |
| IP Streaming |
Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT
1920 x 1080 up to 60p |
Control
| Presets |
255 via RS-232
10 via IR |
| Pan/Tilt |
Pan: 350? (-175 to 175?) at 0.1 to 100?/s
Tilt: 180? (-90 to 90?) at 0.1 to 80?/s |
Networking
| Wireless |
No
|

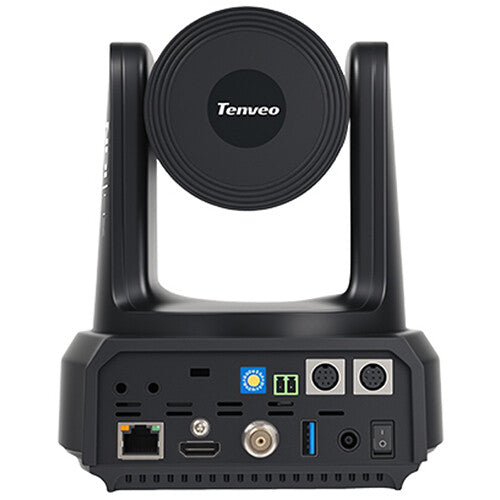

Interface
| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Input/Output |
| Built-In Microphone |
No
|
Power
| PoE Support |
PoE 802.3af
|
General
| Mounting |
1x Proprietary for Ceiling/Tripod/Wall
|
