Description
RGBlink vue PoE PTZ Camera Overview
- 1Description
- 2Tally Crown
- 3Multi-Protocol Support
- 4Set Presets
- 5Precise Position Control
- 6Remote Control
- 7Power of Convenience
- 8Audio Input
- 9PTZ Park
- 10Browser Config and Preview

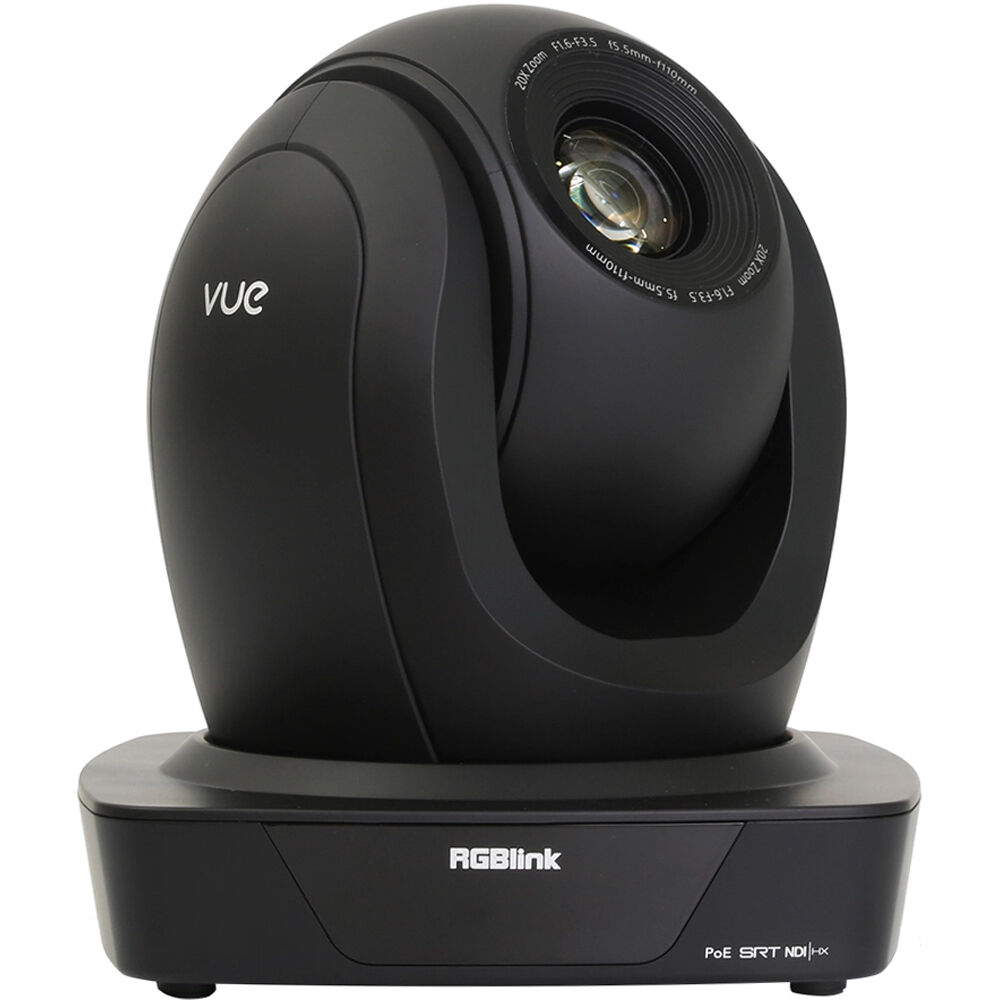

Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with this black vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom from RGBlink. The PTZ camera features resolutions up to 1080p60, and a 1/2.8" HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom. The camera offers multiple video output options including HDMI, 3G-SDI, and RJ45 Ethernet RTSP with simultaneous dual streams.
The camera features 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using IR control or the IP, RS-232, RS-422/RS-485 connectors with separately available controllers, and it can utilize UVC via its USB-A port for control from a computer. The camera compresses using H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack, and you can power the camera using the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
In the Box
- RGBlink vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom (Black)
- IR Remote Control
- Power Adapter
- RS-232 Cable
- Limited 1-Year Manufacturer Warranty
- Description
- Tally Crown
- Multi-Protocol Support
- Set Presets
- Precise Position Control
- Remote Control
- Power of Convenience
- Audio Input
- PTZ Park
- Browser Config and Preview
RGBlink vue PoE PTZ Camera Specs
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K |
| Focal Length | 4.8 to 96mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 60.04 to 3.45° |
| Maximum Aperture | f/1.8 to 2.9 |
| External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, RTMP, RTSP 1920 x 1080 1280 x 720 |
| IP Multi-Stream Support | Simultaneous H.264, H.265: 1080p, 720p, 360p |
| Presets | 255 via IR, RS-232, VISCA |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

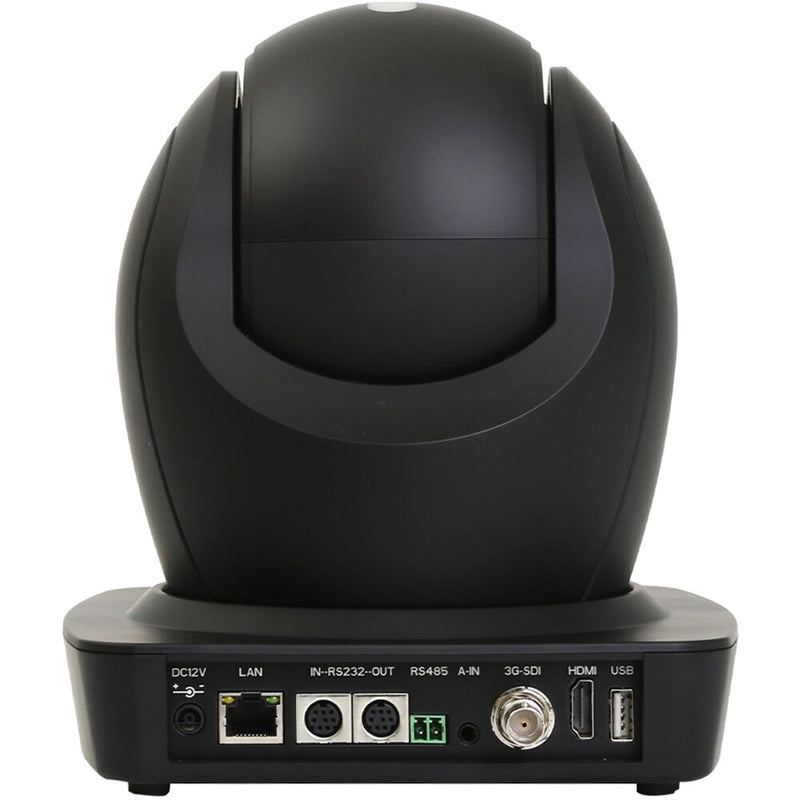

| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 Output 1 x USB-A 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block 2-Pin (RS-422, RS-485) Input/Output 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) Input |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 20 to 80% |
| Dimensions (W x H x D) | 7.4 x 7.8 x 7.1" / 18.8 x 19.8 x 18 cm |
| Weight | 60.0 oz / 1.7 kg |
| Package Weight | 6.215 lb |
| Box Dimensions (LxWxH) | 11.1 x 9.9 x 9.5" |
