Description
AVer PTZ310UNV2 Overview
- 1Description
- 2
- 3High-Quality Video
- 4Seamless Tracking
- 5NDI|HX3 Support
- 6Wide FOV
- 7Versatile Camera Motion Control
- 8Preset Location Functionality
- 9Compatible Software
- 10Free Software for Users and AV Managers
By Photo's
Jennifer Hahn
The white

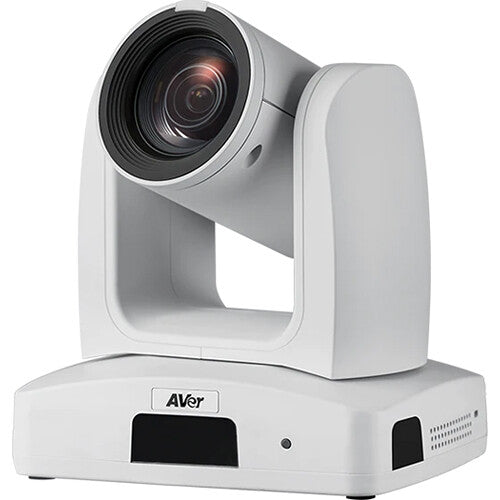

PT310UNV2 4K Professional PTZ Camera with NDI|HX3 & 12x Optical Zoom from
AVer allows you to capture video with up to 4K60 resolution via its 1/2.8" CMOS sensor. The PT310UNV2 features a 12x optical zoom, a tally light, live streaming, and it supports flip and mirror image options. It also supports NDI|HX3 and can fit right into your NDI network for streaming with less than 100ms latency.
High-Quality Video
The PT310UNV2 PTZ camera offers high image quality, video streaming support, and AI functionality. The camera offers up to UHD 4K resolution, 8MP picture with 60 fps, and simultaneous output of USB/IP/HDMI/3G-SDI. The PT310UNV2 features Zoom and Microsoft Teams video mode for easy conference setups and the SRT protocol to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust FOV to capture everyone on screen.
Seamless Tracking
AVer SmartShoot optimizes your camera controls for automatic and seamless content capture between your preset areas. With SmartShoot preset zone tracking, you can create an uncompromising multi-camera feel with just one PT310UNV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
NDI|HX3 Support
The PT310UNV2 includes the most recent edition of the NDI protocol is NDI version 3 (NDI |HX3), which features 4K60 NDI output with latency less than 100ms.
Wide FOV
AVer's SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed, so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
Versatile Camera Motion Control
The PT310UNV2 advanced Motion Control Settings allow you to perform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PT310UNV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

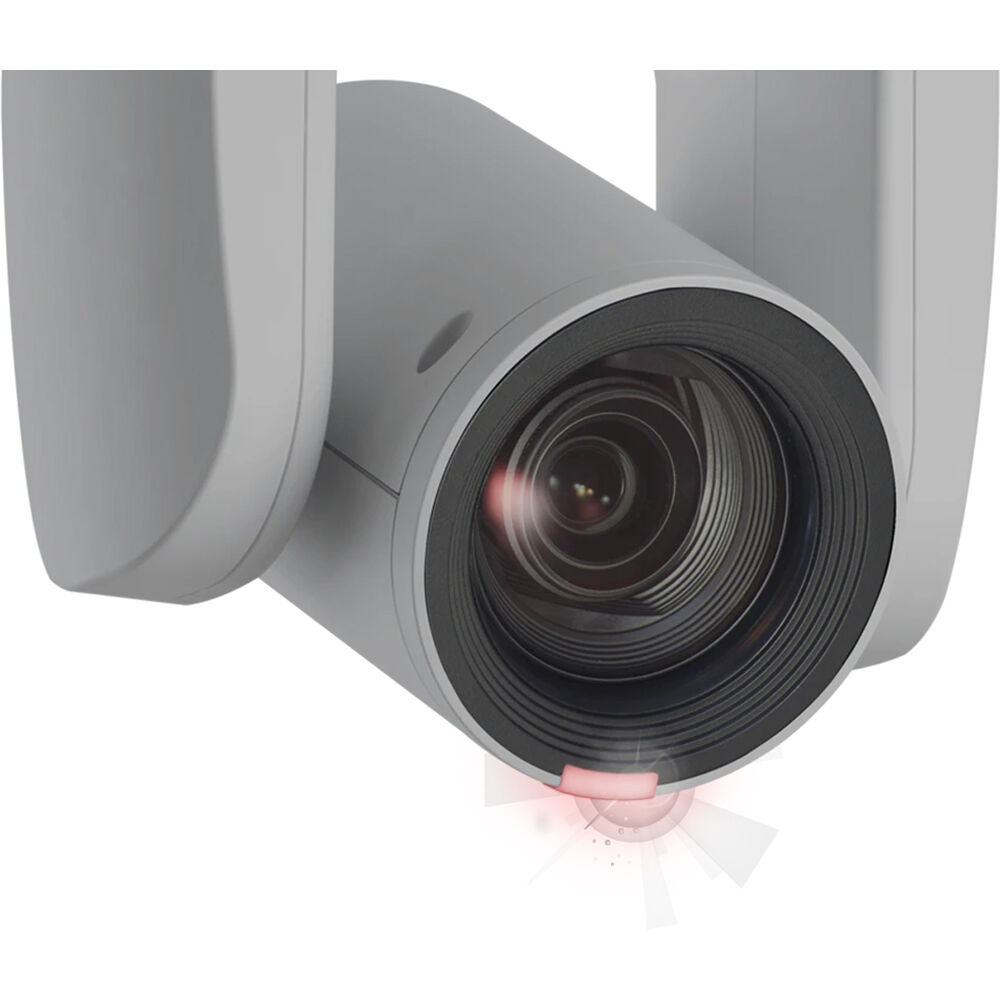

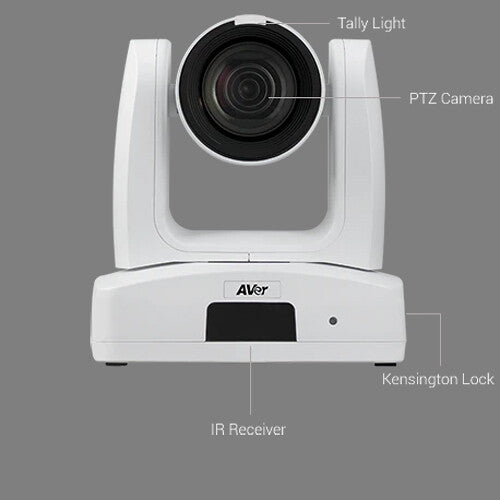

You can also simplify multi-camera live video productions with a red tally light on the active camera.
Preset Location Functionality
Preset the PT310UNV2 with up to 255 different locations through VISCA via RS-232 and RS-422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Compatible Software
Teams, Crestron, Echo360, Extron, KALTURA, Panopto, vMix, Zoom, Telestream, NewTek
Free Software for Users and AV Managers
Whether you need a simple tool to control your PTZ or TR camera or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered.
In the Box
- AVer PT310UNV2 4K Professional PTZ Camera with NDI|HX3 & 12x Optical Zoom
- Remote Control
- Power Adapter
- Power Cable
- Cable Fixing Plate
- 2 x Ceiling Mount Bracket
- AVer 8-Pin DIN to 9-Pin D-Sub RS-232 Connector Cable for PTZ310 and PTZ330
- AVer RS-232 In/Out Y-Cable for PTZ310 and PTZ330 Cameras
- 3 x M3 Screw
- 3 x M2 Screw
- 2 x 1/4"-20 Screw
- 4 x Cable Tie
- Drilling Paper
- Limited 3-Year Manufacturer Warranty (on Camera)
- Limited 1-Year Manufacturer Warranty (on Accessories)
Table of Contents
- Description
- High-Quality Video
- Seamless Tracking
- NDI|HX3 Support
- Wide FOV
- Versatile Camera Motion Control
- Preset Location Functionality
- Compatible Software
- Free Software for Users and AV Managers
AVer PTZ310UNV2 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel (3840 x 2160)
|
| Shutter Speed |
1/32000 to 1 Second
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
1x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720i at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, NDI, NDI|HX3
3840 x 2160 at 60p |
| Supported Control Protocols |
IP
NDI RS-232 RS-422 VISCA |
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1400 TV Lines
|
| Sensor Resolution |
Effective: 8 Megapixel (3840 x 2160)
|
| Built-In ND Filter |
No
|
Exposure Control
| Shutter Speed |
1/32000 to 1 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.46 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: ATW, Auto, Manual, One Push
|
Lens
| Focal Length |
3.9 to 46.8mm
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
1x
|
| Field of View |
Horizontal: 72.1 to 6.3°
Vertical: 44 to 3.7° |
| Maximum Aperture |
f/1.6 to 2.8
|
| Minimum Focus Distance |
Wide: 11.8" / 0.3 m
Telephoto: 59.1" / 1.5 m |
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720i at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, NDI, NDI|HX3
3840 x 2160 at 60p |
| IP Multi-Stream Support |
Simultaneous
H.264, H.265, MJPEG, RTMP, RTP, RTSP, TCP: UHD 4K at 60p |
Control
| Presets |
10 via IR
255 via RS-232 |
| Move Speed |
Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
NDI RS-232 RS-422 VISCA |

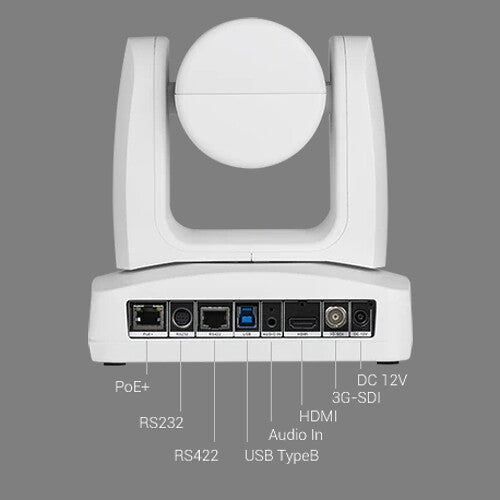

Interface
| Video I/O |
1 x BNC (3G-SDI) Output
1 x HDMI Output 1 x RJ45 Output 1 x USB-B 2.0 Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1 x RJ45 (LAN) Input/Output
1 x RJ45 (RS-422) 1 x D-Sub 9-Pin (RS-232) |
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1 x Barrel (12VDC at 2 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC 19 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 80%
|
| Storage Humidity |
20 to 95%
|
General
| OS Compatibility |
Windows 7 or Later
macOS 10.13 or Later *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
Yes: iOS Only
App Name: PTZ Control Panel Functionality: Remote Control *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions (W x H x D) |
5.7 x 7.1 x 5.7" / 145 x 180 x 145 mm
|
| Weight |
4.4 lb / 2 kg
|
Packaging Info
| Package Weight |
8.69 lb
|
