Description

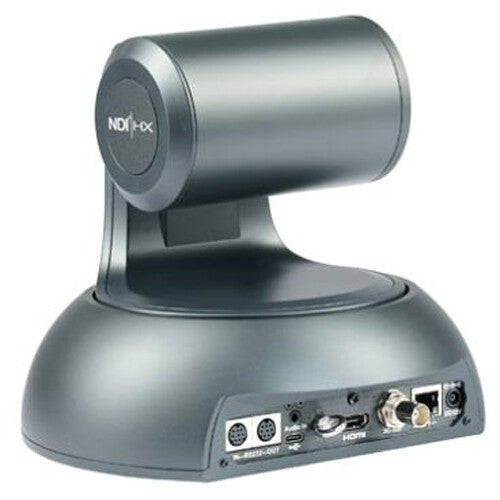

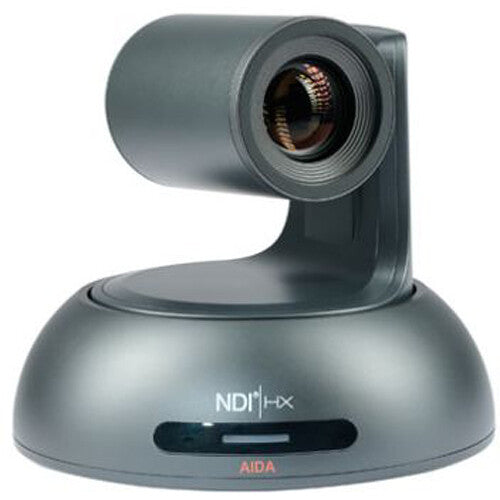

AIDA Imaging PTZ-NDI3 Overview
By Photo's
Bruno Derlin
Control the pan, tilt, and zoom functions of your camera and send video out simultaneously via 3G-SDI, HDMI, and IP with NDI|HX3 support using this black
Full HD NDI HX3 PTZ Camera with 20x Optical Zoom from
AIDA Imaging. Use the included remote control or employ RS-232 serial control to have full reign over the camera's functions and capture vibrant images at resolutions up to 1080p, with support for up to 120 fps via HDMI and NDI|HX3 over IP.
The camera boasts built-in OSD controls, PoE (Power over Ethernet) support, and a 20x optical zoom, and it can store and recall up to 128 presets over network control and 10 presets via remote. A 3.5mm TRS stereo audio port provides an input for external audio sources, such as a microphone or a signal coming from an audio mixer with multiple audio sources already blended together. IP protocol support includes UDP/IP, RTSP/RTMP, SRT, NDI|HX, and NDIHX3.
NDI|HX3 streaming is capable of even lower-latency video streaming and PTZ control over the NDI|HX3 protocol.
Full HD progressive scan sensor captures sharp and vivid color under different light conditions.
Full HD up to 120 fps (NDI|HX3, IP, and HDMI) and 60 fps (3G-SDI) simultaneously.
Advanced digital image processor provides vivid and detailed images with full access feature sets.
3.5mm line-in for no audio/video delay over IP/NDI protocols.
In the Box
- AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (Black)
- Remote Control
- Mounting Bracket
- Power Adapter & Cable
- Limited 2-Year Manufacturer Warranty
AIDA Imaging PTZ-NDI3 Specs
Key Specs
| Image Sensor |
1/3"-Type CMOS
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
SDI/BNC / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps HDMI / RJ45 1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
IP
IR NDI RS-232 VISCA |
Imaging
| Image Sensor |
1/3"-Type CMOS
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
Lens
| Focal Length |
4.9 to 98mm
|
| Optical Zoom Ratio |
20x
|
| Field of View |
60 to 4°
|
| Maximum Aperture |
f/1.5 to 3
|
Video Capture
| External Recording Modes |
SDI/BNC / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps HDMI / RJ45 1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100/120 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX, NDI|HX3, RTMP, RTSP, SRT
1920 x 1080 1280 x 720 |
Control
| Presets |
10 via IR
128 via IP, RS-232, VISCA |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IP
IR NDI RS-232 VISCA |

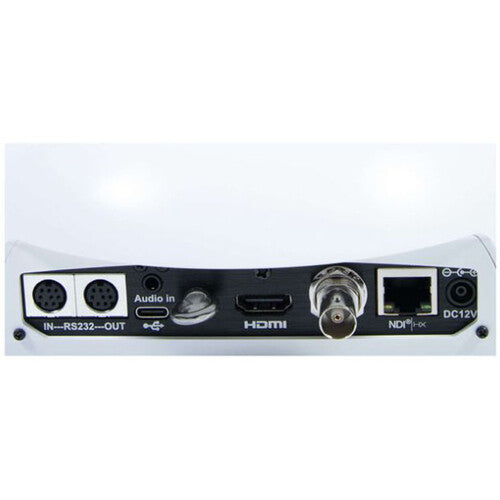

Interface
| Video I/O |
1 x BNC (3G-SDI) Output
1 x HDMI Output 1 x RJ45 (NDI) Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1 x Mini-DIN 8-Pin (RS-232, VISCA) Input
1 x Mini-DIN 8-Pin (RS-232, VISCA) Output 1 x RJ45 (LAN) Output |
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1 x Barrel (9 to 15VDC) Input
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
General
| Dimensions (W x H x D) |
7.75 x 7.48 x 6.95" / 19.68 x 19 x 17.65 cm
|
| Weight |
3.1 lb / 1.4 kg
|
Packaging Info
| Package Weight |
7.57 lb
|
| Box Dimensions (LxWxH) |
12.3 x 10.8 x 10.5"
|
