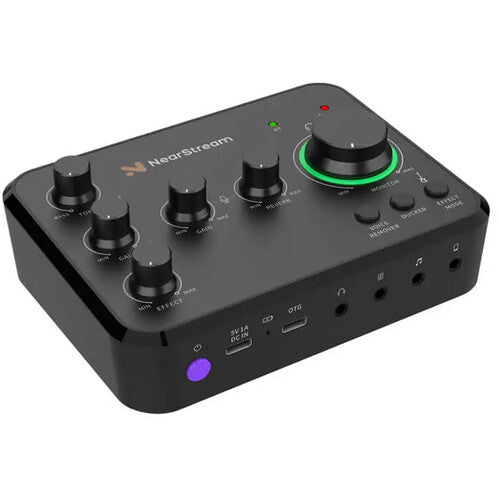

NearStream Nearity AMIX20B USB-C Audio Interface and Mixer

Designed for musicians, podcasters, and streamers, the Nearity AMIX20B USB-C Audio Interface and Mixer delivers quality sound in a compact, portable format. With its intuitive, plug-and-play design, creators can easily capture audio anywhere�without a steep learning curve. Equipped with a high-performance XLR preamp with 48V phantom power, plus a 1/4" instrument input, the AMIX20B allows singer-songwriters to record vocals and guitar simultaneously. It also functions in standalone mode without a computer, making it ideal for live performances.

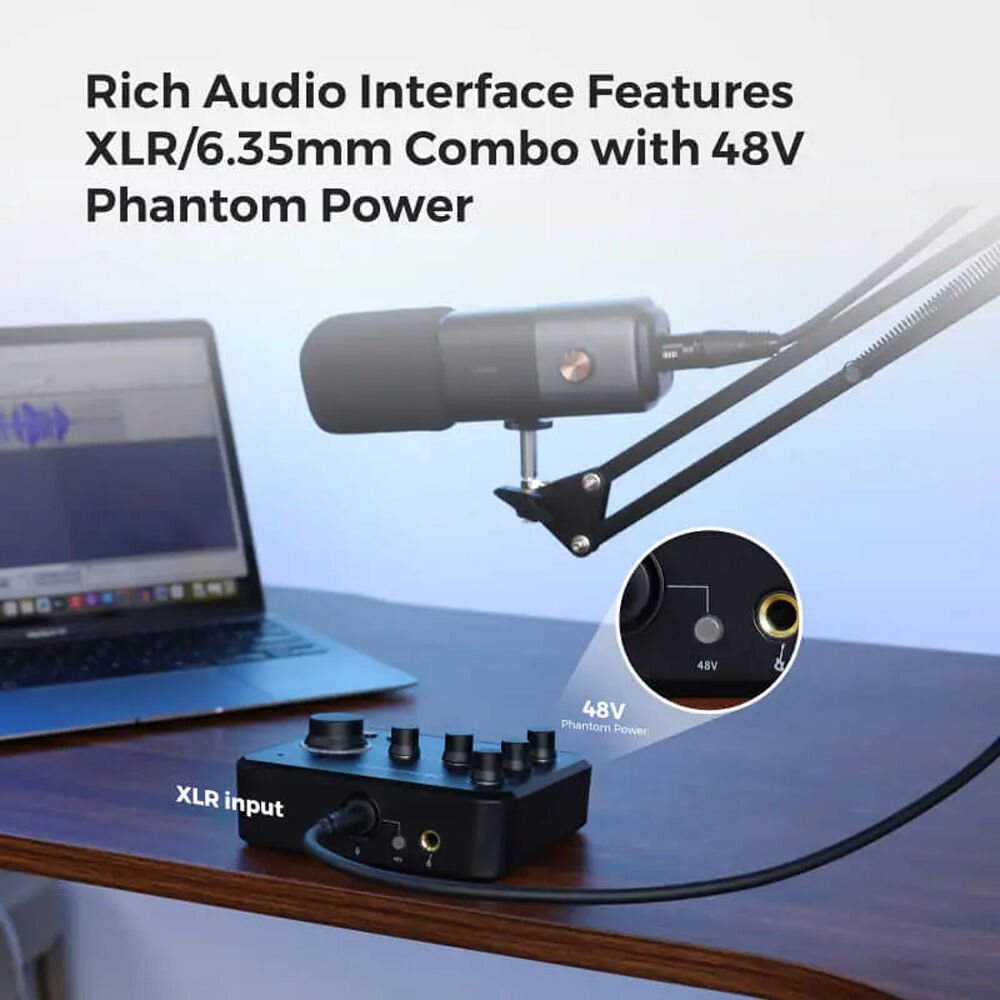

The dedicated XLR input ensures seamless connectivity for studio-quality vocals, providing phantom power and mic-gain control for optimal performance with both dynamic and condenser microphones.

A dedicated 1/4" instrument input captures rich, natural guitar, bass, and keyboard tones, with a separate volume knob for precise audio output control.

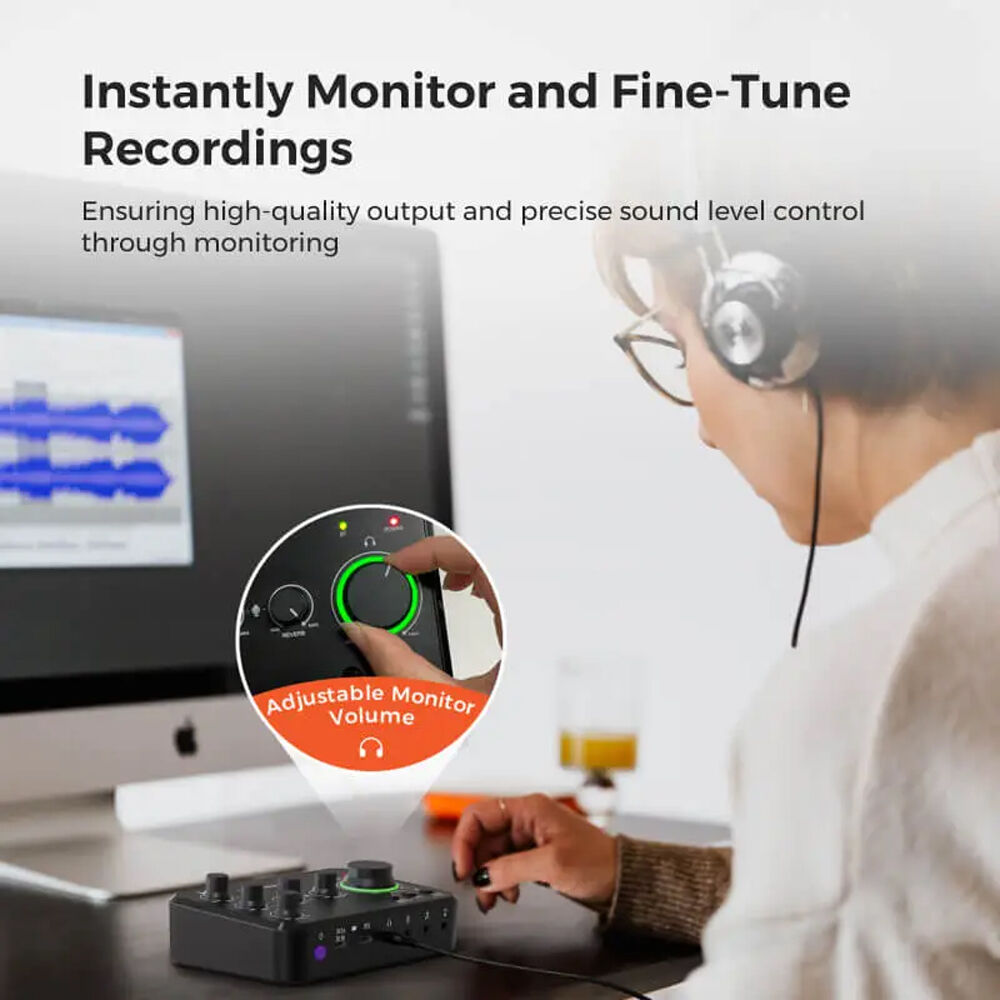

Monitor recordings instantly with zero-latency direct monitoring, ensuring precise control over sound levels and audio quality during recording sessions.

With hassle-free setup across multiple platforms, the AMIX20B is designed for effortless use. Just plug in, adjust levels, and start creating�no technical expertise required.

NearStream AMIX20B Specs

Channels of I/O	2 Input / 4 Output
Number of Microphone Inputs	1

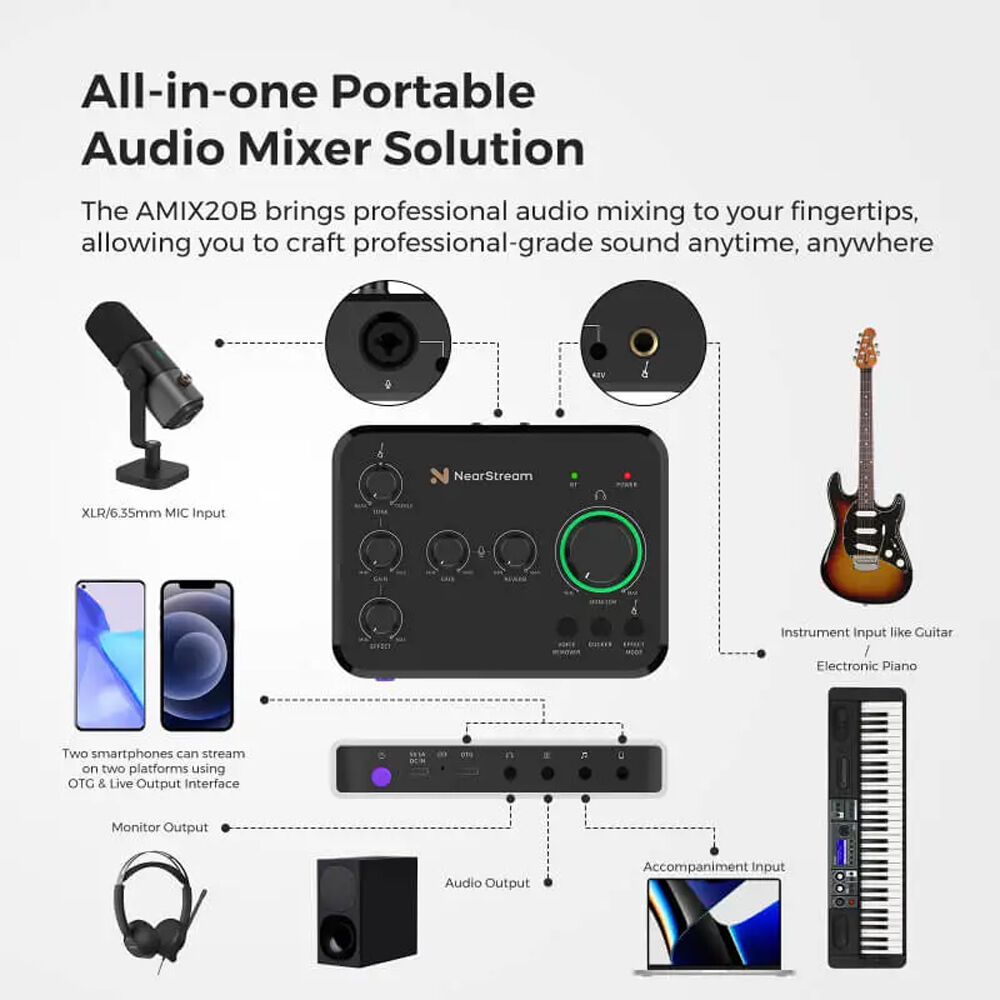

Analog Audio I/O	1x Combo XLR-1/4" TS Mic/Line Input 1x 1/4" TRS Line Input 1x 1/4" TS Aux Input 1x 1/4" TS Aux Output 1x 1/4" TRS Headphone Output 1x 1/4" TRS Main Output
Digital Audio I/O	No
Host Connection	1x USB-C
Power Requirements	Built-In Rechargeable Battery, USB Bus Power

Display	LED
Channels of I/O	2 Input / 4 Output
Built-In DSP	Yes
Number of Microphone Inputs	1
Built-In Microphone	No
Input Level Adjustment	2x Knob

Gain/Trim Range	+30 dB
Solo/Mute	No

Analog Audio I/O	1x Combo XLR-1/4" TS Mic/Line Input 1x 1/4" TRS Line Input 1x 1/4" TS Aux Input 1x 1/4" TS Aux Output 1x 1/4" TRS Headphone Output 1x 1/4" TRS Main Output
Phantom Power	48 V
Digital Audio I/O	No
Host Connection	1x USB-C
Host Connection Protocol	USB 2.0
USB (Non-Host)	1x USB-C (Device Connection)
Sync I/O	No
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No

Frequency Response	20 Hz to 20 kHz
Dynamic Range	82 dB

Sample Rate Conversion	No
Sync Sources	No
Clocking	Internal:

Media/Memory Card Slot

No

OS Compatibility	Windows / macOS
Mobile Device Compatibility	iPhone Android Smartphone
Required Hardware	USB 2.0 Port, USB-A Port, USB-C Port

Power Requirements	Built-In Rechargeable Battery, USB Bus Power
Battery Type	1x Built-In Rechargeable
Internal Battery	Rechargeable Lithium-Ion

Dimensions	5.5 x 4.3 x 2" / 140 x 108 x 52 mm
Weight	10.9 oz / 310.0 g
