Description

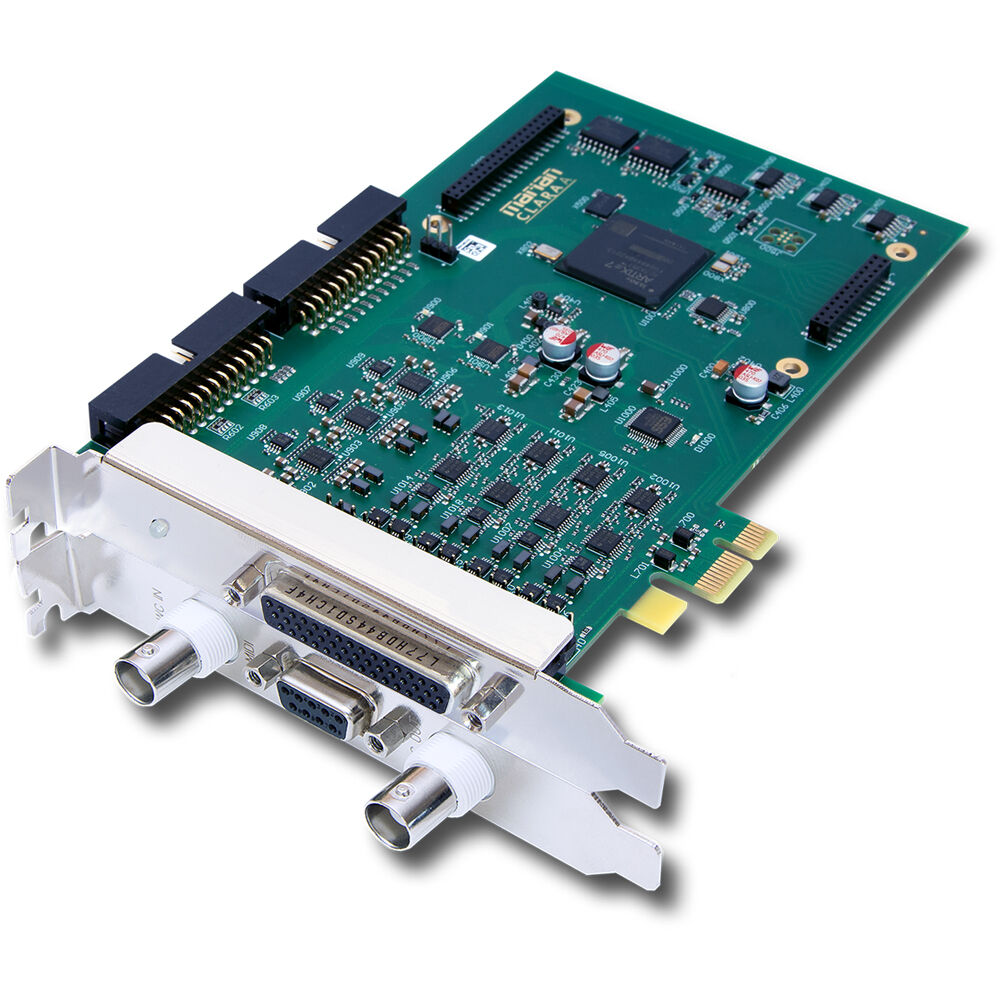

marian DIGITAL AUDIO ELECTRONICS CLARA A+ XLR Overview
Designed for high-fidelity audio recording and playback, the marian DIGITAL AUDIO ELECTRONICS Clara A+ XLR is a professional-grade PCIe sound card that delivers pristine sound quality with 16 audio channels in a compact, two-slot PCIe width. It features eight balanced analog XLR I/O (16 channels), high-end 24-bit / 192 kHz converters, an ultraprecise clock, and a powerful Beast DSP mixer for latency-free mixing and EQ processing, making it an ideal solution for studios and installations requiring reliability and uncompromising audio performance.
The card comes with a 16-channel analog I/O breakout cable equipped with XLR connectors. A breakout cable with two 5-pin DIN MIDI I/O is also included.
Clara A+ XLR Edition: Enhanced Connectivity
- The + version adds wordclock/superclock I/O (BNC connectors) and an additional two MIDI I/O via a dedicated expansion card. This add-on connects to the sound card via a ribbon cable, allowing flexible placement inside the case or in a separate PCIe slot.
High Audio Quality for Analog Signals
- With 113 dBA SNR and a THD+N of -104.5 dB, the Clara A+ delivers premium audio quality.
- A hefty level of +15 dBu provides enough headroom at the inputs and sufficient signal at the outputs for any connected device.
- AD/DA is 24-bit and 192 kHz throughout, with no restrictions on the number of channels.
Advanced DSP Mixing and Realtime Routing
The Beast DSP Mixer offers latency-free volume control and routing of all input signals, along with advanced mixing and playback capabilities:
- Mix up to 64 signals across 8 buses.
- Route playback signals from any DAW.
- Record mix sums back into an application.
- 4-band parametric EQ per channel for precise tonal shaping.
Superior Clocking and Synchronization
- With less than 1 ns jitter, the Clara A+�s internal clock provides superior synchronization�often outperforming external studio clocks. This ensures ultralow jitter performance, making external clocking unnecessary in many setups.
Scalable Multi-Card Synchronization
- Multiple Clara sound cards installed in a single system can be synchronized via TDM SyncBus, appearing as a single unified ASIO device.
- This enables direct intercard audio signal exchange within the Beast Mixer, supporting up to 32 interconnected audio streams.
Reliable Multiclient Driver Suite
Marian�s continuously refined driver supports:
- ASIO 2.2 and multichannel low-latency WDM audio / WASAPI
- Simultaneous access by multiple applications.
Items Included
- marian DIGITAL AUDIO ELECTRONICS Clara A+ 16-Channel Analog PCIe Sound Card (XLR I/O)
- Analog I/O Breakout Cable (XLR)
- marian DIGITAL AUDIO ELECTRONICS MIDI Cable for MWX Extender
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
marian DIGITAL AUDIO ELECTRONICS CLARA A+ XLR Specs
Key Specs
| Channels of I/O |
16 Inputs / 16 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
8x XLR 3-Pin Line Input (on Included Breakout Cable)
8x XLR 3-Pin Line Output (on Included Breakout Cable) |
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Power Requirements |
PCIe
|
General
| Display |
No
|
| Channels of I/O |
16 Inputs / 16 Outputs
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
Signal Processing
| Pad |
No
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
8x XLR 3-Pin Line Input (on Included Breakout Cable)
8x XLR 3-Pin Line Output (on Included Breakout Cable) |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Word Clock Input
|
| Network I/O |
No
|
| MIDI I/O |
2x DIN 5-Pin Input (on Included Breakout Cable)
2x DIN 5-Pin Output (on Included Breakout Cable) |
| Expansion Slots |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
Analog Inputs:
5 Hz to 96 kHz Analog Outputs: 20 Hz to 74 kHz |
| Maximum Input Level |
+15 dBu
|
| Impedance |
Analog Inputs:
10 Kilohms Analog Outputs: 75 Ohms |
| SNR |
113 dBA
|
| THD+N |
Analog Outputs:
104.5 dB |
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Sync Sources |
No
|
| Clocking |
Internal:
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows 10 to 11
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
PCIe Card Slot
|
Power
| Power Requirements |
PCIe
|
