Description

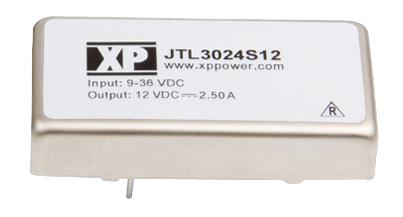

The JTL3024S12 is a 30W DC-DC Converter with < 3% maximum deviation recovery to within 1% in < 250µs for a 25% load change transient response. It offers trip and restart (hiccup mode) auto recovery short-circuit protection.
- High power density
- Remote ON/OFF
- 1600VDC Isolation
- 330kHz Typical switching frequency
- ±3000µF Maximum capacitive load
- 90% Efficiency
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Signal Processing, Industrial
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 30W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 2.5A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.6kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |

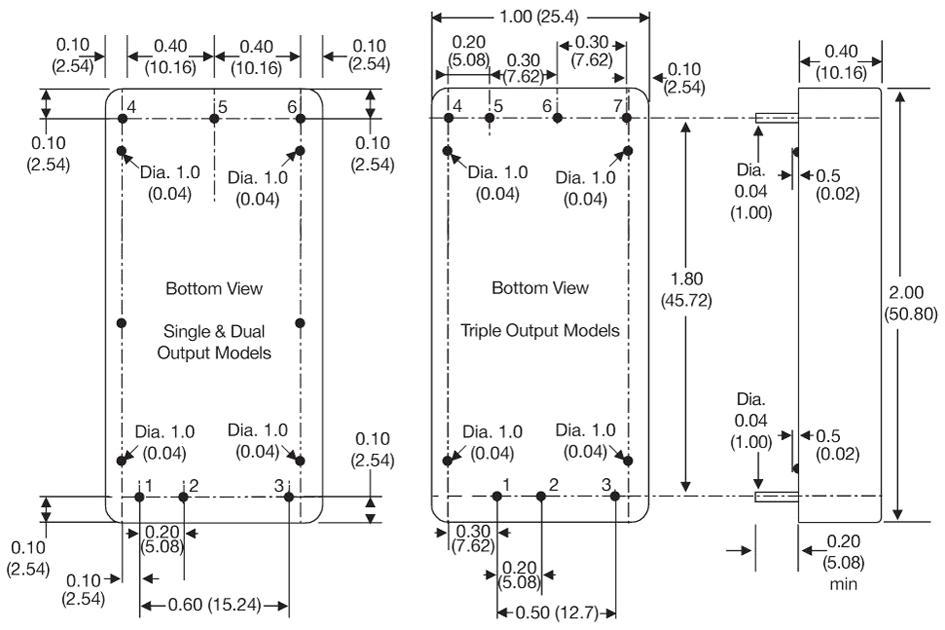

| Width: 25.4mm |
| Height: 10.16mm |
| Depth: 50.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: JTL30 Series |
Other details
| Brand | XP POWER |
| Part Number | JTL3024S12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
