- 2:1 Input Range
- Industry Standard Package
- 1500 VDC Isolation
- Continuous Short Circuit Protection
- High Efficiency - up to 89%
- -40°C to +100°C Operating Temperature
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, DC, DC Converters
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
2:1
|
| Output Power Max:
15W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
12V
|
| Output Current - Output 1:
1.25A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
1.6kV
|
| DC / DC Converter Type:
DIP
|
| Input Voltage DC Nom:
24V
|
| DC / DC Converter Output Type:
Fixed
|

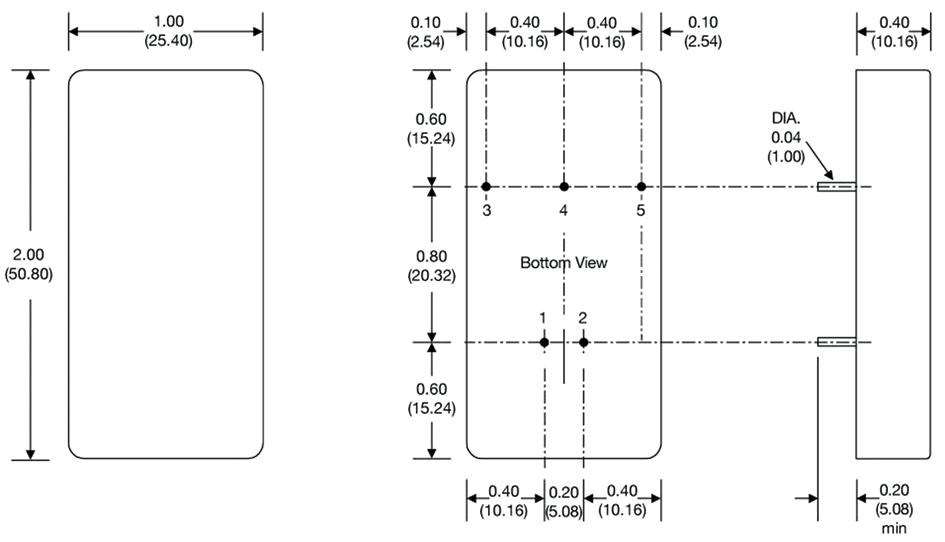

| Width:
25.4mm
|
| Height:
10.16mm
|
| Depth:
50.8mm
|
| Input Voltage DC Min:
18V
|
| Input Voltage DC Max:
36V
|
| Product Range:
JCK15 Series
|
Other details
| Brand |
XP POWER |
| Part Number |
JCK1524S12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
