| ₹ 3581.19 includes GST and import duties. | |
| B2B customers can avail ₹ 546.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

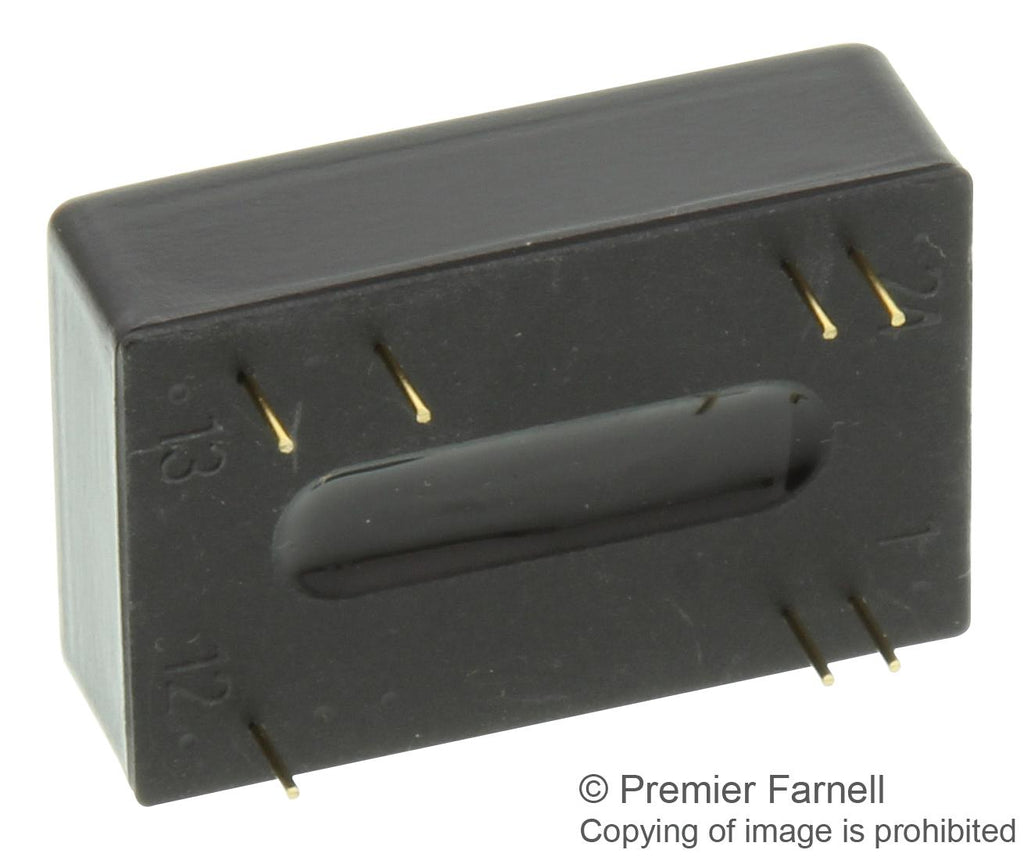

The TEN 5-4822WI is a 2-output 5W board-mount isolated high performance DC/DC Converter featuring 18 to 75VDC input voltage range and ±12VDC output voltage. A high efficiency allows -40 to 70°C operation ambient temperatures at full load. This converter is suitable for use with the applications where a wide input voltage range is required.
- Full SMD design
- Excellent load and line regulation
- Indefinite short-circuit protection
- Ultra wide 4:1 input range
- 1500VDC I/O isolation
- 83% Typical efficiency
- 48VDC Nominal input voltage
Power Management, Industrial, Communications & Networking, Sensing & Instrumentation
Footnotes NRND - Not Recommended for New DesignsOther details
| Brand | TRACO POWER |
| Part Number | TEN 5-4822WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3509.57 |
| 3-5 | ₹ 3473.75 |
| 5-10 | ₹ 3402.13 |
| 10+ | ₹ 3330.51 |
Bulk discount will be automatically applied during checkout based on quantity.
