| ₹ 12983.74 includes GST and import duties. | |
| B2B customers can avail ₹ 1980.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

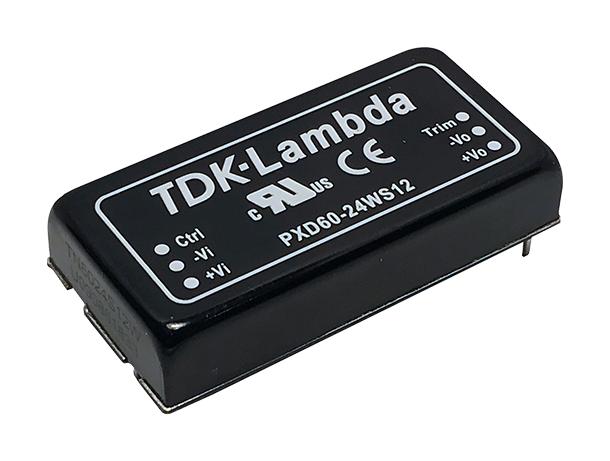

PXD60-24WS24 is a PXD60 series industrial DC to DC converter featuring wide 4:1 input range in a compact 2 x 1� (50.8 x 25mm) industry standard package. The PXD60 series typically draws a low 3mA input current when the remote on/off function is used, prolonging battery life for portable equipment. The modules have six-sided shielding to reduce radiated noise.
- Input voltage range from 9to 36VDC
- Output voltage is 24VDC
- Maximum output current is 2.5A
- Maximum power of 60W
- No load current is 10mA, efficiency is 91%, maximum load capacitance is 2,000uF
- Certified to IEC/UL/CSA/EN 62368-1
- Suitable for industrial applications
- Positive logic remote on/off, no heatsink fitted
- 50.8 x 25.4 x 10.2mm size
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | PXD60-24WS24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12724.07 |
| 3-5 | ₹ 12594.23 |
| 5-10 | ₹ 12334.55 |
| 10+ | ₹ 12074.88 |
Bulk discount will be automatically applied during checkout based on quantity.
