Description
Product Overview

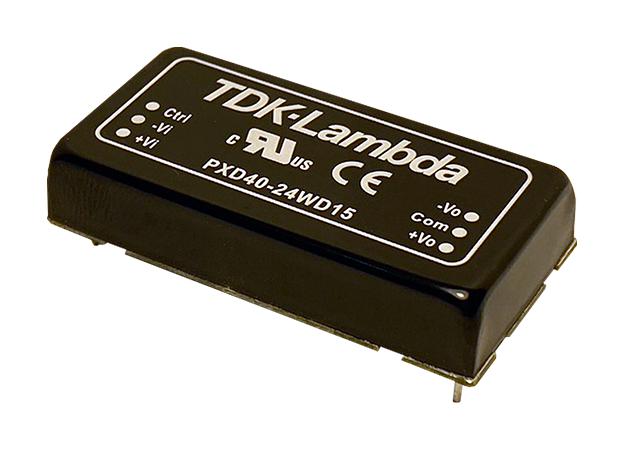

PXD40-24WS12 is a PXD40 series industrial DC to DC converter featuring wide 4:1 input range in a compact 2 x 1� (50.8 x 25.4mm) industry standard package. The PXD40 series typically draws a low 3mA input current when the remote on/off function is used, prolonging battery life for portable equipment. The modules have six-sided shielding to reduce radiated noise.
- Input voltage range from 9to 36VDC
- Output voltage is 12VDC
- Maximum output current is 3.333A
- Maximum power of 40W
- No load current is 15mA, efficiency is 92%, maximum load capacitance is 2,000uF
- Certified to IEC/UL/CSA/EN 62368-1
- Suitable for industrial applications
- Positive logic remote on/off, no heatsink fitted
- 50.8 x 25.4 x 10.2mm size
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | PXD40-24WS12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
