| ₹ 640.8 includes GST and import duties. | |
| B2B customers can avail ₹ 97.72 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

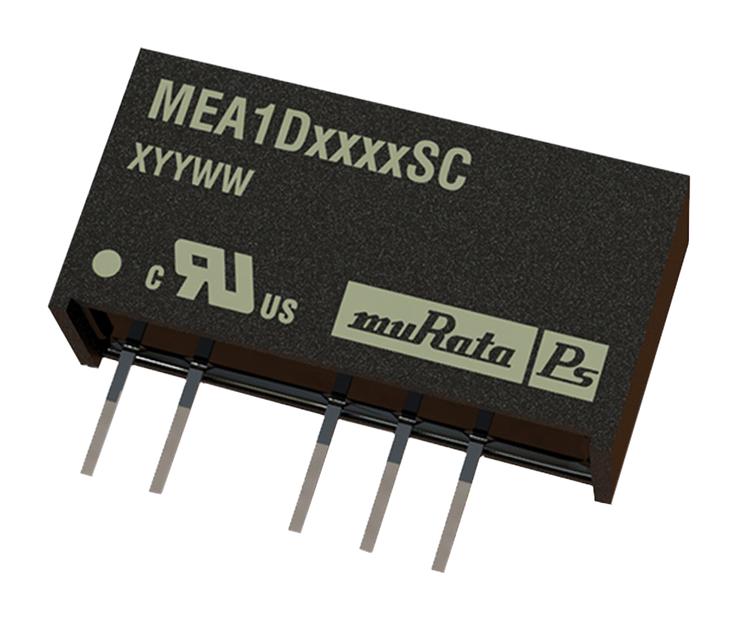

The MEA1D2412SC is a 2-output 1W board-mount isolated DC/DC Converter with high performance and more efficient. The device offers improved regulation performance <= 5% for applications where a wide output voltage variation cannot be tolerated. It is ideally suited for providing dual rail supplies with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single output providing the total load does not exceed 1W.
- No heat sink required
- Industry standard pin-out
- Power sharing on output
- Fully encapsulated with toroidal magnetics
- No external components required
- No electrolytic or tantalum capacitors
- Power density to 0.85W/cm³
- 2.5% Maximum load regulation
- 20mVp-p Maximum ripple and noise
- 87% Typical efficiency
- 85pF Isolation capacitance
Power Management, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MEA1D2412SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 627.98 |
| 3-5 | ₹ 621.58 |
| 5-10 | ₹ 608.76 |
| 10+ | ₹ 595.94 |
Bulk discount will be automatically applied during checkout based on quantity.
