Description

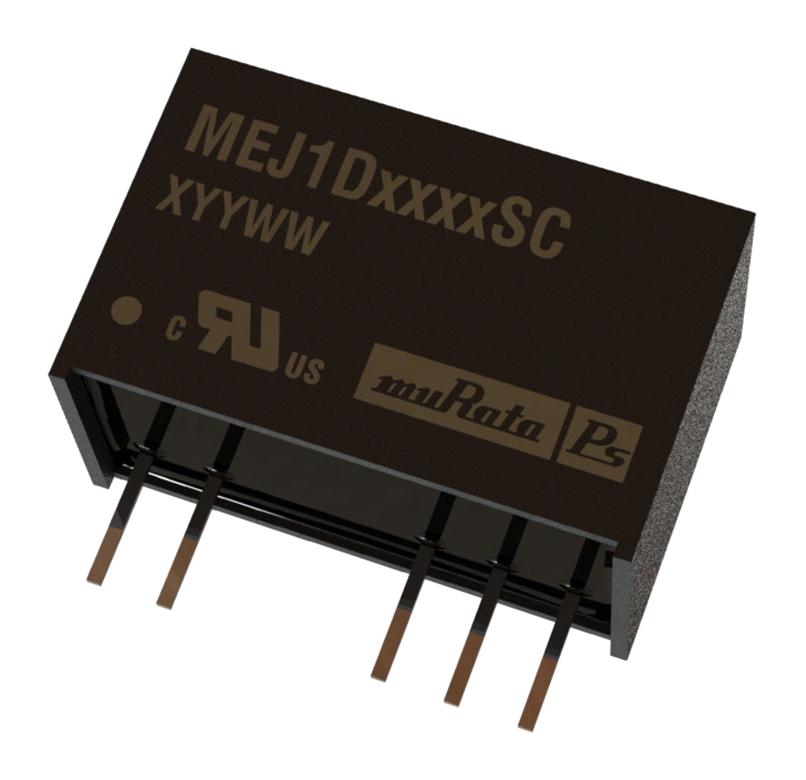

The MEJ1D2415SC is a 2-output 1W board-mount isolated DC/DC Converter offering an insulation upgrade path from the NMV and MEV1 series. The device is ideal for applications where safety and miniaturization are of paramount importance.
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- Pin compatible with the MEV, NMV, NMK, MEJ2 and NMJ series
- 5.2kVDC Isolation hi pot test
- 5% Maximum load regulation
- 35mVp-p Maximum ripple and noise
- 78.5% Typical efficiency
Power Management, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MEJ1D2415SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 986.22 |
| 3-5 | ₹ 976.16 |
| 5-10 | ₹ 956.03 |
| 10+ | ₹ 935.91 |
Bulk discount will be automatically applied during checkout based on quantity.
