Description

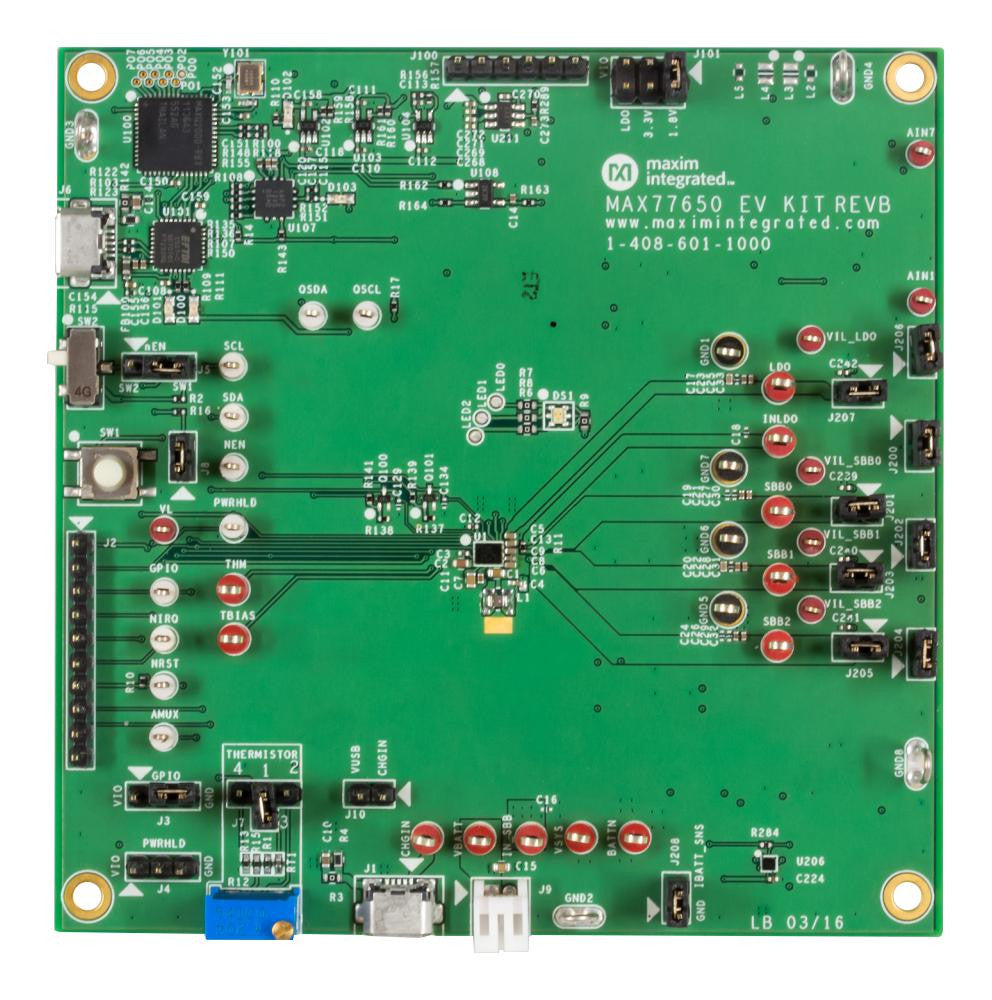

The MAX77650EVKIT# from Maxim Integrated Products is a MAX77650 evaluation kit. It is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77650. The EV kit allows for easy evaluation of the various MAX77650 features, including the SIMO buck-boost regulator, linear regulator, analogue multiplexer, smart battery charger, on/off controller and I2C interface. EV kit is identical aside from the device (U1), silkscreen and two resistive dividers at the SIMO outputs. The MAX77650 device themselves have different output voltage ranges for the SIMO buck-boost regulator. Windows�-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77650.
- GUI drives I2C interface
- On-board battery ammeter
- On-board thermistor
- RGB LED cluster
- Emulates system loading
- On-board electronic loads
- Electronic loads have steady-state, transient and random modes
- Demonstrates end to end analogue multiplexer implementation
- On-board ADC
- Evaluates both push-button and slider-switch on-key options
Applications
Power Management
Product details
Kit Application Type | Power Management - Battery |
Kit Contents | Eval Board MAX77650 |
Silicon Core Number | MAX77650 |
Product Range | - |
Silicon Manufacturer | Maxim Integrated Products |
Application Sub Type | Li-Ion / Polymer Battery Charger |
Other details
Brand | MAXIM INTEGRATED PRODUCTS |
Part Number | MAX77650EVKIT# |
Quantity | Each |
Technical Data Sheet EN |
