Description
Product Overview

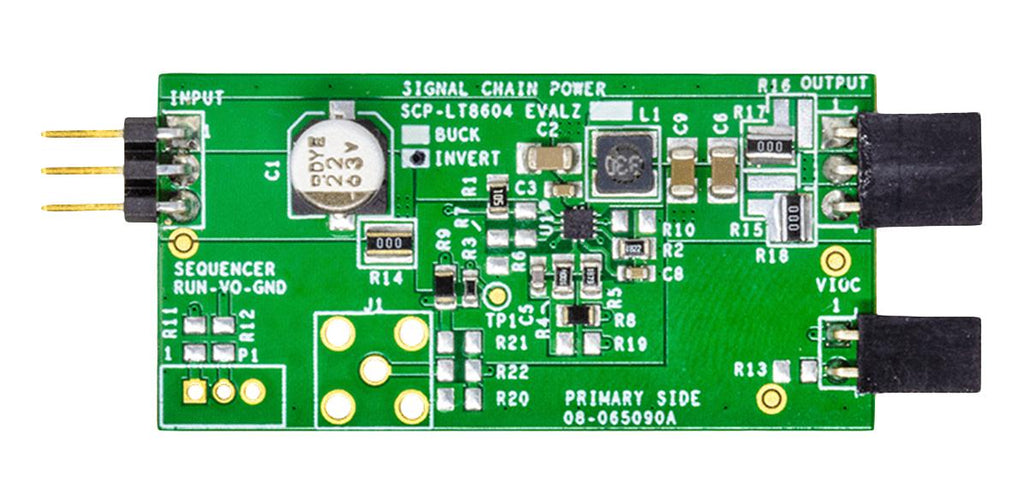

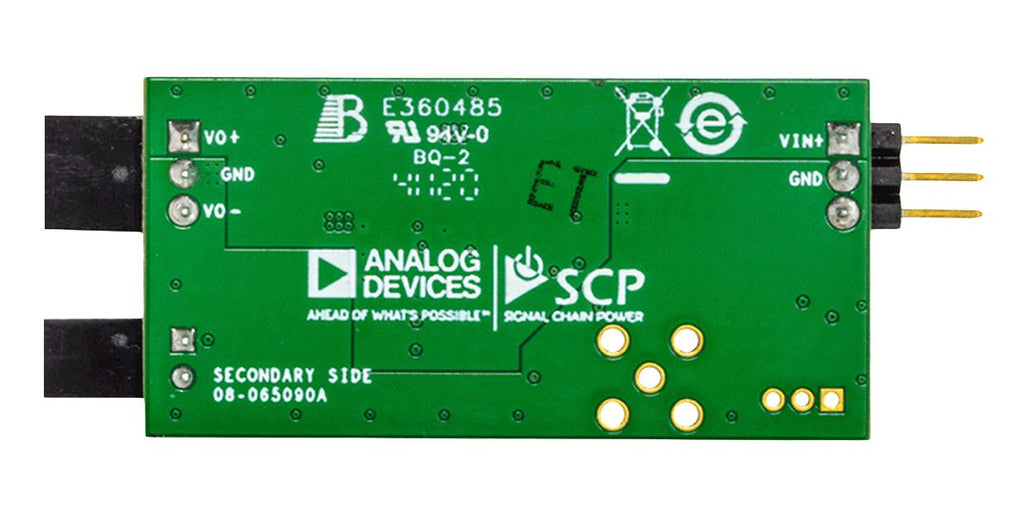

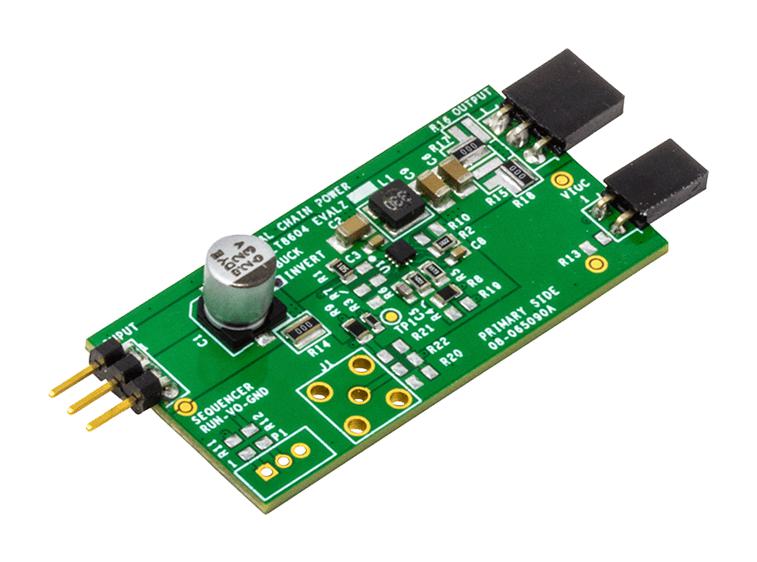

SCP-LT8604C-IEVALZ demonstration circuit is a high efficiency 42V, 120mA synchronous step-down regulator configured as an inverting buck topology for positive to negative DC voltage conversion. Like all boards in the Signal Chain Power series, this board designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely: SCP-INPUT-EVALZ, SCP-OUTPUT-EVALZ, SCP-FILTER-EVALZ, SCP-THRUBRD-EVALZ, SCP-1X2BKOUT-EVALZ, SCP-1X5BKOUT-EVALZ, SCP-5X1-EVALZ. To properly evaluate SCP series demo boards, users will need the SCP configurator companion software. SCP configurator can help users choose the right board and topology for your design.
- Maximum input voltage range from 3.2V to 42V
- Maximum output voltage is resistor programmable from �0.8V to �34V (�5 V default voltage output)
- Switch current limit of 185mA
- LT8604C configured as an inverting buck
- Default switching frequency of 2MHz
- Adjustable switching frequency range from 200KHz to 2.2MHz
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | SCP-LT8604C-IEVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
