Description
Product Overview

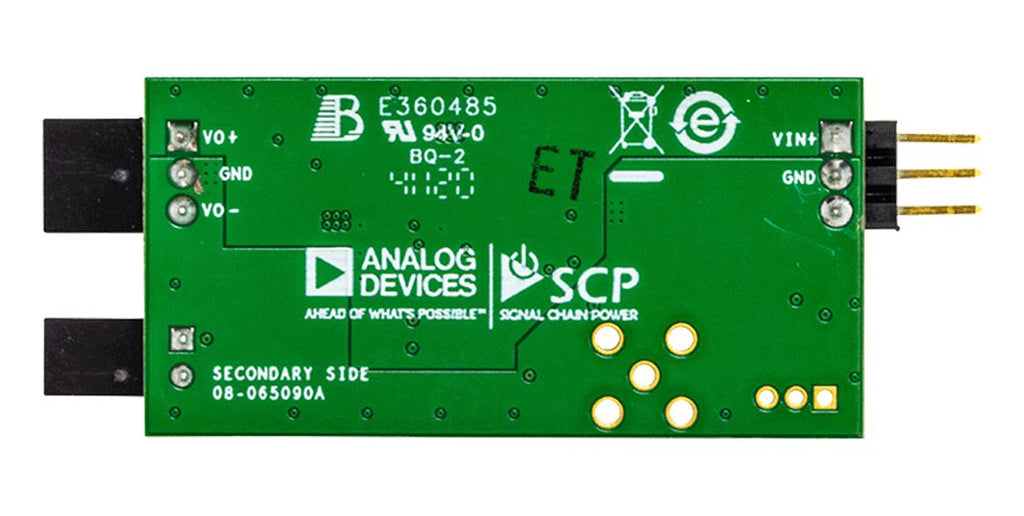

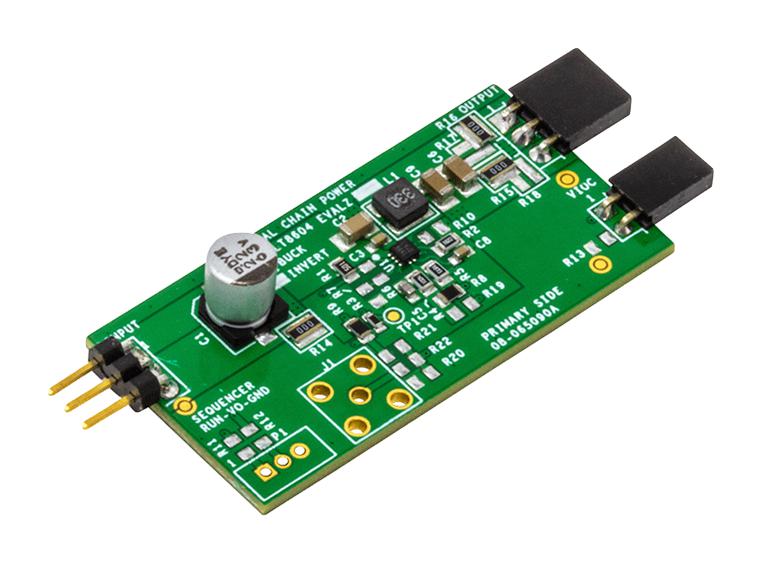

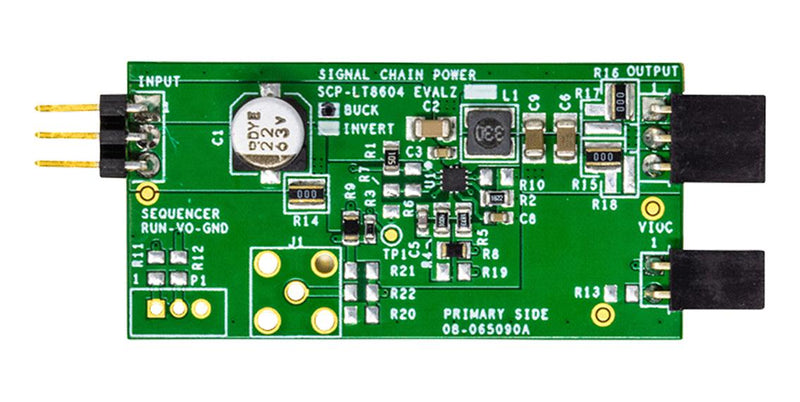

SCP-LT8604C-BEVALZ is a LT8604, signal chain, high efficiency 42V/100mA synchronous step-down regulator evaluation board. Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains.
- Wide input range also allows inversion if using the SCP-LT8604C-IEVALZ-version
- LT8604C in buck configuration
- VIN range from 3.2V to 42V
- VOUT: resistor programmable from 0.8V to 34V (5V default voltage output)
- Maximum output current is 120mA
- Feedback-compatible with VIOC-control linear regulators
- Default switching frequency is 2MHz
- Adjustable switching frequency range from 200kHz to 2.2MHz
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | SCP-LT8604C-BEVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
