| ₹ 14546.62 includes GST and import duties. | |
| B2B customers can avail ₹ 2218.36 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

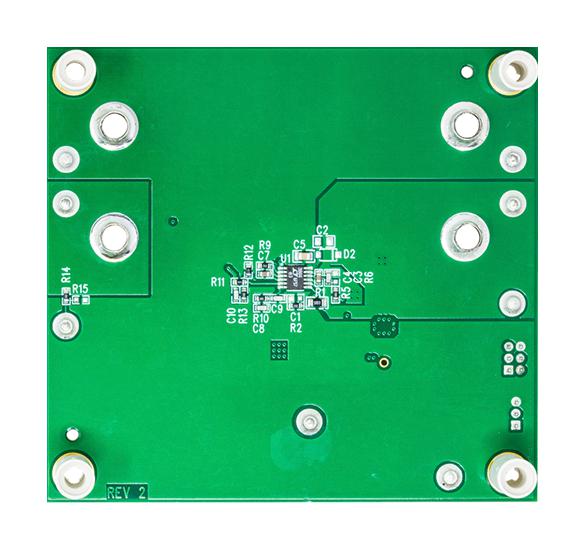

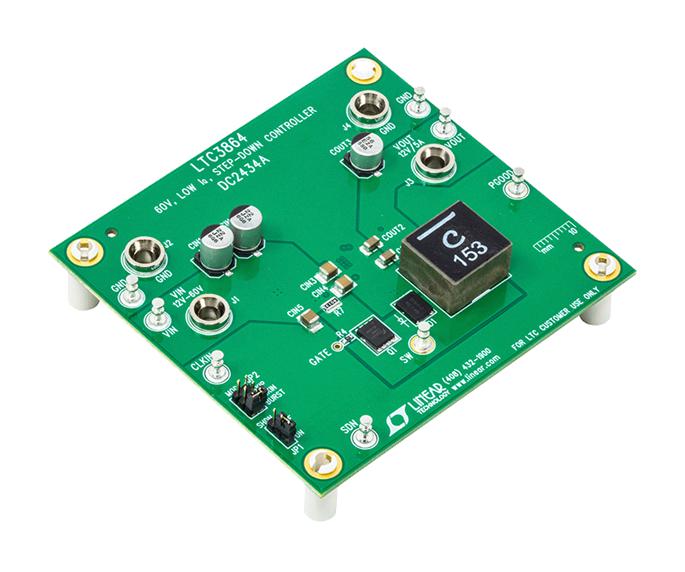

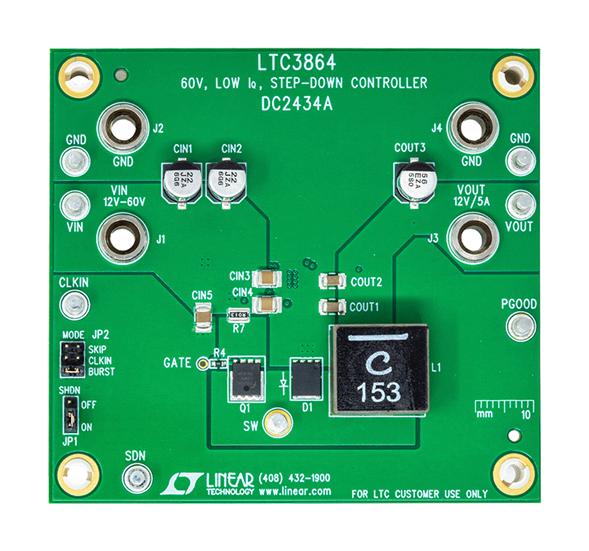

DC2434A demonstration circuit is a high voltage, current mode DC/DC step-down converter featuring the LTC®3864. The board operates from an input range of 6V to 60V and provides a 12V, 5A output when the input exceeds 12V. The PMOSFET architecture allows it to operate seamlessly up to 100% duty cycle and function as a saturated switch below the regulation threshold, down to 6VIN. It operates at 200KHz and may be synchronized to an external clock. A soft-start feature controls output voltage slew rate at start-up, reducing current surge and voltage overshoot. Burst Mode® operation that improves efficiency at light loads can be enabled with a jumper. A power good output signal is provided. This board is suitable for a wide range of automotive, telecom, industrial and other applications.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2434A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14255.69 |
| 3-5 | ₹ 14110.22 |
| 5-10 | ₹ 13819.29 |
| 10+ | ₹ 13528.36 |
Bulk discount will be automatically applied during checkout based on quantity.
